Maker: Blethyn, Theodorus

Year: 1675 c.

Year Range: -

Year Notes:

Manufacturing Location:

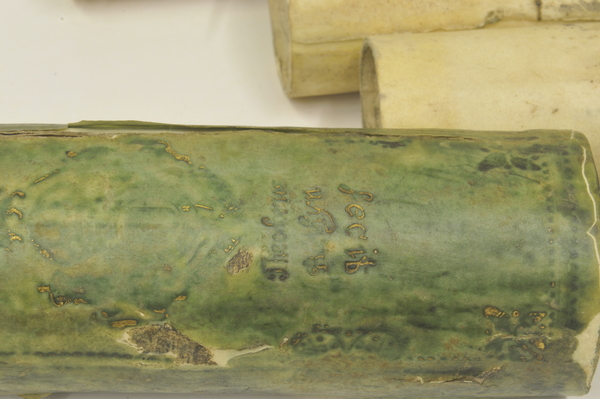

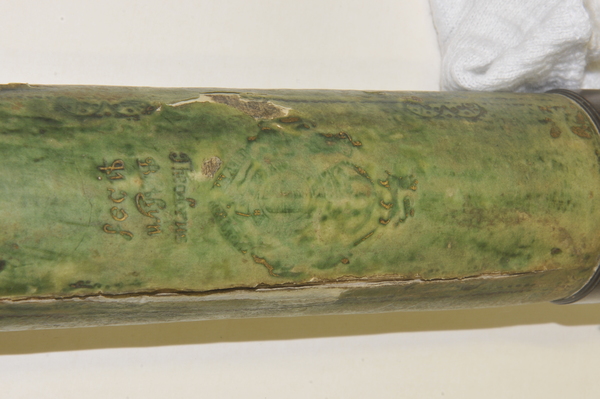

Signature: Theodorus / Blethyn / fecit

Signature Notes:

Stamped on main tub. Text 'fecit' is inverted.

Inscriptions:

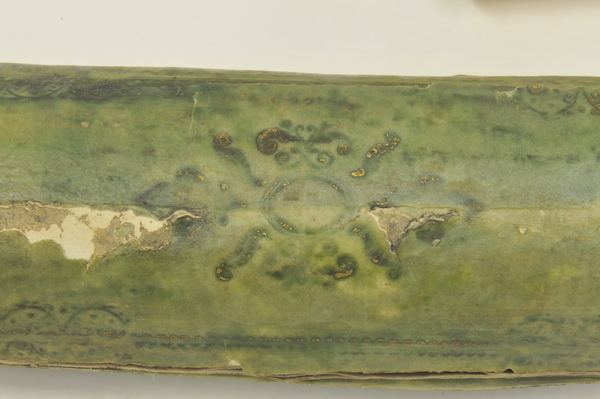

Coat of arms

No stand present.

Collection: Optisches Museum

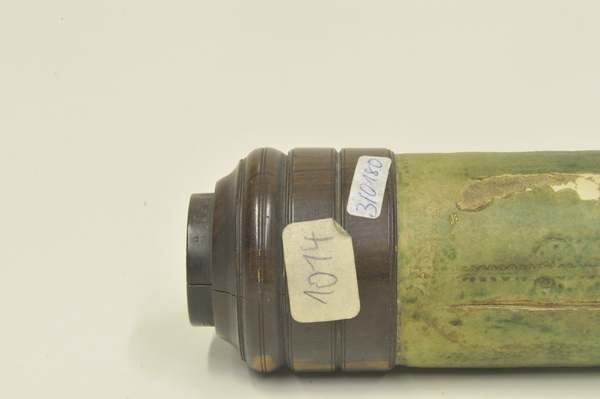

Accession #: 03/0180 1014

Sources:

Public Notes:

Maker known also in Louwman Collection (LC 35), but not listed in Webster Database.

Length (open):

Length (closed):

F-ratio:

Exit pupil:

Object status:

Objective type: singlet

Optical style terrestrial

Physical style

Functional style

Materials: horn, pasteboard, vellum, wood, glass

Drawtube data:

Drawtube notes:

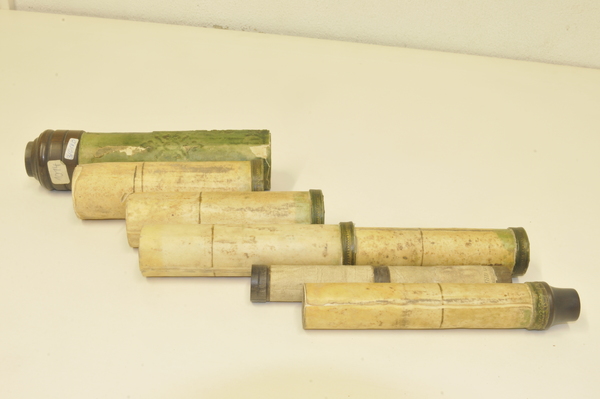

Boxwood stop on starside end of Draw 1 with aperture 15.5 mm (broken in half). Equally-spaced, 3-lens eyepiece insert in Draw 5. Insert has writing (printed English text, prob. form) on outside. Draw measurements: 217 mm (main tube), 101 mm (draw 1), 100 mm (draw 2), 105 mm (draw 3), 83 mm (draw 4), and 100 mm (draw 5).

Objective Data

Eyepieces

Notes:

Jena_5_0180_20150814_093520DSCN0315.MOV
