Maker: Sansedonius, Franc

Year: 1730

Year Range: -

Year Notes:

Manufacturing Location: Naples, Italy

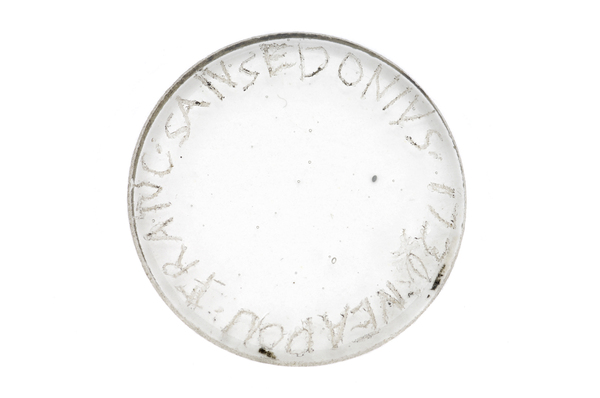

Signature: FRANC· SANSEDONIUS· 1730 NEAPOLI

Signature Notes:

Inscriptions:

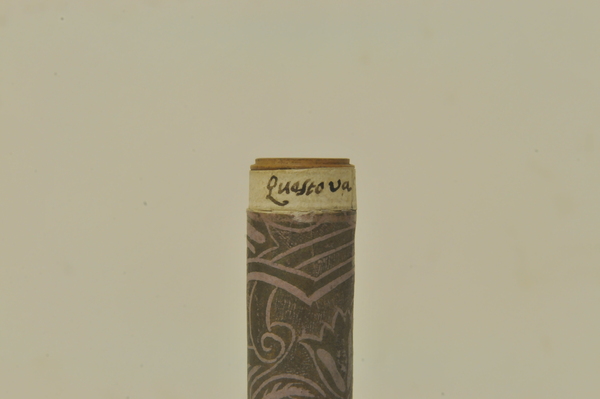

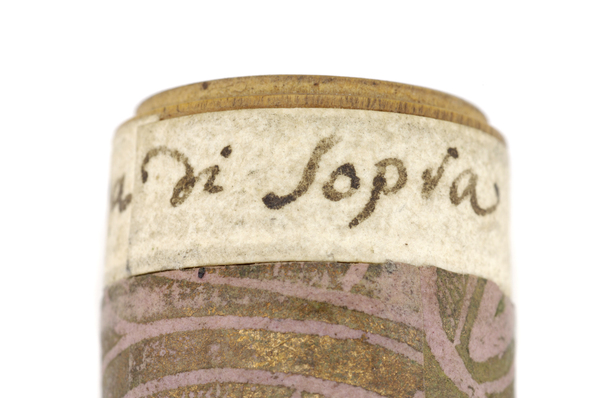

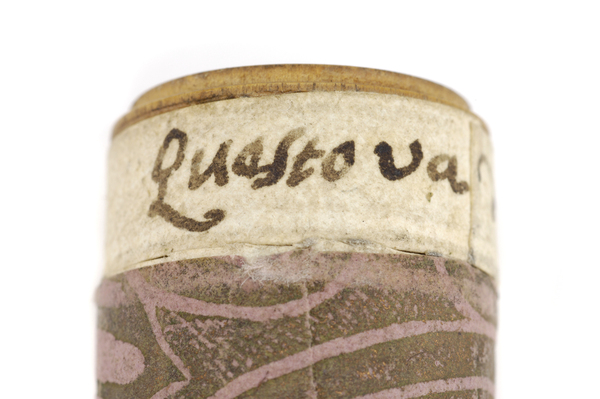

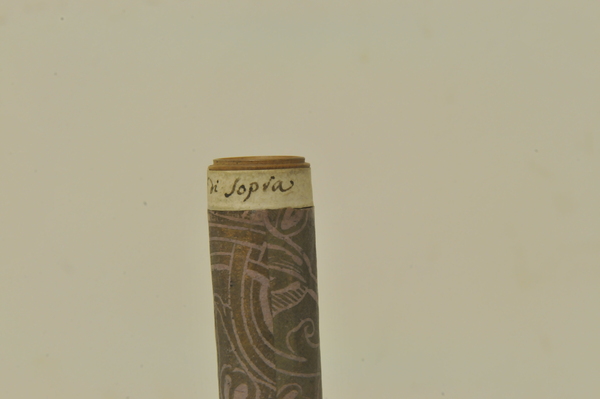

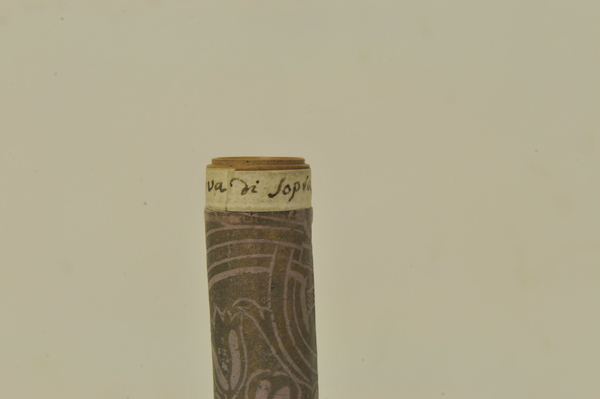

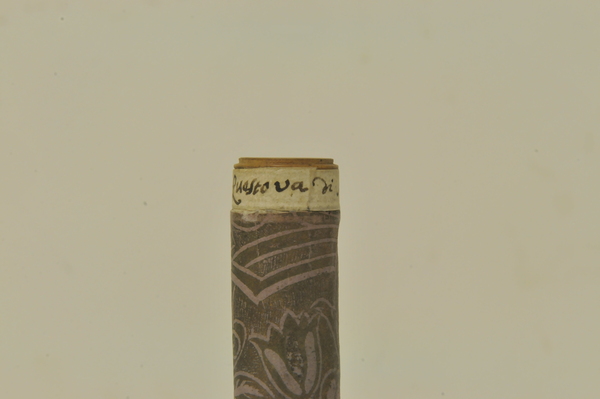

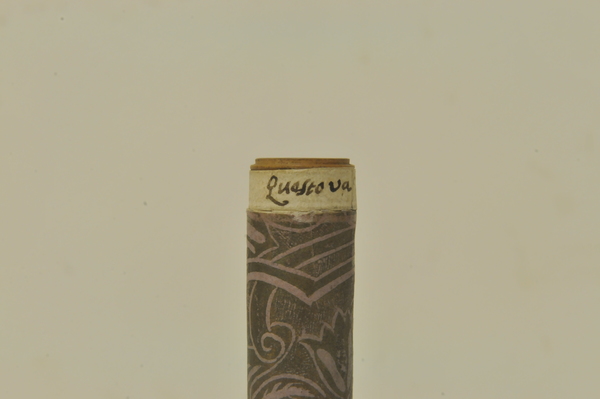

Questo va di sopra [on eyepiece unit]

No stand present.

Collection: National Maritime Museum

Accession #: NAV1551

Sources:

Royal Museums Greenwich. "Non-achromatic telescope". http://collections.rmg.co.uk/collections/objects/43763.html. [Accessed: June 2016].

Public Notes:

Museum Notes:

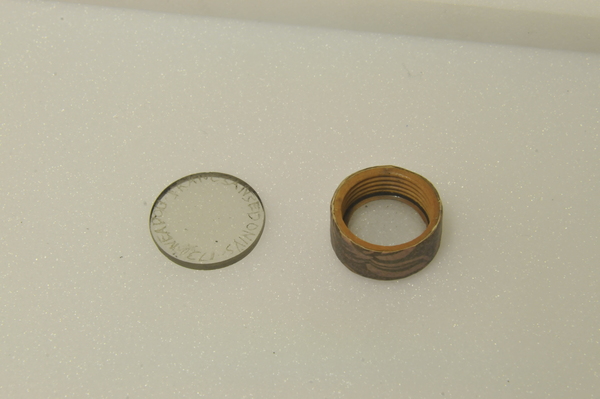

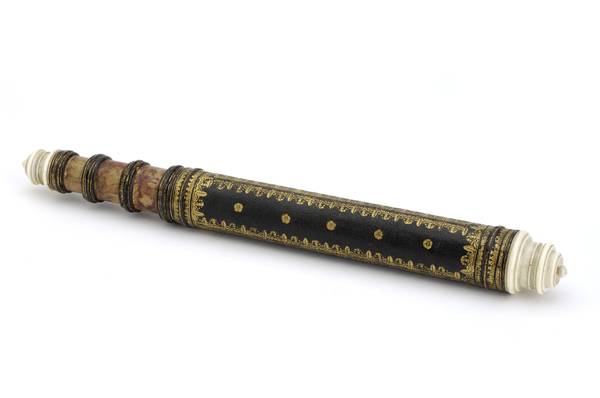

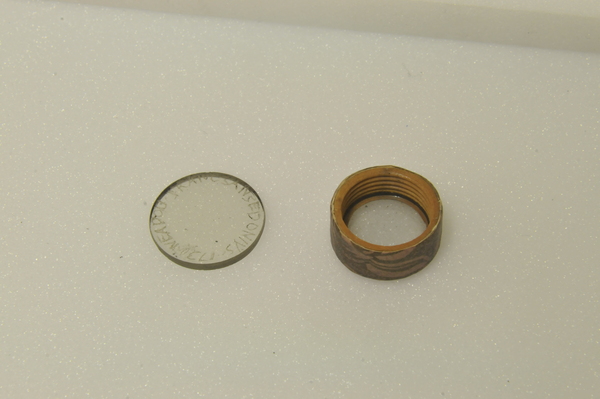

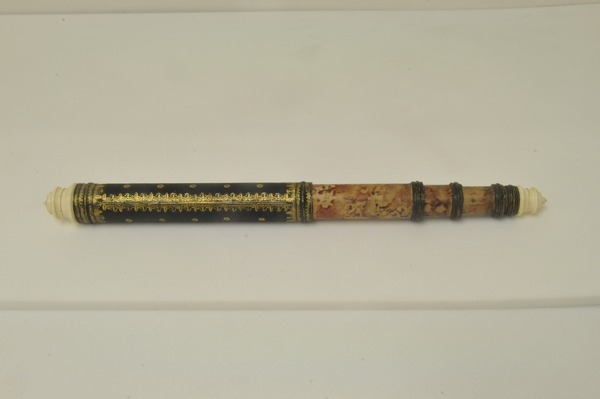

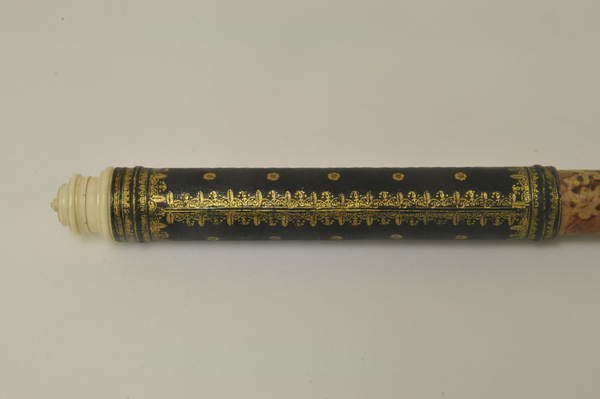

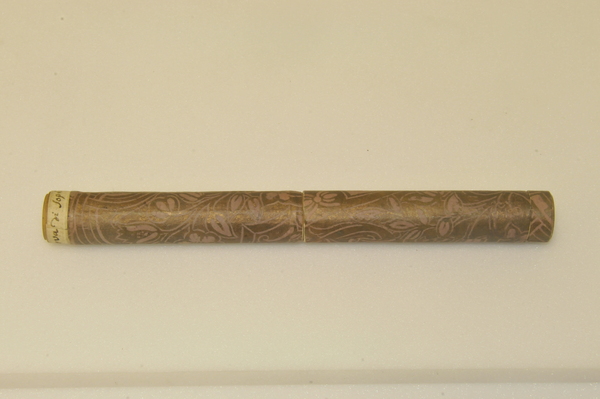

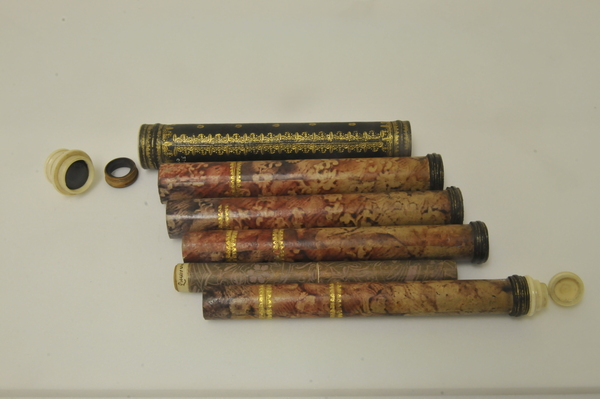

"The barrel of this non-achromatic telescope is covered in sharkskin and is decorated with gold tooling. There are four draw tubes, each covered in marbled paper. Gold-tooled stop lines around the draw tubes indicate the optimum working length of the telescope. The other fittings and screw-on lens caps are made of ivory. Two inscriptions appear on the telescope. The maker's details are engraved on the objective lens: 'FRANC SANSEDONIUS. 1730 NEAPOLI'. In addition, the words 'Questo va di sopra', meaning 'this end up', are handwritten on the optics combination, presumably to ensure that it is assembled the correct way round" (Royal Museums Greenwich).

PROJECT NOTES 2016:

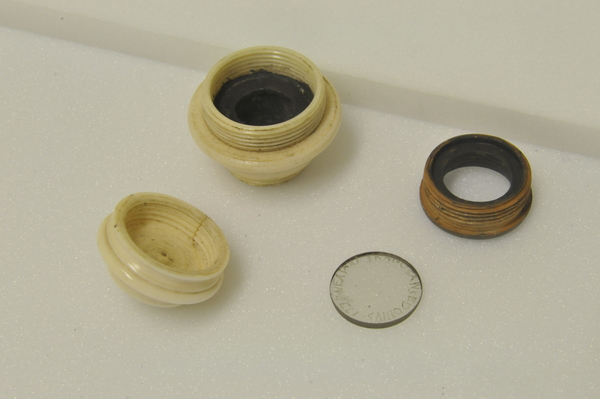

Very nicely made and tooled. Tooled extension marks. Elegant instrument. Ivory cells, with olive wood screw in fitting. Signed on objective, with date.

Provenance:

Caird Collection

Length (open): 828

Length (closed): 273

F-ratio:

Exit pupil:

Object status:

Objective type: unconfirmed

Optical style

Physical style

Functional style

Materials: ivory, leather, paper, sharkskin, wood, glass

Drawtube data:

Drawtube notes:

Objective Data

Eyepieces

Notes:
