Unknown, 1650 c.
Coll. Willach

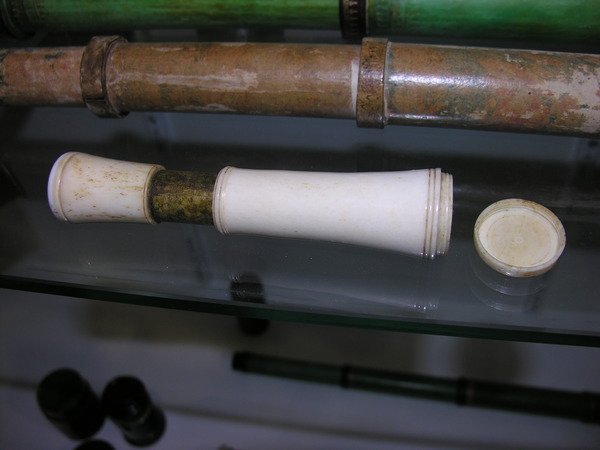

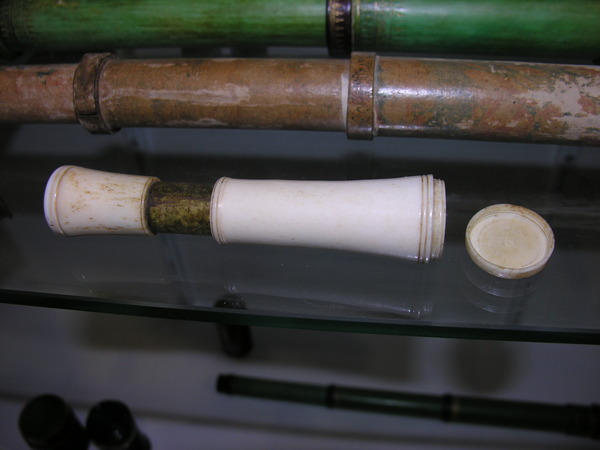

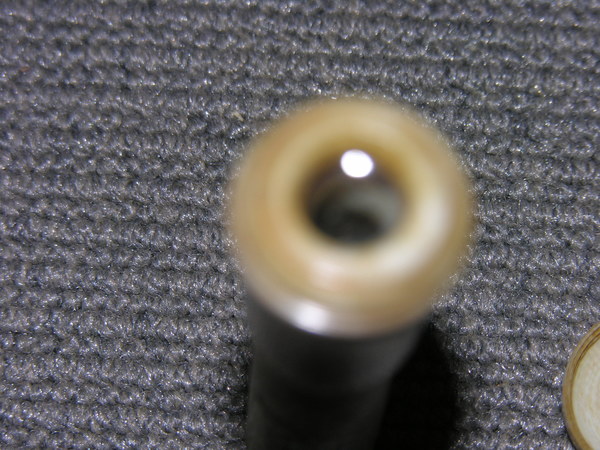

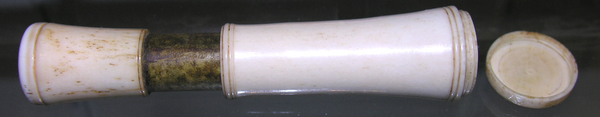

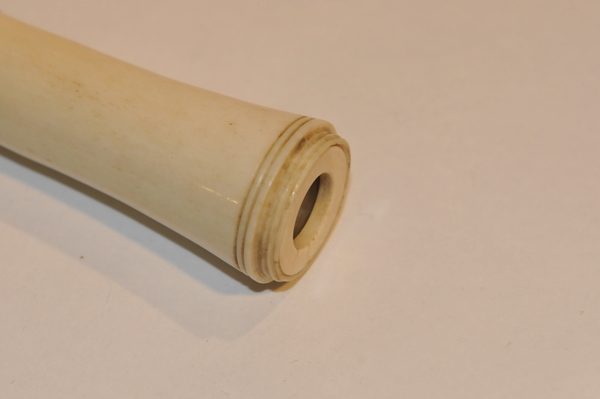

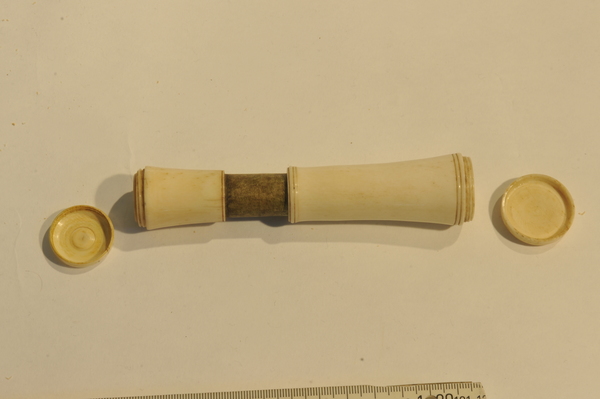

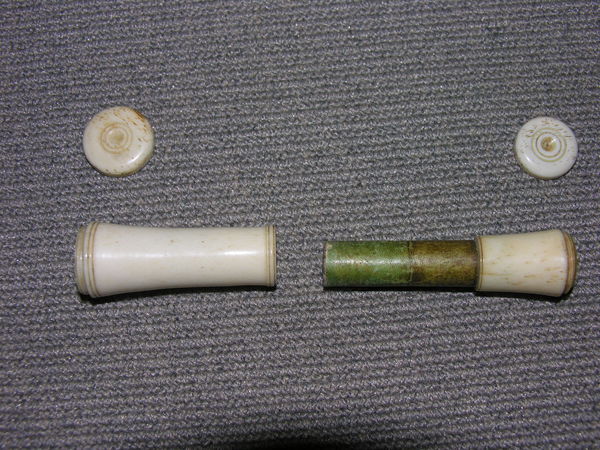

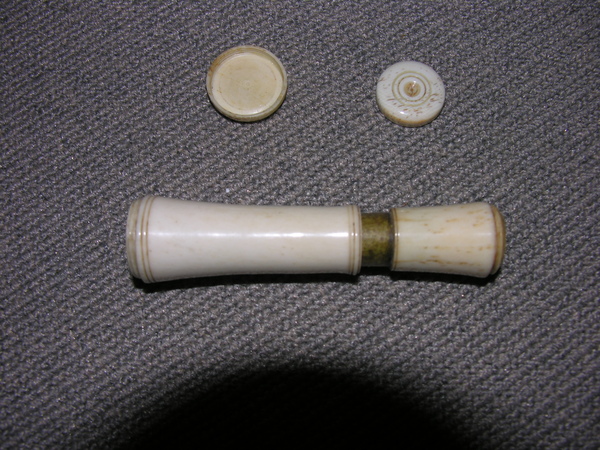

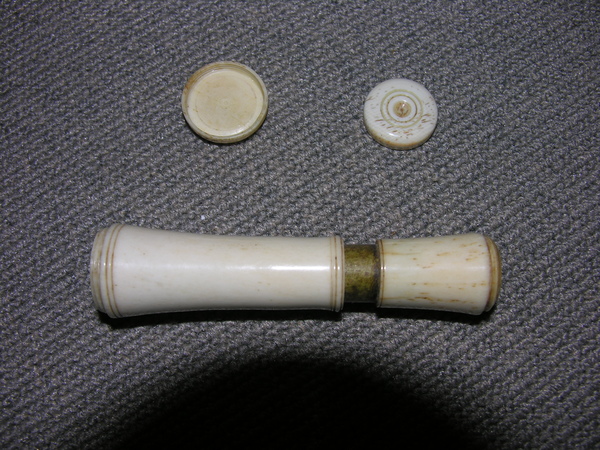

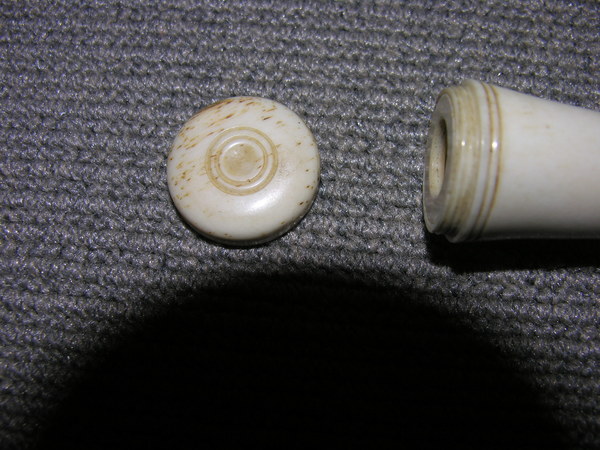

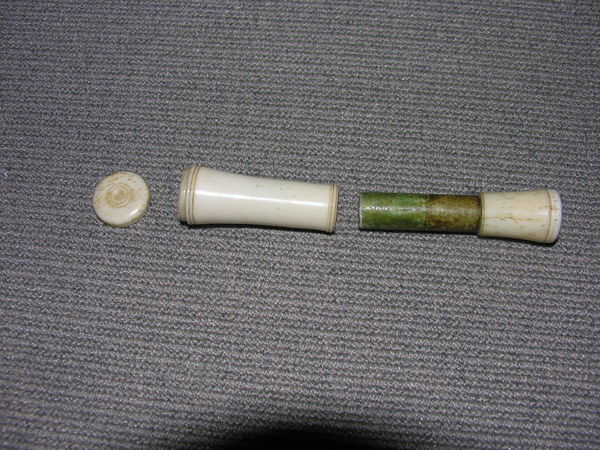

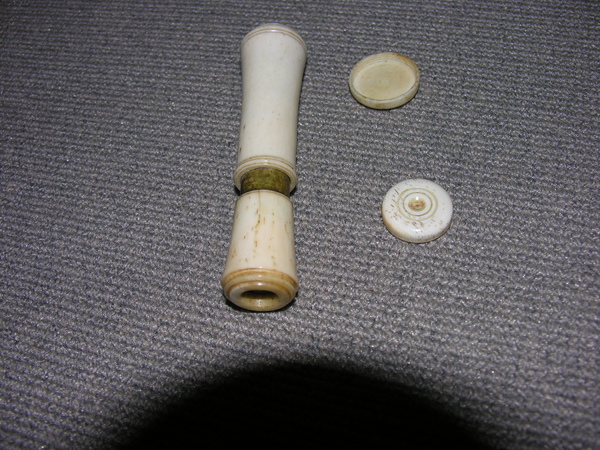

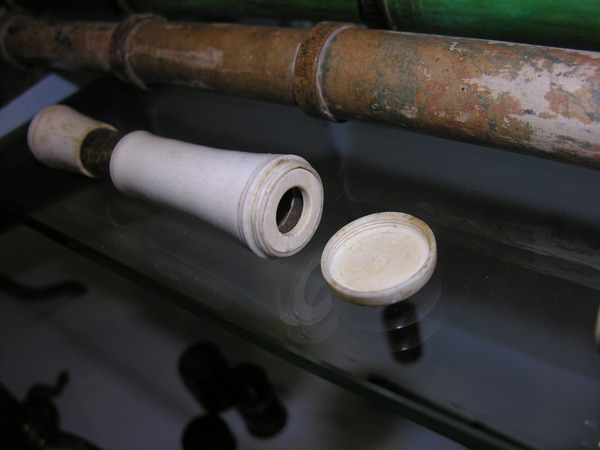

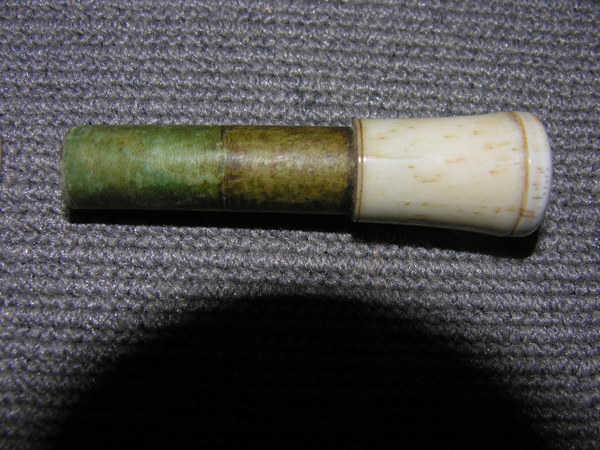

photo - whole telescope

Basic Info

Maker: Unknown

Year: 1650 c.

Year Range: -

Year Notes:

Manufacturing Location:

Signature:

Signature Notes:

Inscriptions:

No stand present.

Collection: Coll. Willach

Accession #: RW 102 [16102] [2013 06] [2023]]

Sources:

Project investigation

Public Notes:

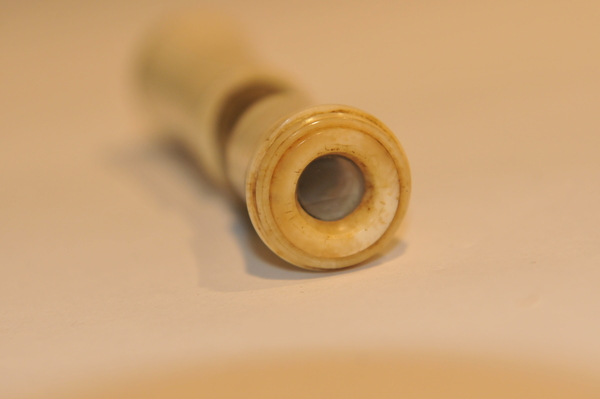

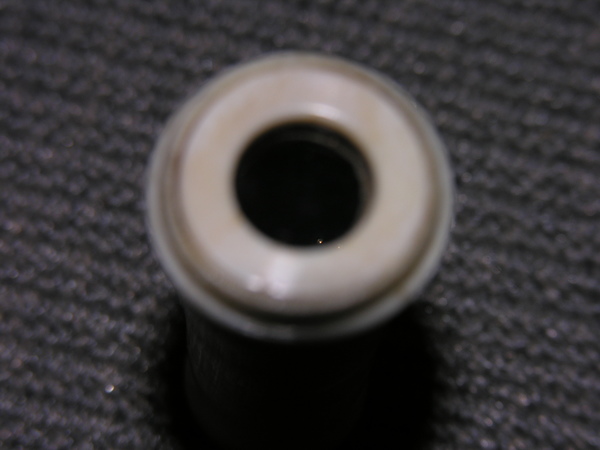

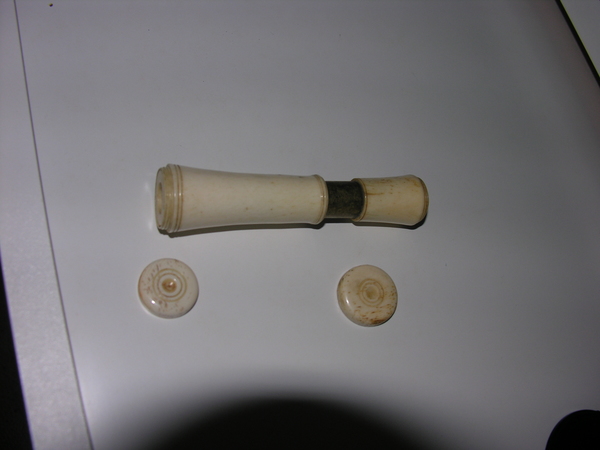

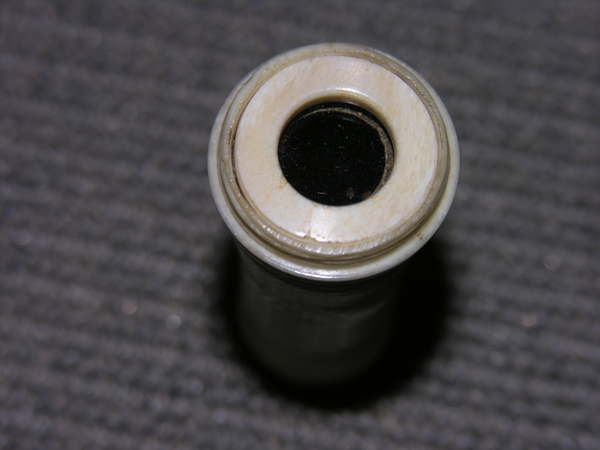

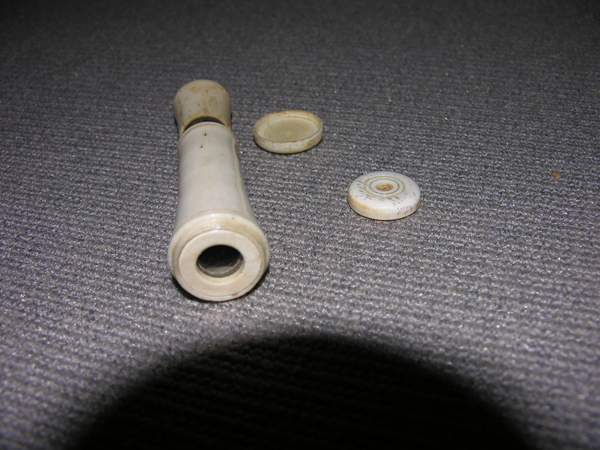

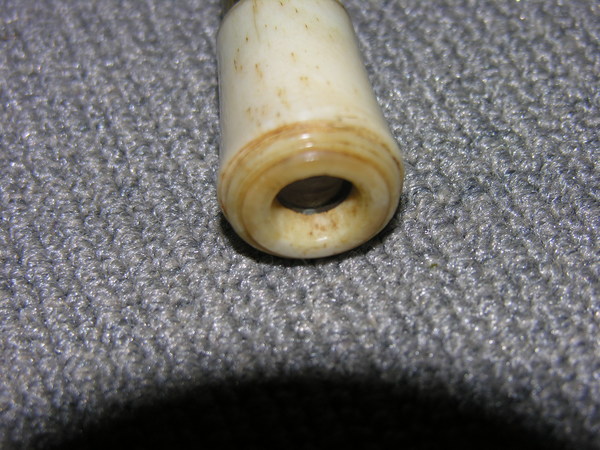

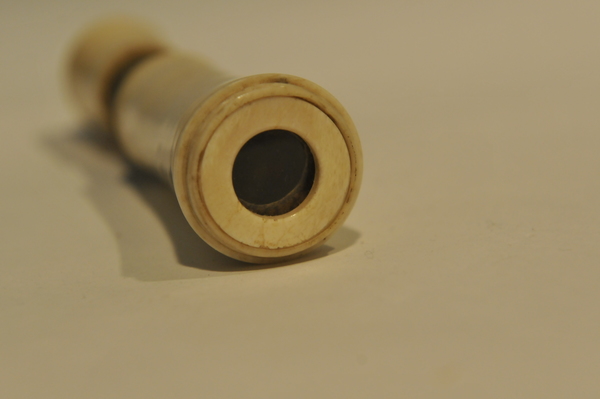

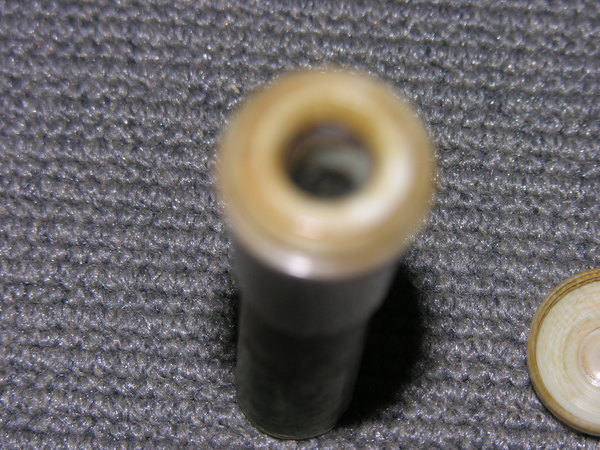

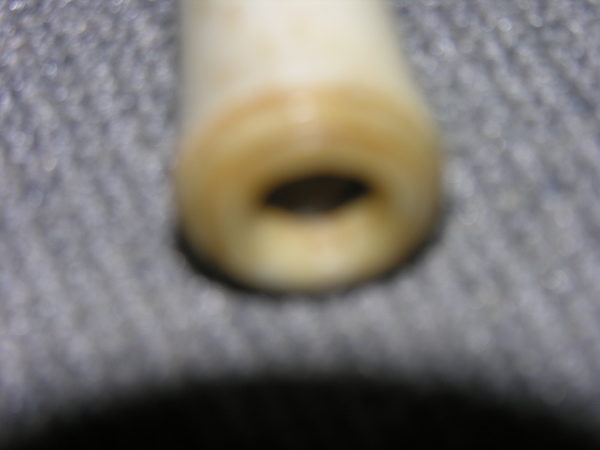

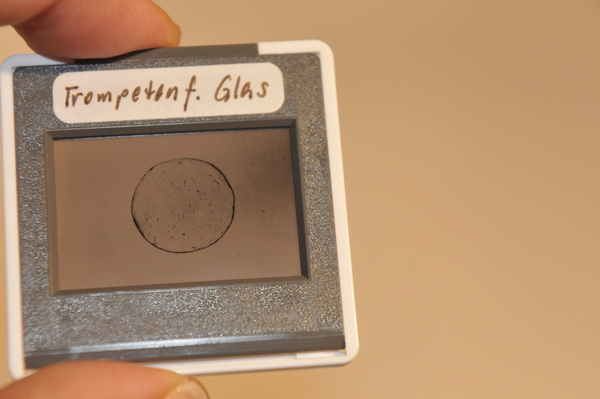

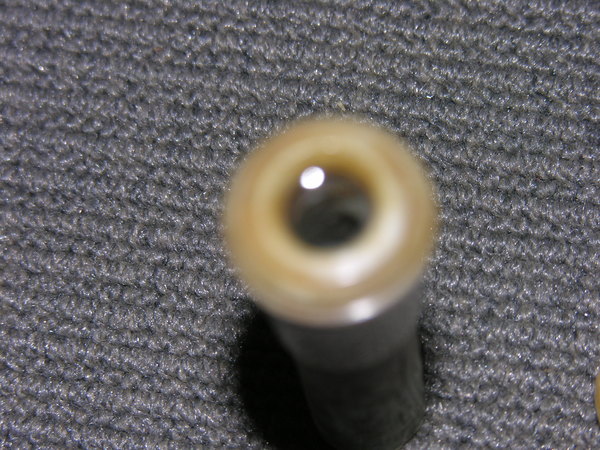

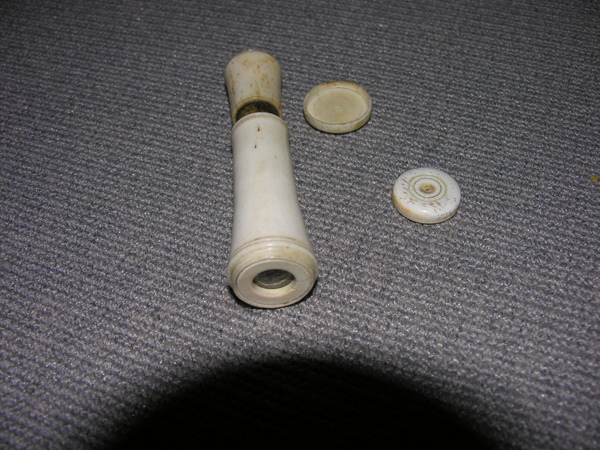

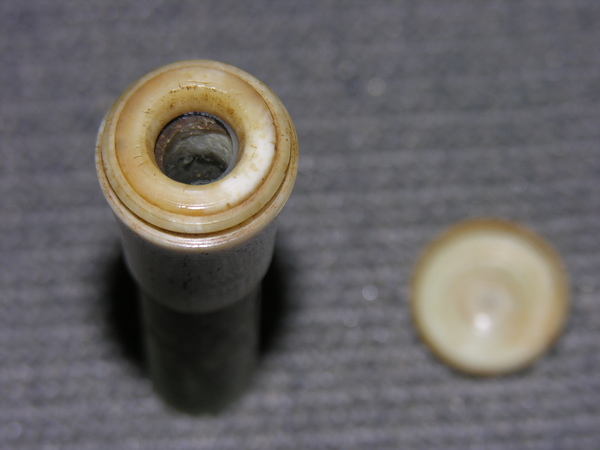

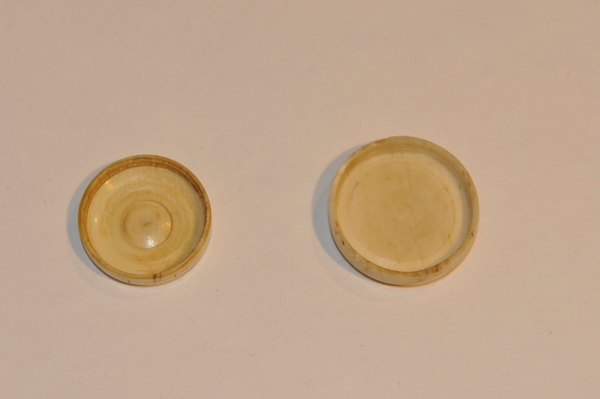

Trumpet shaped bone/ivory (slightly flared at objective end) with a cardboard middle component. The lens is held in place with a bone ring. Galilean style with a small field of view. Eyepiece f = -40 mm, free aperture 10 mm. Objective f = 160 mm, free aperture 12 mm (diameter 21 mm).

Length (open): 120

Length (closed):

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: singlet

Optical style galilean

Physical style pocket

Functional style

Materials: bone, ivory, paper, glass
