Mann & Ayscough, 1744
Coll. Willach

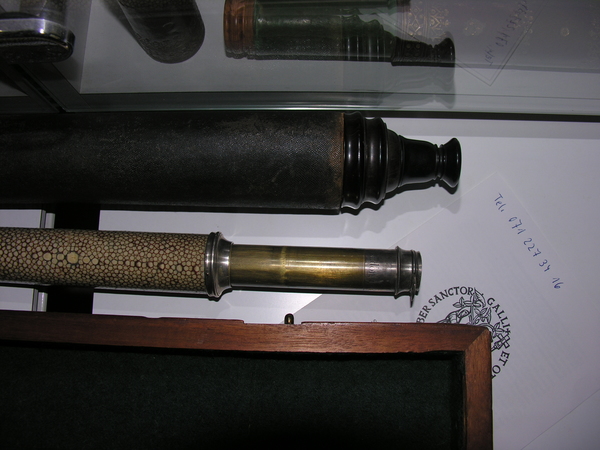

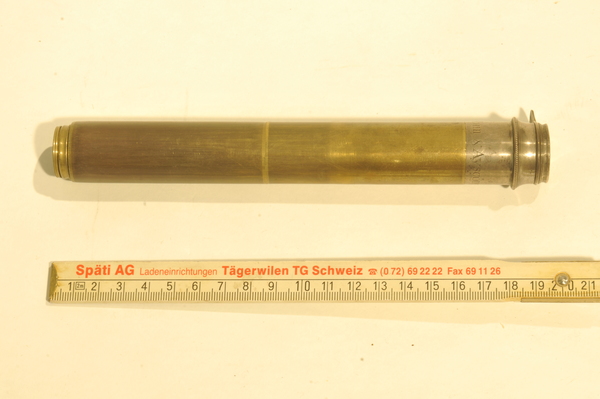

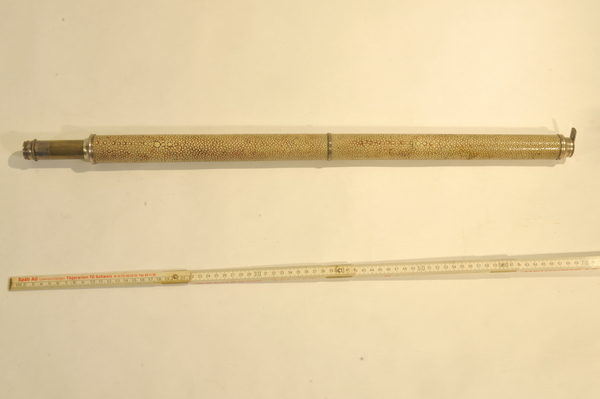

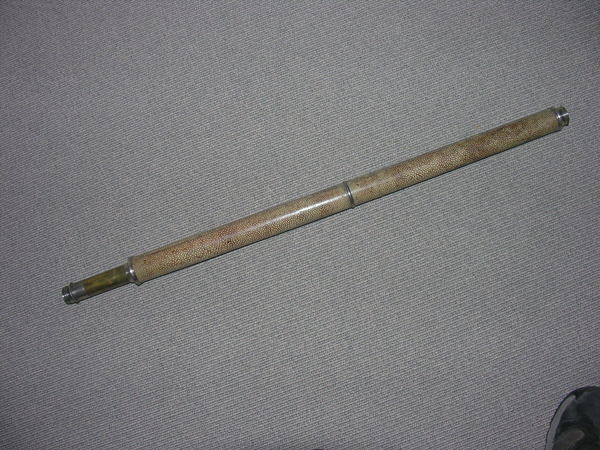

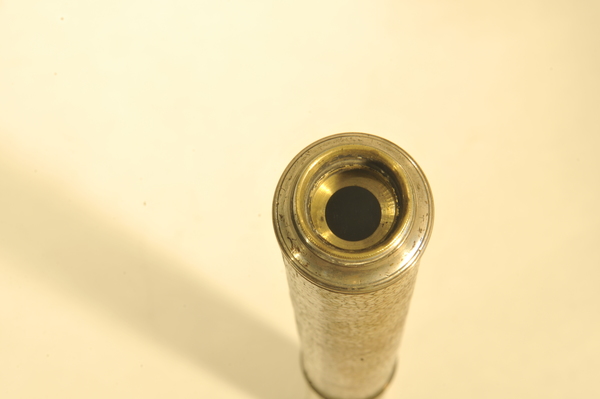

photo - whole telescope

Basic Info

Maker: Mann & Ayscough

Year: 1744

Year Range: -

Year Notes:

Manufacturing Location: London, England

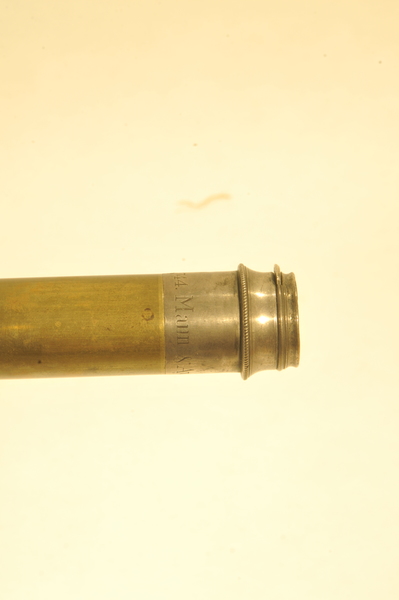

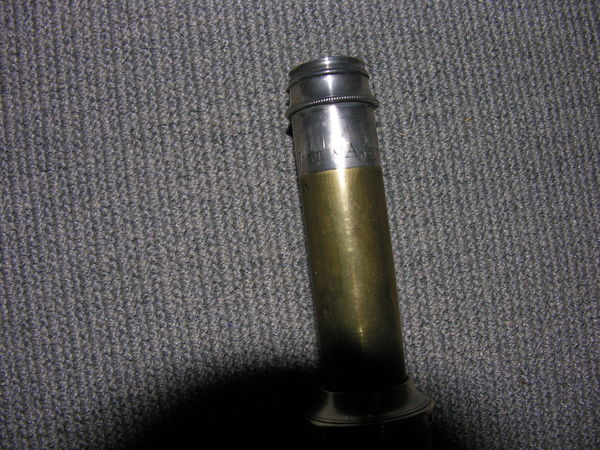

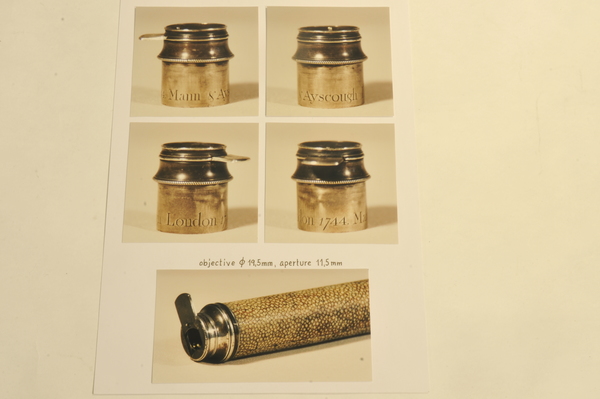

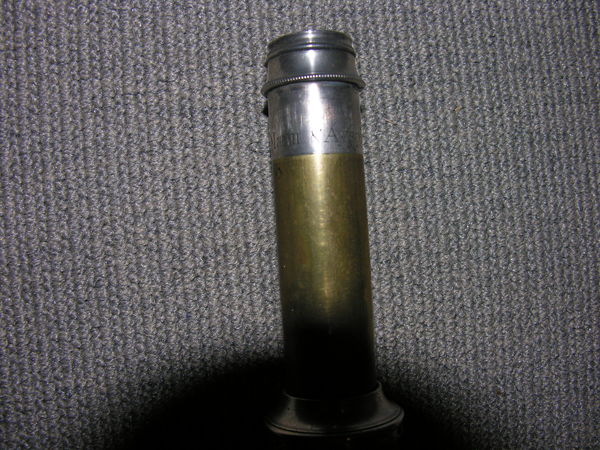

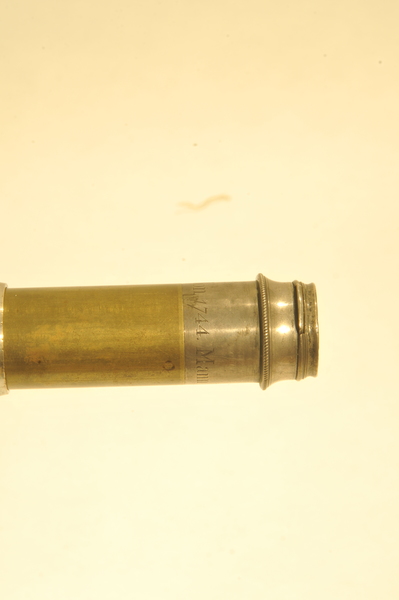

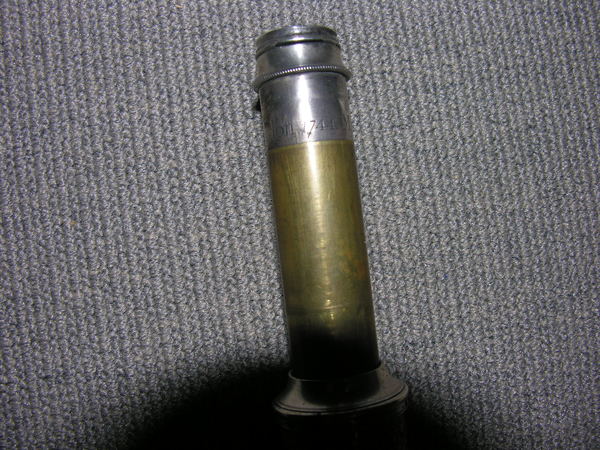

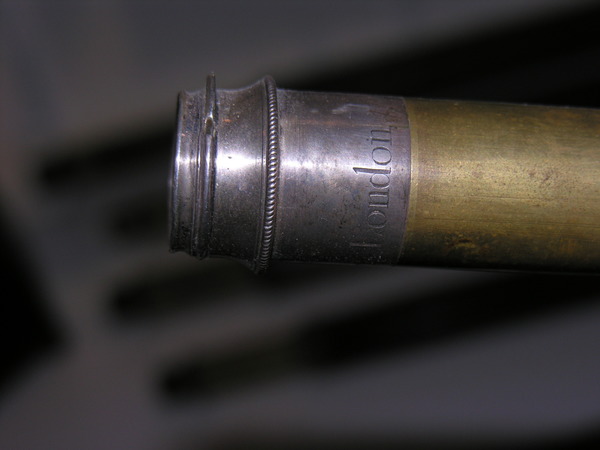

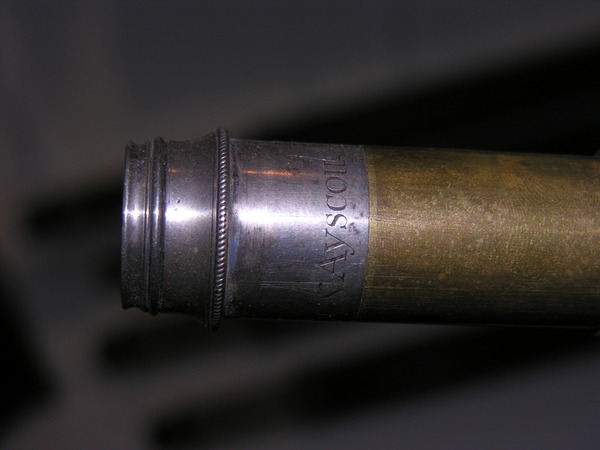

Signature: Mann & Ayscough London 1744

Signature Notes:

Inscriptions:

No stand present.

Collection: Coll. Willach

Accession #: RW 147 [17147] [2006 3] [2023]

Sources:

Project investigation

Public Notes:

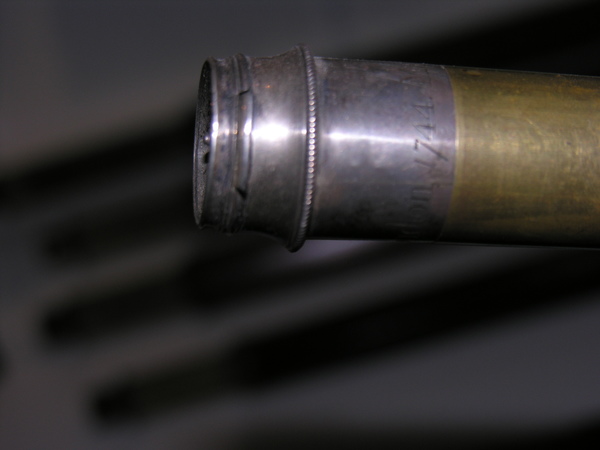

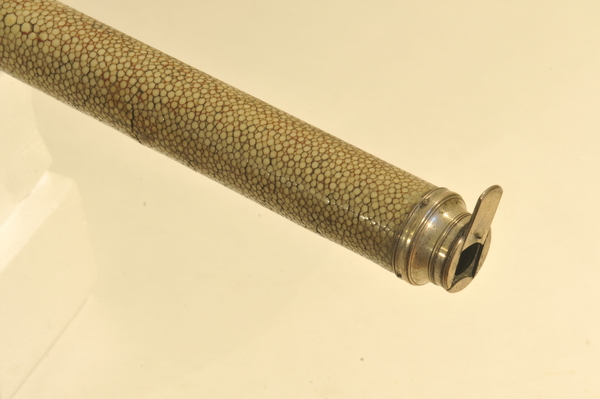

Galuchat (rayskin shaved and colored with red lead oxide rouge). Non-achromatic telescope with silvered end rings.

Length (open): 680

Length (closed):

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: singlet

Optical style

Physical style

Functional style

Materials: brass, glass, silver, shagreen

Optical/Lab Data

Drawtube data:

Drawtube notes:

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1						19.50	11.50

Eyepieces

Notes:
