Unknown, 1650 c.+10
Coll. Willach

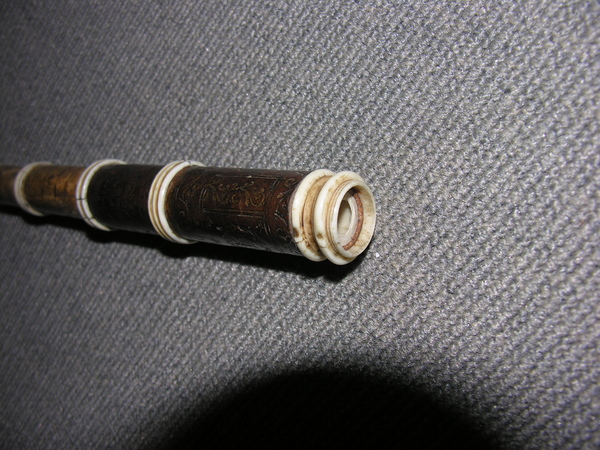

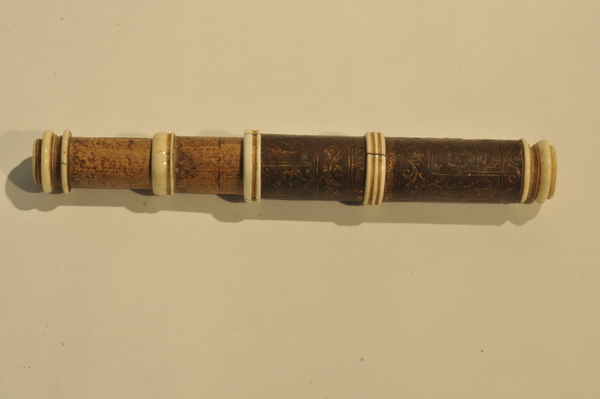

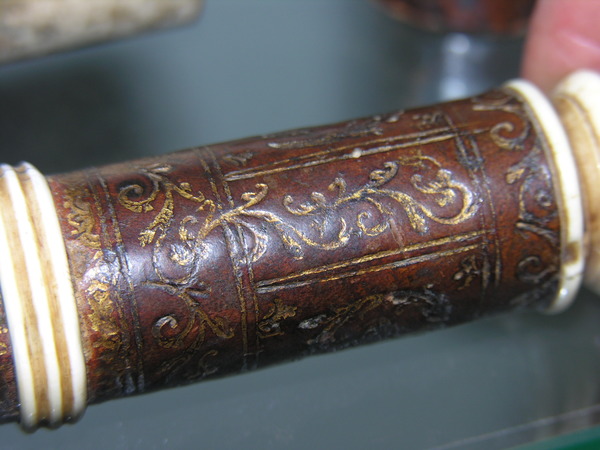

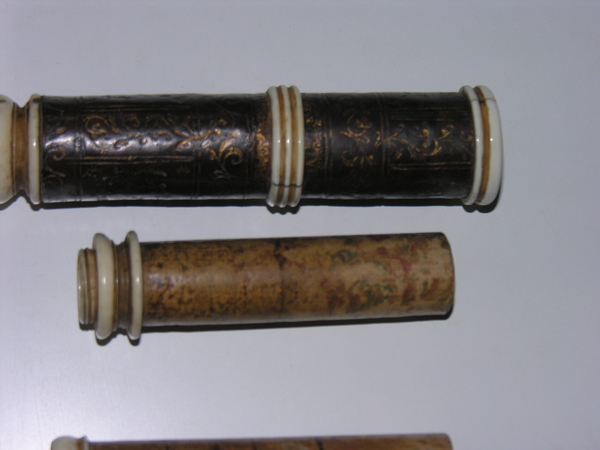

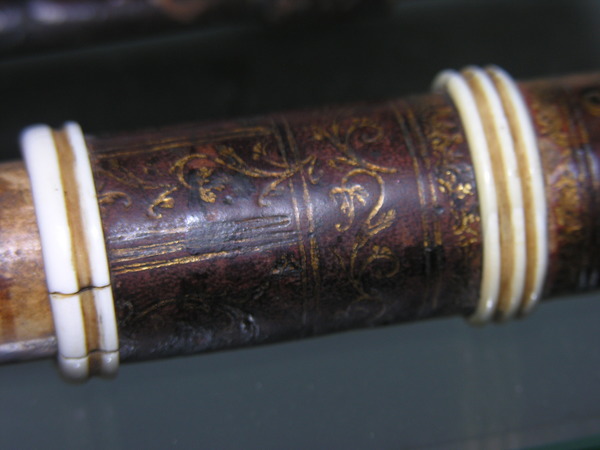

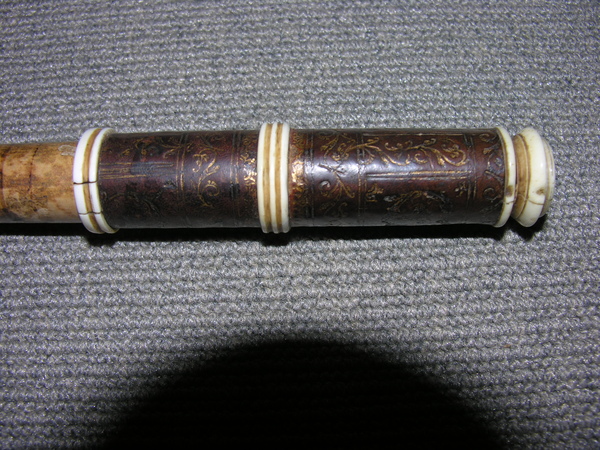

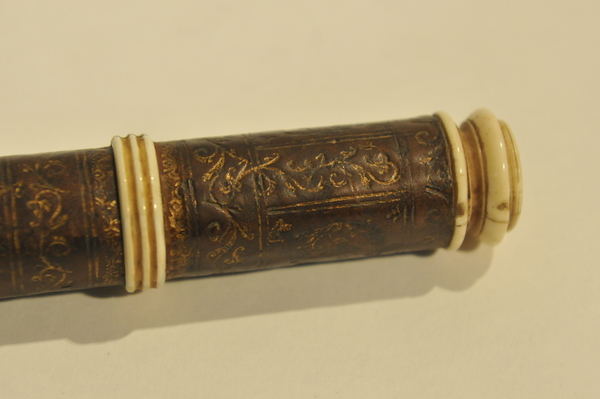

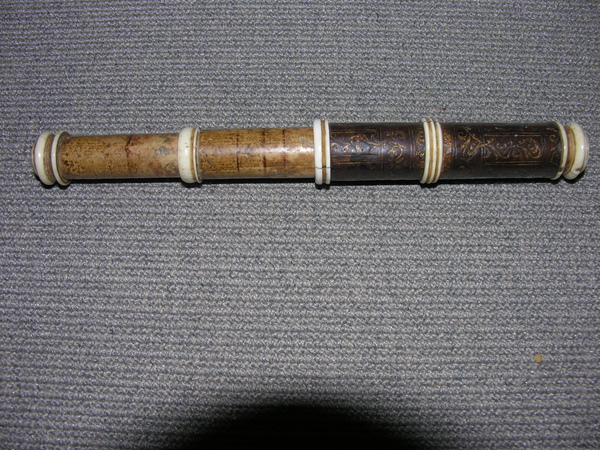

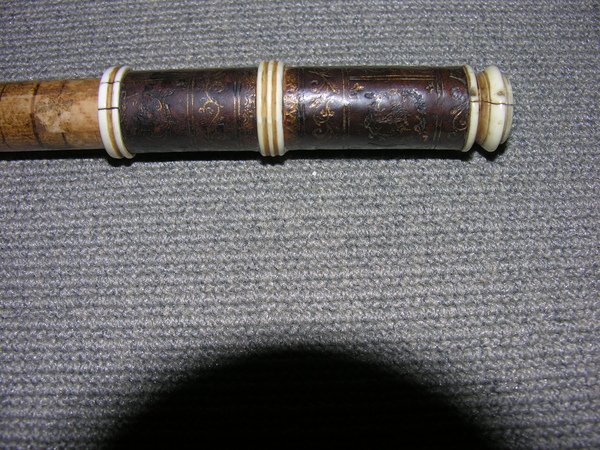

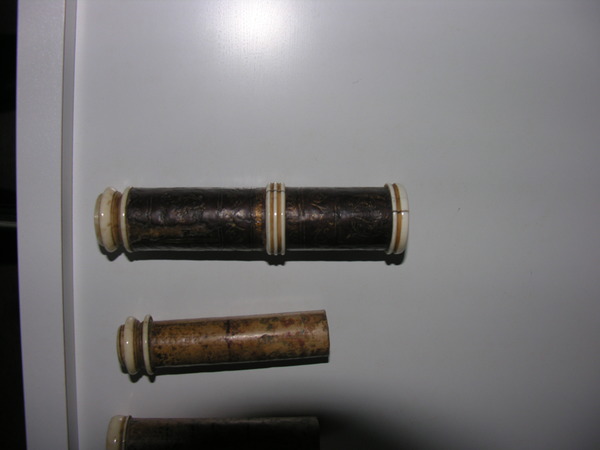

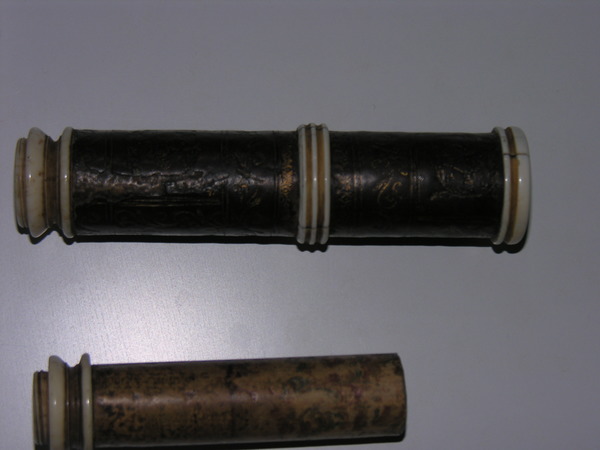

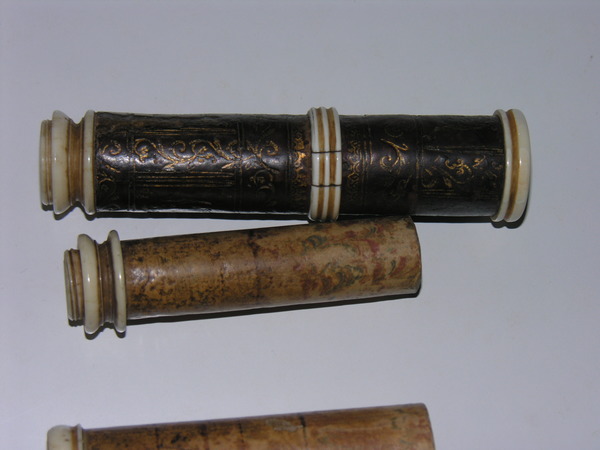

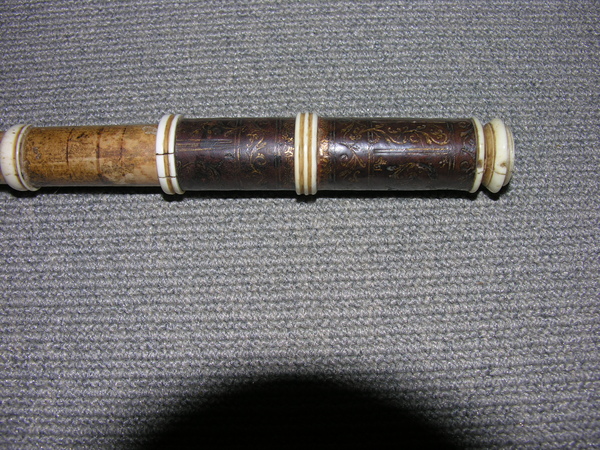

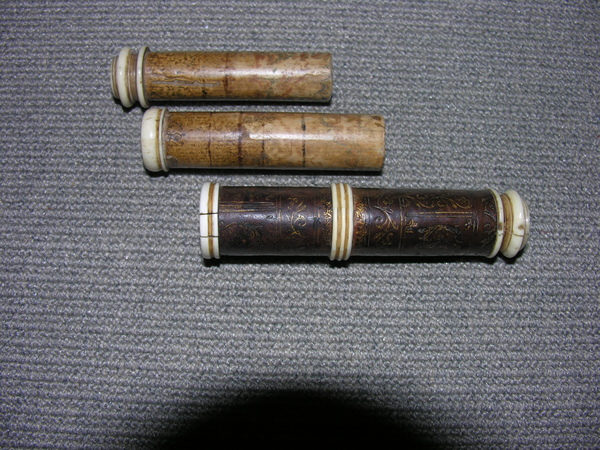

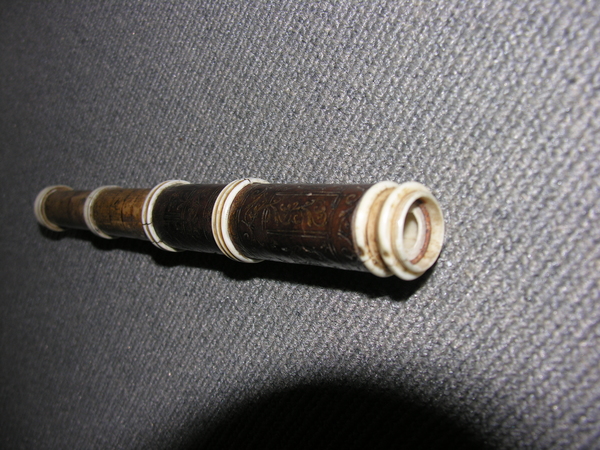

photo - whole telescope

Basic Info

Maker: Unknown

Year: 1650 c.+10

Year Range: -

Year Notes:

Manufacturing Location: Italy

Signature:

Signature Notes:

Inscriptions:

No stand present.

Collection: Coll. Willach

Accession #: RW 150 [16150] [2013 3] [2023]

Sources:

Project investigation

Public Notes:

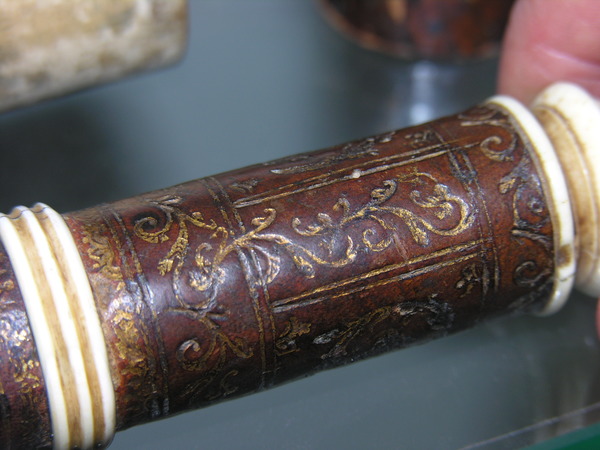

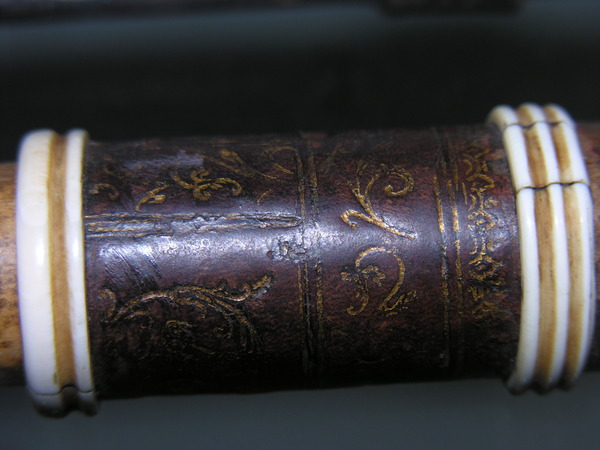

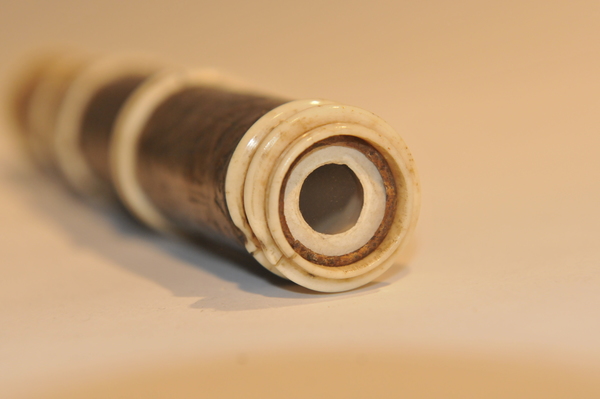

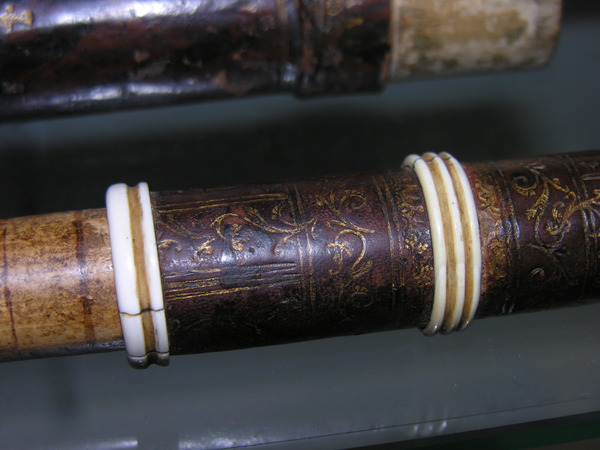

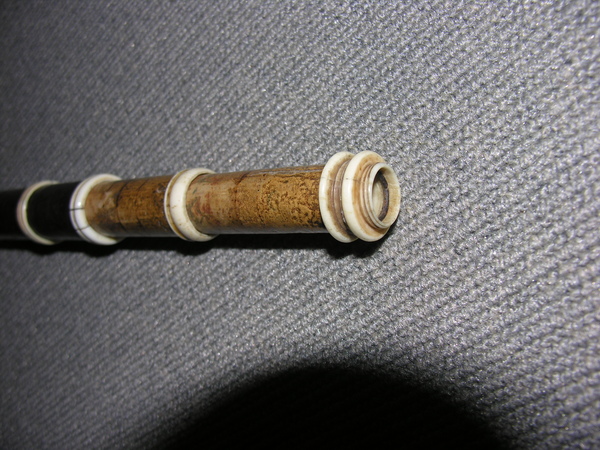

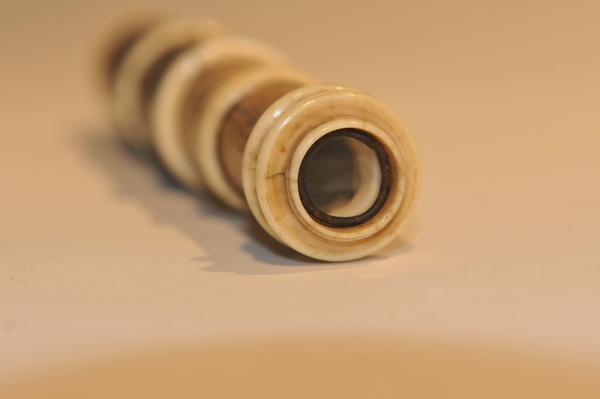

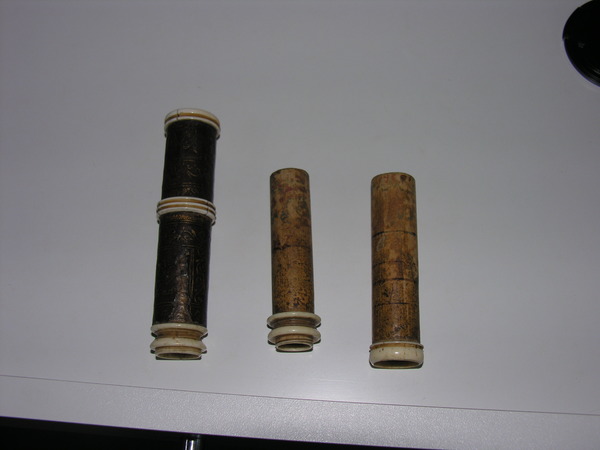

Main draw and tubes are made of wood veneer with small ivory rings, marbled paper, and inverted tooling similar to Adler M-421. Later marbled paper is less fine than mace Ruette. The end rings are ivory. Objective lens is held in by spring, and paper gasket. Objective lens is plane-convex with a diameter of 19 mm and a free aperture of 10 mm, mag. 4x. The ocular is plane-concave.

Length (open): 205

Length (closed): 120

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: singlet

Optical style

Physical style

Functional style

Materials: paper, glass, ivory, pasteboard, gold leaf

Optical/Lab Data

Drawtube data:

Drawtube notes:

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1						19.00	10.00
