Unknown, 1675 c.+25
Adler Planetarium and Astronomy Museum


photo - whole telescope

Basic Info

Maker: Unknown

Year: 1675 c.+25

Year Range: -

Year Notes:

Manufacturing Location: Italy

Signature:

Signature Notes:

Inscriptions:

No stand present.

Collection: Adler Planetarium and Astronomy Museum

Accession #: M-422a

Sources:

Project investigation

Public Notes:

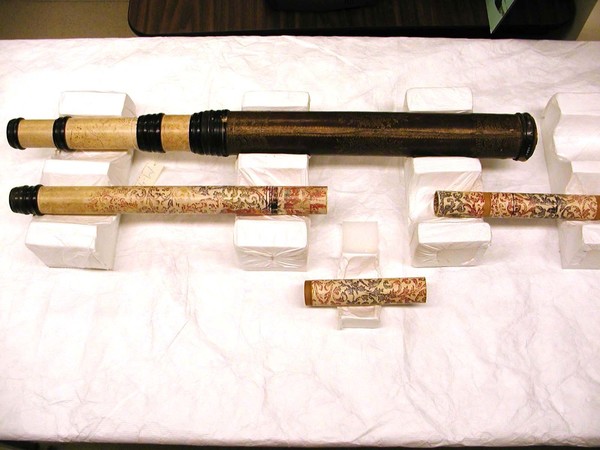

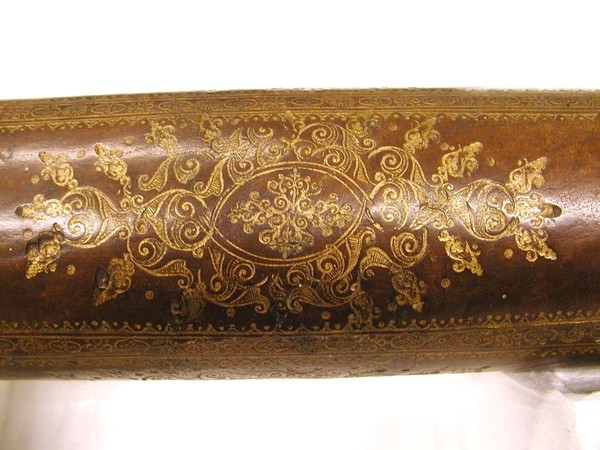

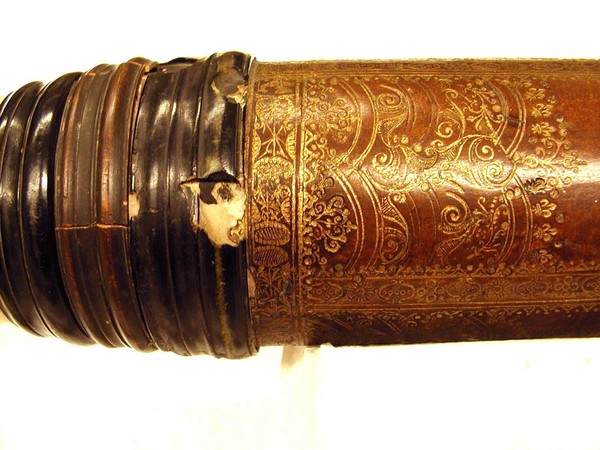

Main tube is covered in brown leather with gold tooling. There are many (11?) draw tubes with floral decorations. The objective lens is missing.

Length (open): 3200

Length (closed): 690

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: singlet

Optical style

Physical style

Functional style

Materials: leather, glass, horn, pasteboard, vellum, wood, gold tooling

Optical/Lab Data

Drawtube data:

Drawtube notes:

Objective Data

Eyepieces

Notes:

Eyepiece 1

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	81.40
Lens 2	91.70
Lens 3

Additional Photos/Documents

m-422A_copy1

m-422A_copy

m-422a.pdf
