Unknown
Adler Planetarium and Astronomy Museum

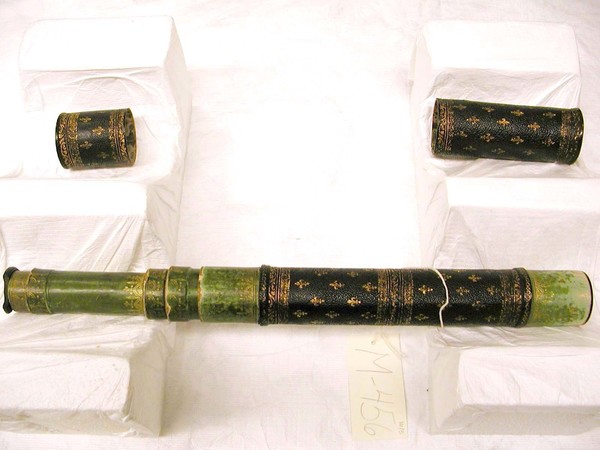

photo - whole telescope

Basic Info

Maker: Unknown

Year:

Year Range: 1675-1750

Year Notes:

Manufacturing Location: France

Signature:

Signature Notes:

Inscriptions:

No stand present.

Collection: Adler Planetarium and Astronomy Museum

Accession #: M-456

Sources:

Project investigation

Public Notes:

Similar to M-422. Objective of dubious origin. Four draw tubes.

Length (open):

Length (closed): 317

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: singlet

Optical style

Physical style spyglass

Functional style

Materials: wood, shagreen, glass, rayskin, pasteboard, vellum, leather, gold tooling

Optical/Lab Data

Drawtube data:

Drawtube notes:

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1	2.84 ± 0.01	± 0.01	1.46 ± 0.005	685.50 ± 0.2			27.00	1.51 ± 0.003	61.00 ± 3
Complete

Eyepieces

Notes:

Eyepiece 1

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	28.60						24.00
Lens 2	44.60 ± 0.3
Lens 3	52.40 ± 0.4
Lens 4	38.00 ± 0.2

Eyepiece 2

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	52.40

Eyepiece 3

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	38.00

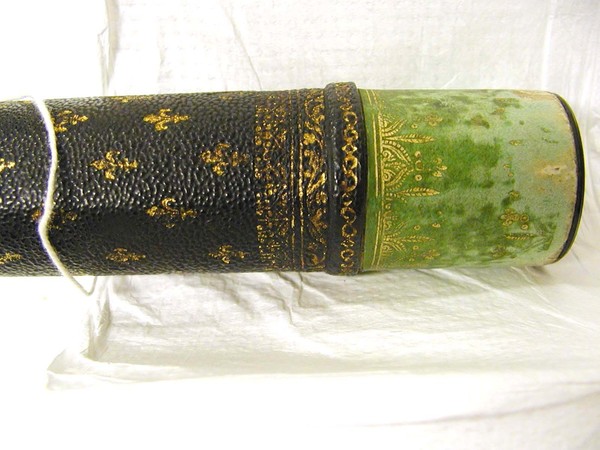

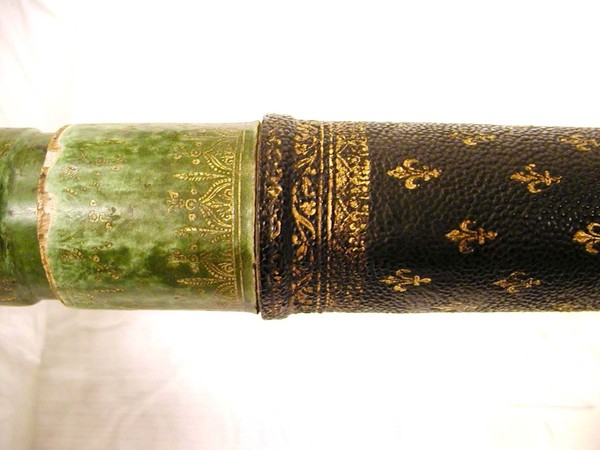

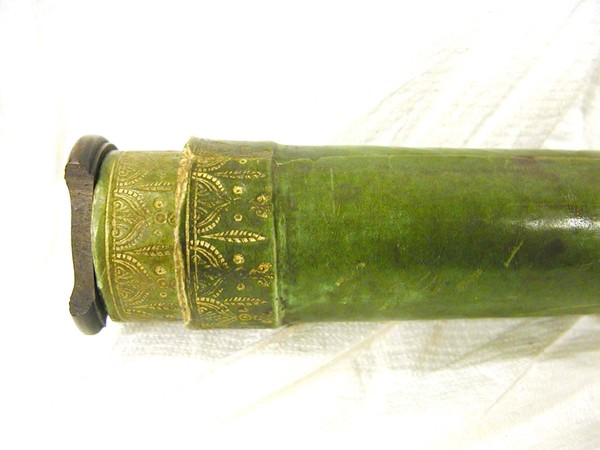

Additional Photos/Documents

Back to results
