Patroni, Pietro, 1720 c.
Adler Planetarium and Astronomy Museum

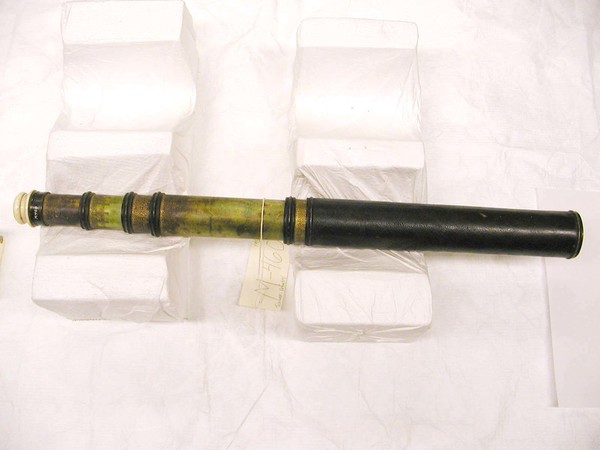

photo - whole telescope

Basic Info

Maker: Patroni, Pietro

Year: 1720 c.

Year Range: 1714-1722

Year Notes:

Manufacturing Location: Italy

Signature:

Signature Notes:

Inscriptions:

No stand present.

Collection: Adler Planetarium and Astronomy Museum

Accession #: M-460

Sources:

Project investigation and collection website

Public Notes:

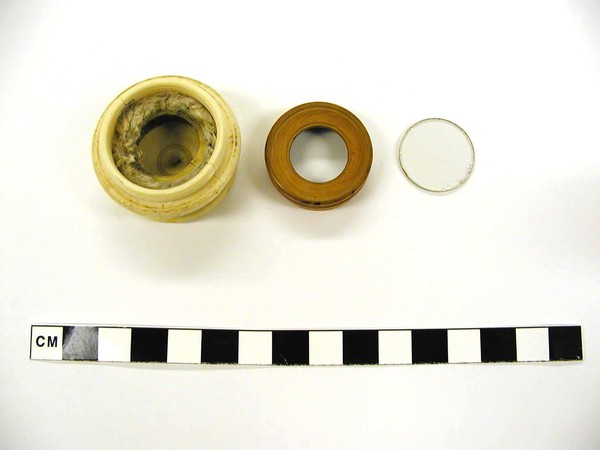

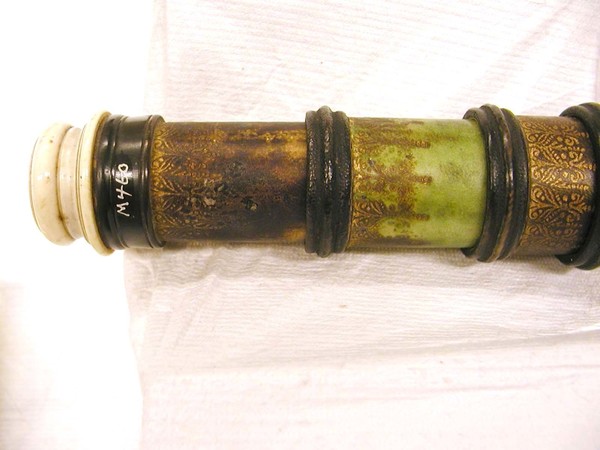

Presumably Italian made telescope. It appears that Black sharkskin coversthe main tube without tooling. Five draw tubes covered with gold-tooled green vellum, badly soiled in several places. Ivory eyepiece mounting. Tube containing lenses 1 and 2 in the eyepiece is reversible. With "grande" side out, the data is as given under eyepiece 1. With the "chiaro" side out data is given under eyepiece 2, and the combination focal length is 55.9 mm and M = 9.1.

Length (open): 1060

Length (closed): 320

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: singlet

Optical style

Physical style spyglass

Functional style

Materials: glass, sharkskin, pasteboard, leather, ivory, horn, wood, vellum

Optical/Lab Data

Drawtube data:

Drawtube notes:

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1	1.91 ± 0.007	-1.90 ± 0.007	1.96 ± 0.012	509.00 ± 3	1.98		23.00	1.52 ± 0.003	54.00 ± 3
Complete

Eyepieces

Notes:

Eyepiece 1

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	48.90
Lens 2	43.20

Eyepiece 2

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	55.90
Lens 2	48.90
Lens 3	49.00

Eyepiece 3

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	48.90
