Ramsden, Jesse, 1780 c.
Adler Planetarium and Astronomy Museum

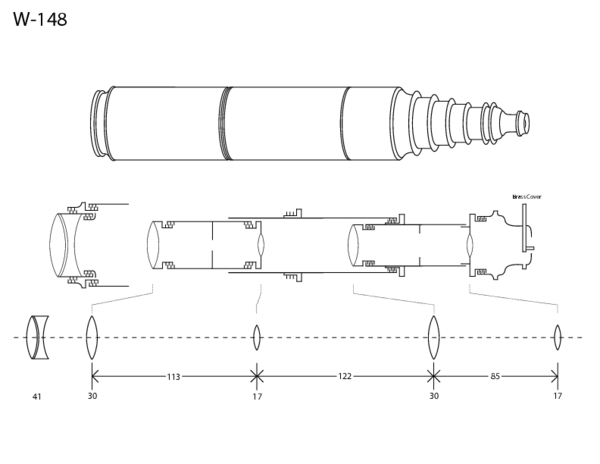

diagram

Basic Info

Maker: Ramsden, Jesse

Year: 1780 c.

Year Range: 1755-1800

Year Notes:

Manufacturing Location: London, England

Signature: Ramsden / London / Impd. Day or Night

Signature Notes:

Inscriptions:

No stand present.

Collection: Adler Planetarium and Astronomy Museum

Accession #: W-148

Sources:

Project investigation.

Public Notes:

The eyepiece is variable power. Main tube diameter 63 mm.

Length (open): 968

Length (closed): 336

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: doublet (crown forward)

Optical style

Physical style spyglass

Functional style

Materials: brass, glass, leather

Optical/Lab Data

Drawtube data:

Drawtube notes:

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1	7.70	-4.30	6.29	159.10	2.92			1.53
Lens 2	-5.36	2.04	-4.29	-233.00	1.35			1.58
Complete	2.03 ± 0.005	492.20 ± 1.1	4.32		38.50

Eyepieces

Notes:

Eyepiece 1

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	80.90

Eyepiece 2

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	156.90

Eyepiece 3

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	87.20

Eyepiece 4

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	49.00
