Dioptrice : pre-1775 refracting telescopes

pre-1775 refracting telescopes

Browse About

Unknown
Mathematisch-Physikalischer Salon / Staatliche Kunstsammlungen Dresden

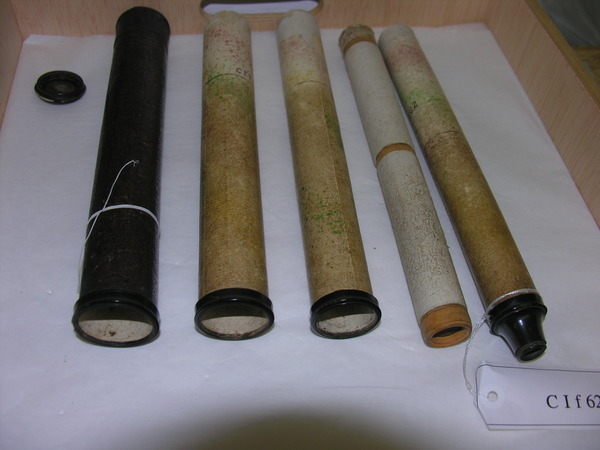

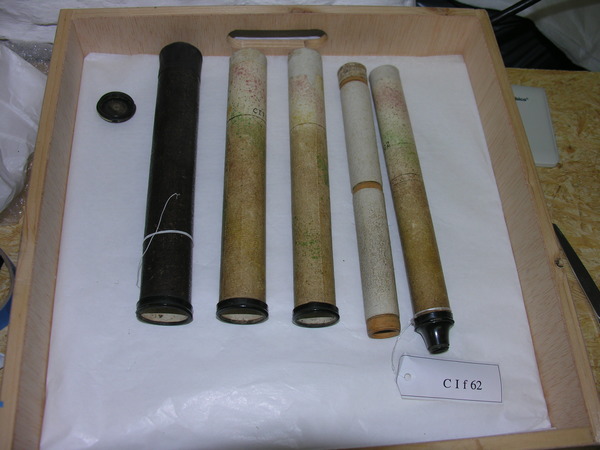

photo - whole telescope

Basic Info

Maker: Unknown

Year:

Year Range: -

Year Notes:

Manufacturing Location:

Signature:

Signature Notes:

Inscriptions:

No stand present.

Collection: Mathematisch-Physikalischer Salon / Staatliche Kunstsammlungen Dresden

Accession #: CIF 62

Sources:

Field research.

Public Notes:

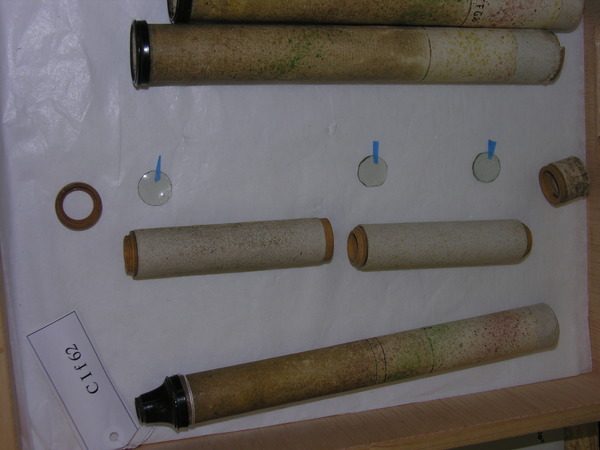

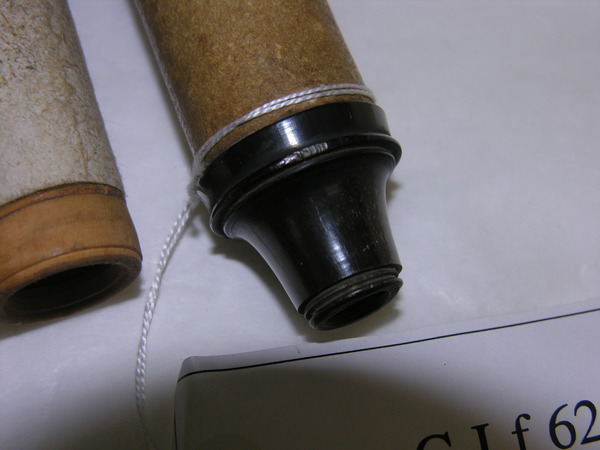

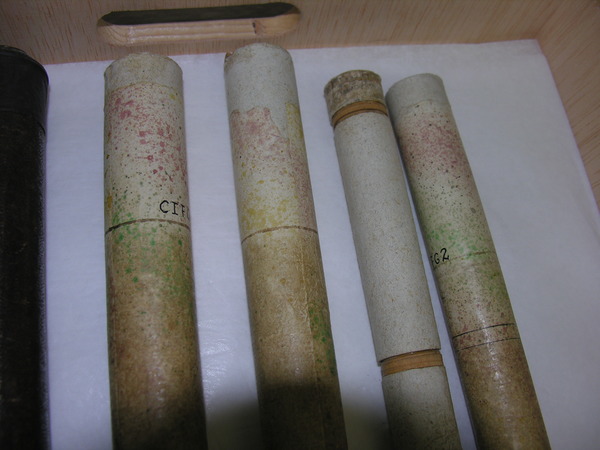

Main, with 3 draws, plus eyepiece unit.

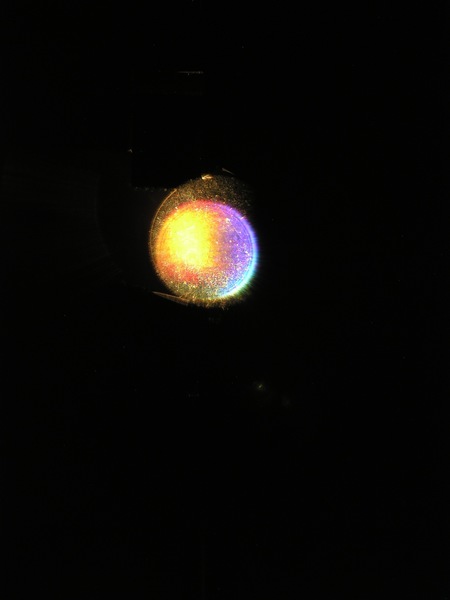

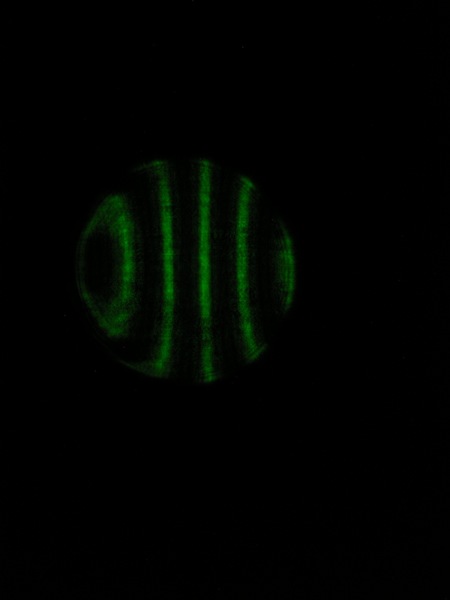

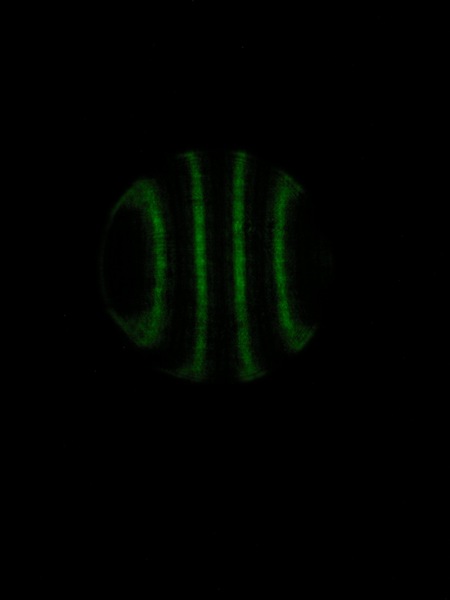

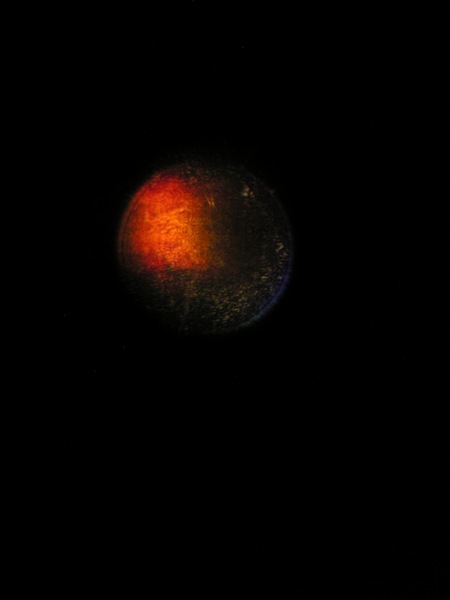

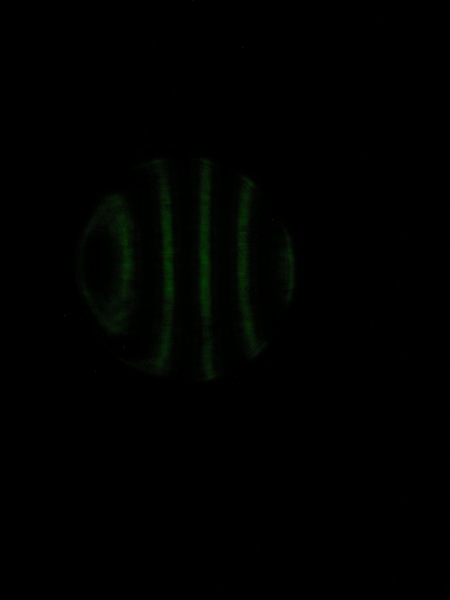

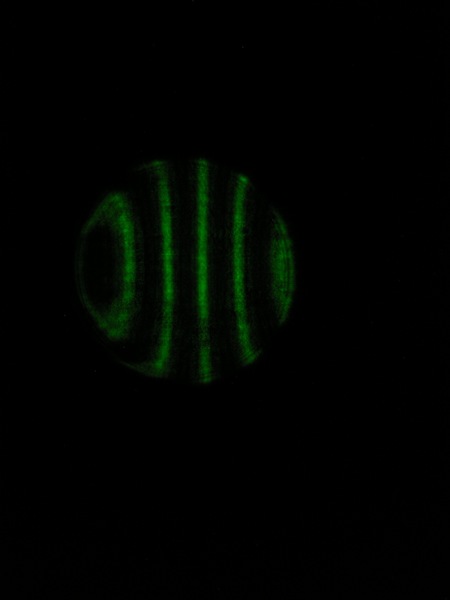

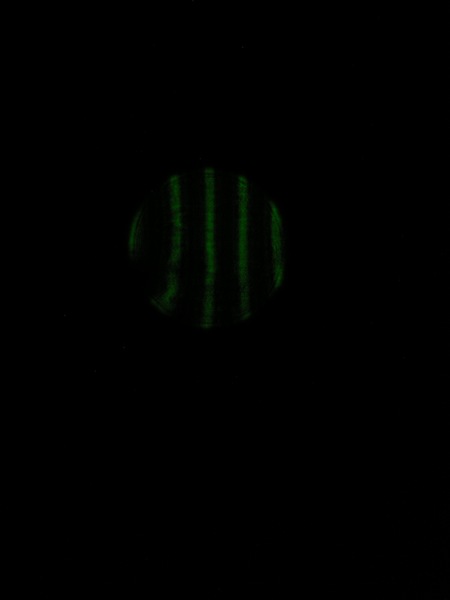

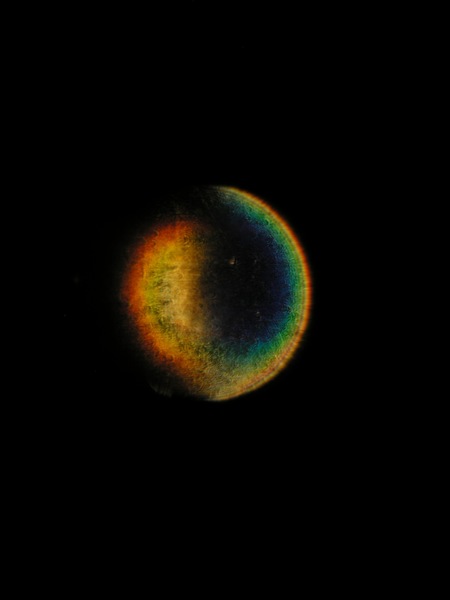

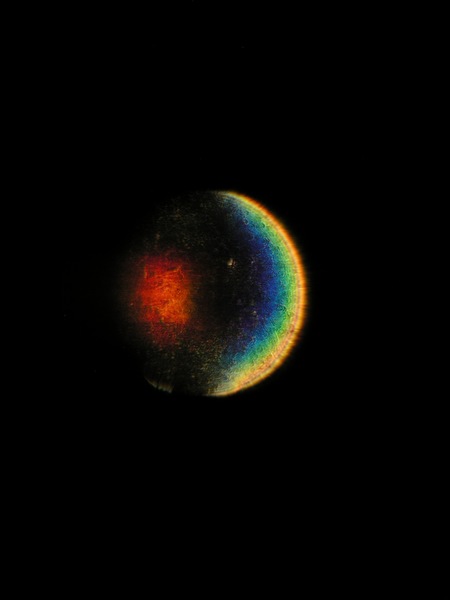

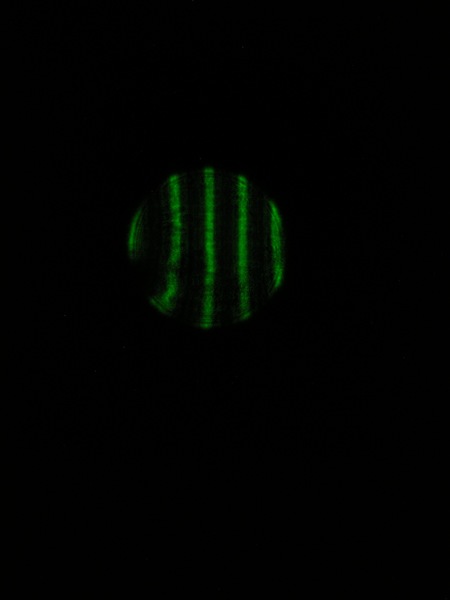

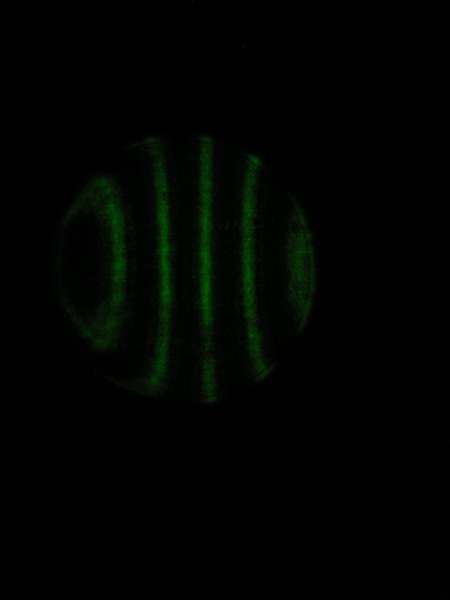

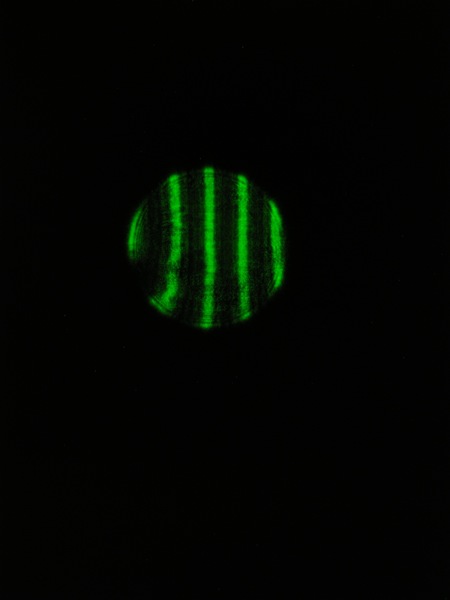

Many asymmetries in focogram, ronchigram.

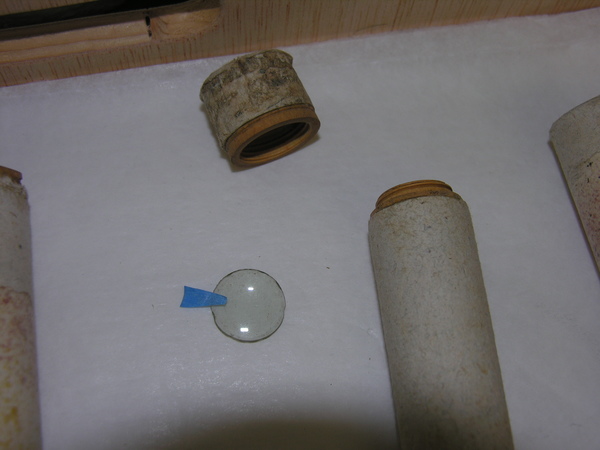

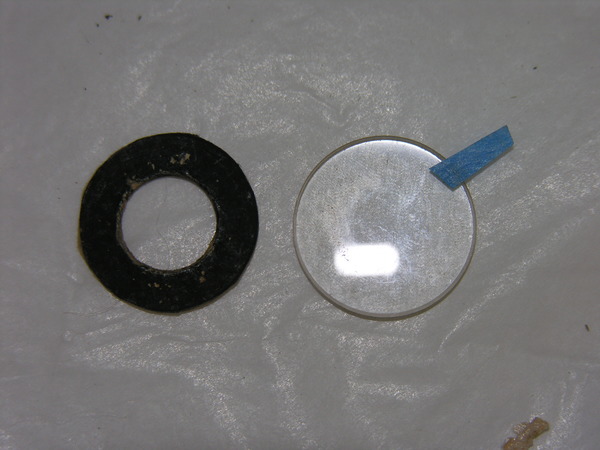

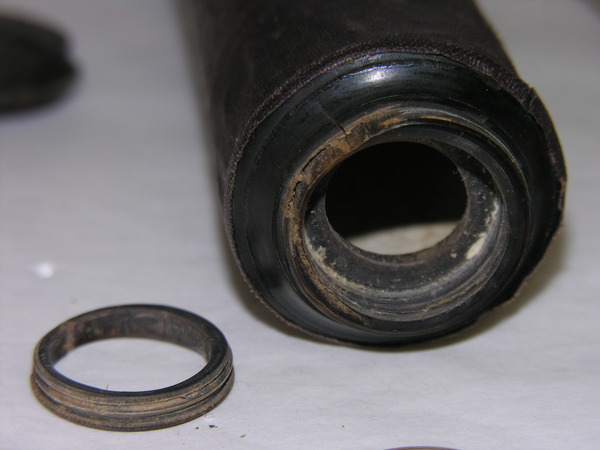

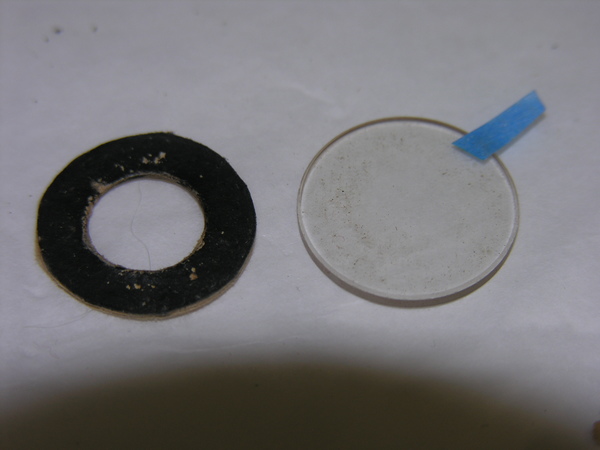

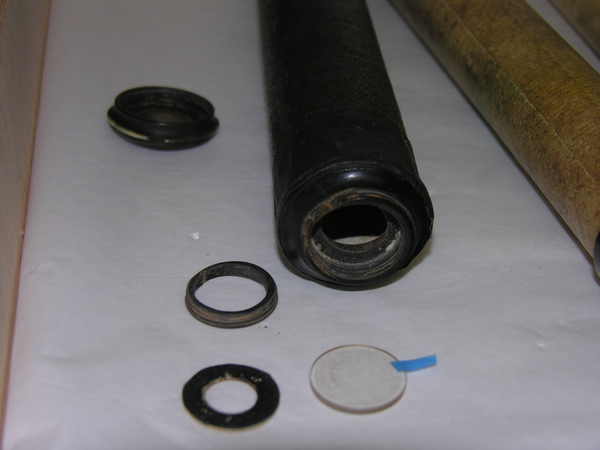

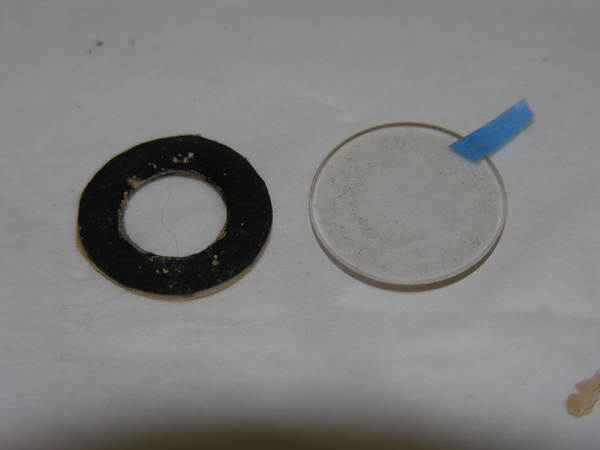

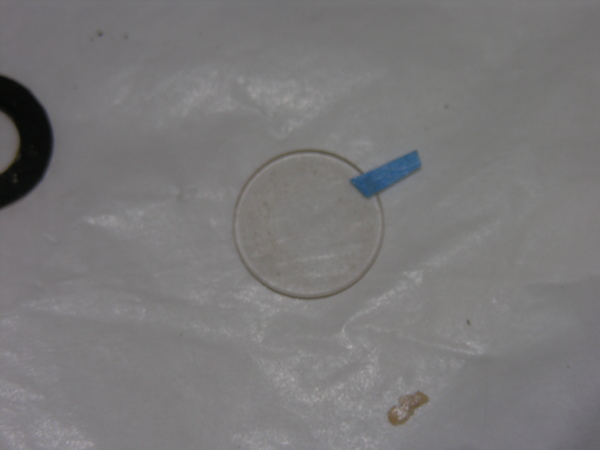

Objective lens is nicely bevelled on the sides.

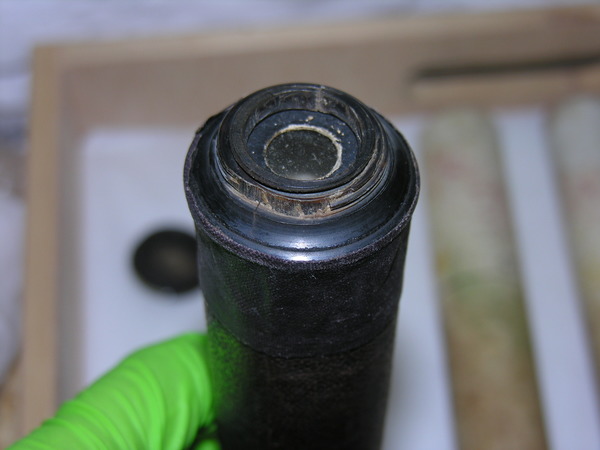

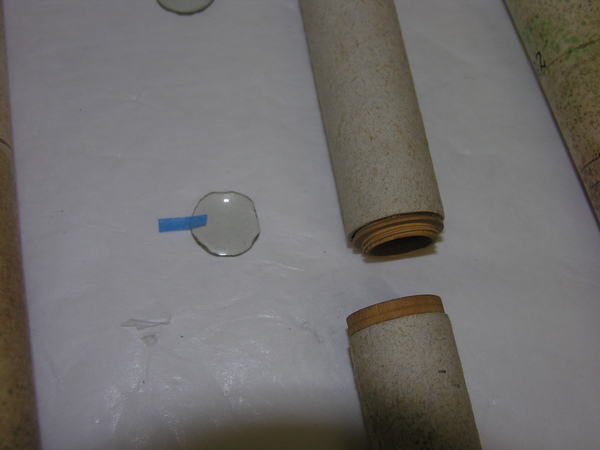

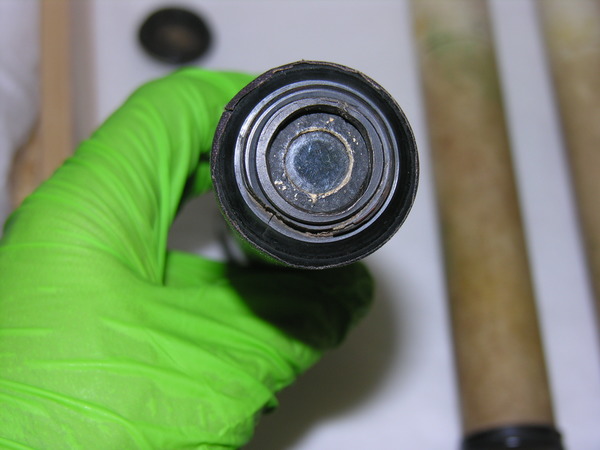

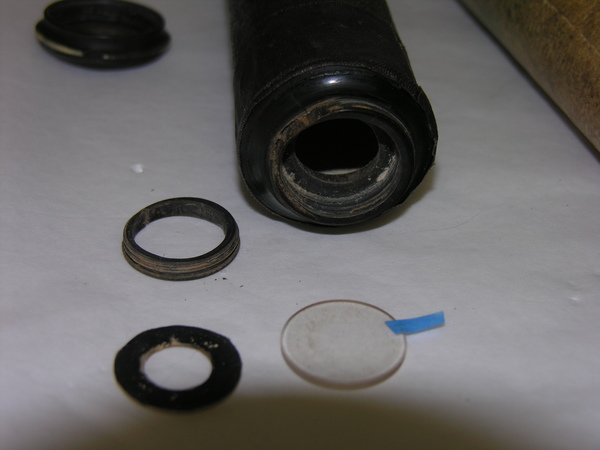

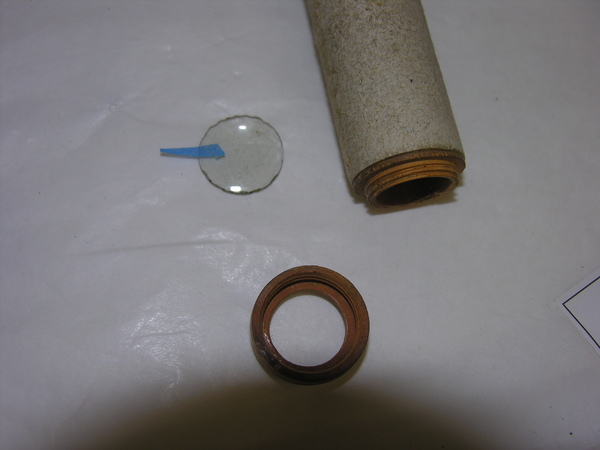

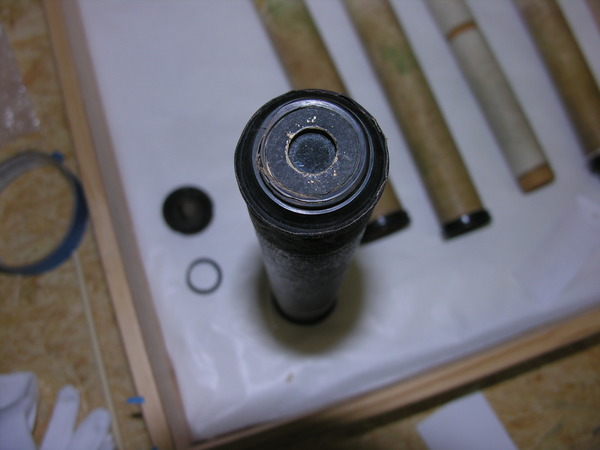

All eyepiece elements have raggged edges.

Length (open):

Length (closed):

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: singlet

Optical style terrestrial

Physical style

Functional style

Materials:

Optical/Lab Data

Drawtube data:

Drawtube notes:

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1	2.04	2.08	2.30	435.39	2.00		12.00
Complete

Eyepieces

Notes:

Eyepiece 1

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	54.60						7.97
Lens 2	53.75		17.00	120.00	17.46	17.28
Lens 3	54.80		17.00	117.00	17.19	17.29
Lens 4	54.63		17.00		17.28	17.52

Eyepiece 2

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	54.80		17.00		17.19	17.29

Eyepiece 3

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	54.63		17.00		17.28	17.52
