Dioptrice : pre-1775 refracting telescopes

pre-1775 refracting telescopes

Browse About

Unknown, Unknown
Mathematisch-Physikalischer Salon / Staatliche Kunstsammlungen Dresden

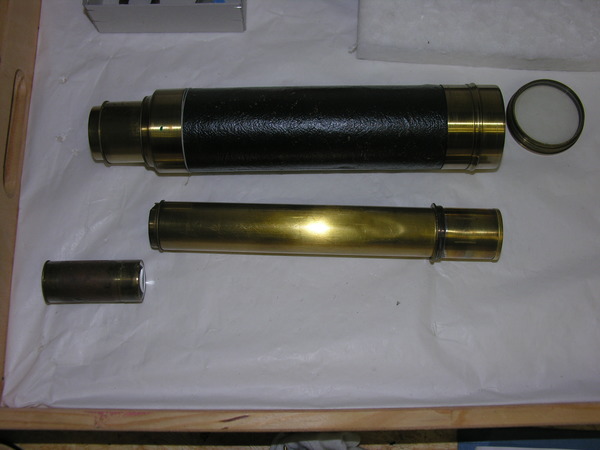

photo - whole telescope

Basic Info

Maker: Unknown

Year: Unknown

Year Range: -

Year Notes:

Manufacturing Location: France?

Signature:

Signature Notes:

Inscriptions:

No stand present.

Collection: Mathematisch-Physikalischer Salon / Staatliche Kunstsammlungen Dresden

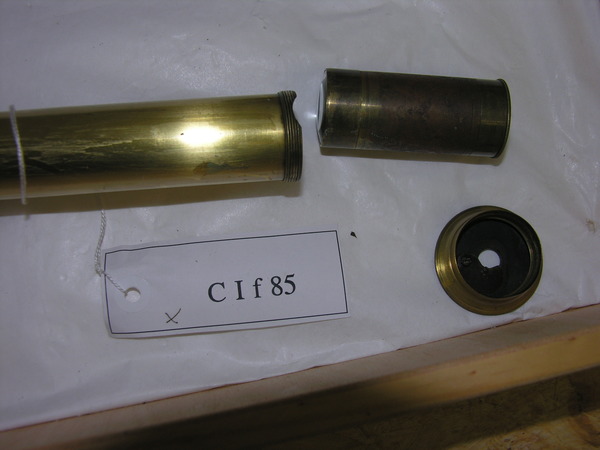

Accession #: CIF 85

Sources:

Project field work.

Public Notes:

Unsigned, no markings.

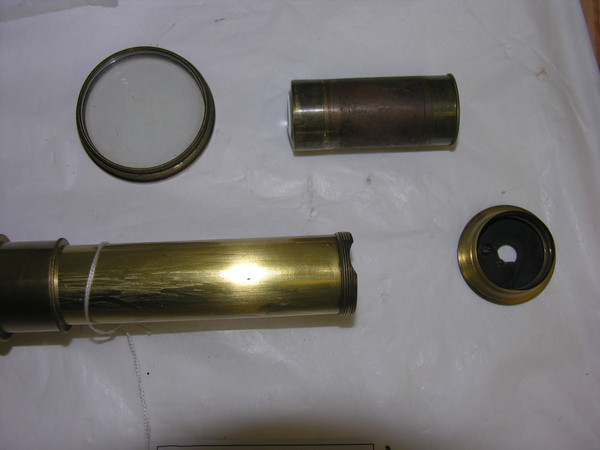

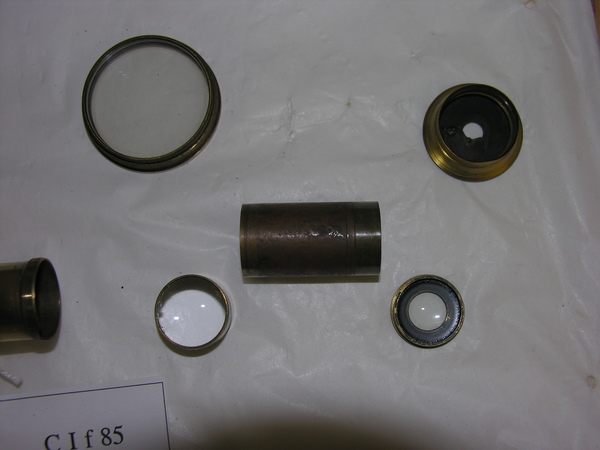

Leather covered main tube, 4 draws.

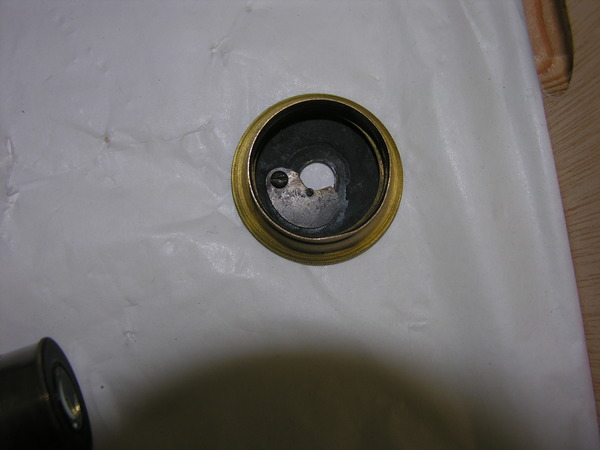

Eyepiece unit draw does not come out.

Last 2 EP lens unit does come out -- friction fit.

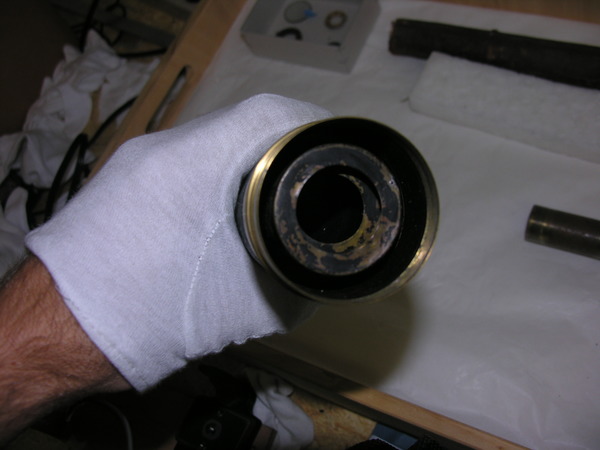

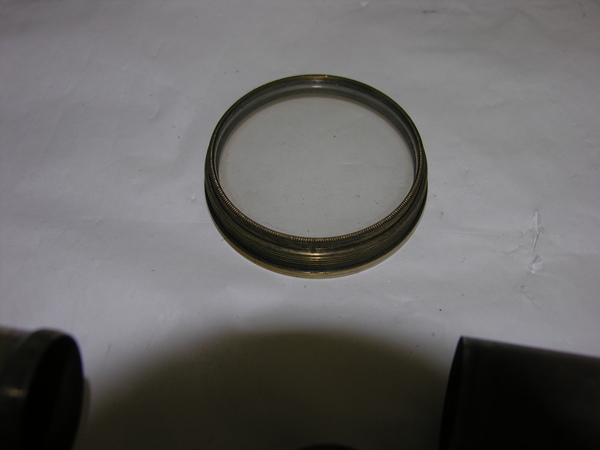

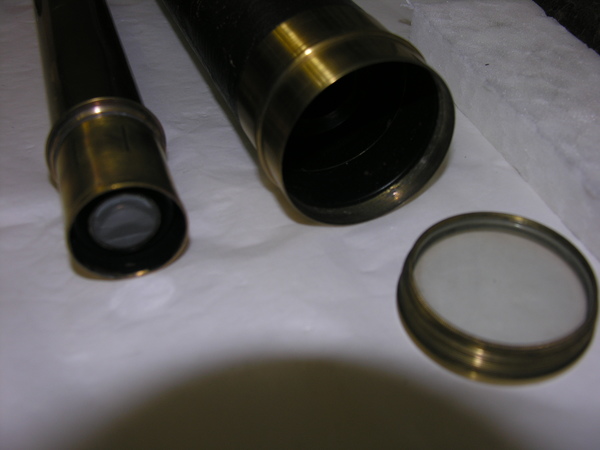

Objective is flint forward, edge is milled, not burnished -- French?

Could measure eye piece lens 1A by pushing tube in close to objective.

Length (open):

Length (closed):

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: doublet (flint forward)

Optical style

Physical style

Functional style

Materials: leather, glass

Optical/Lab Data

Drawtube data:

Drawtube notes:

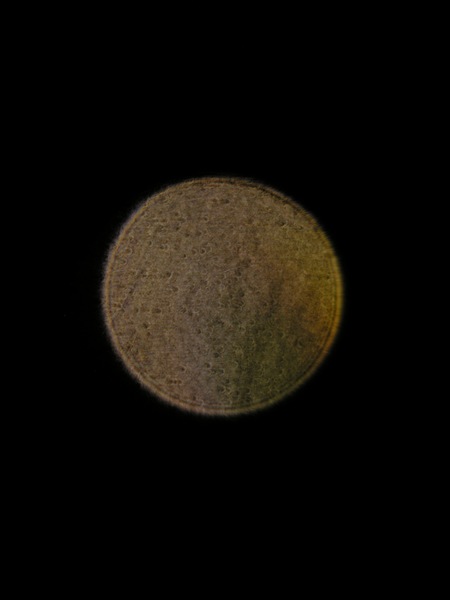

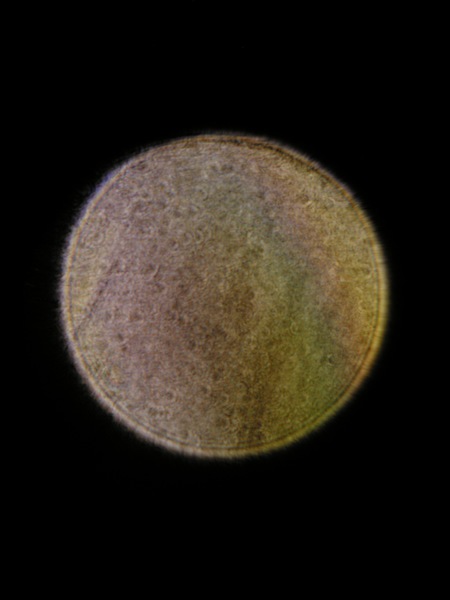

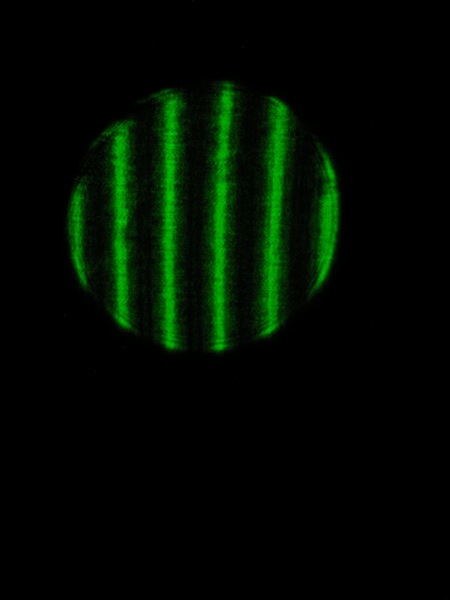

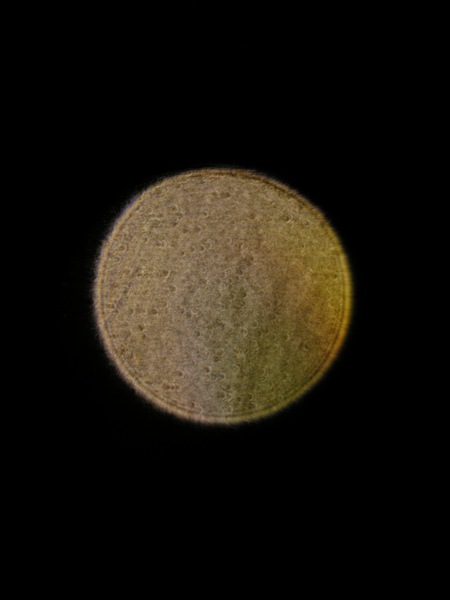

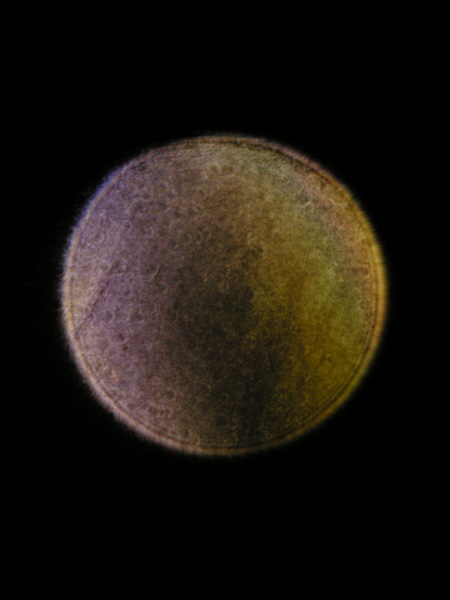

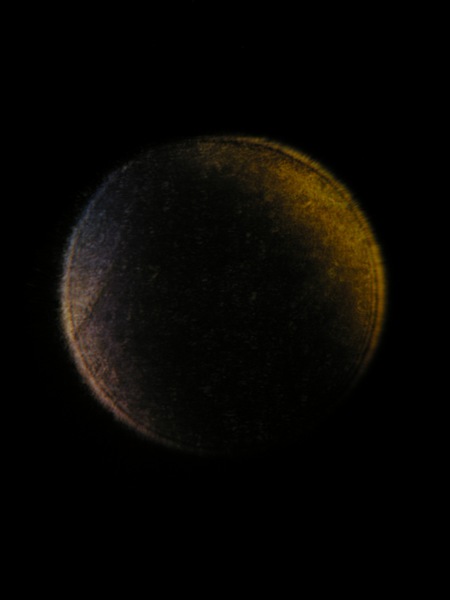

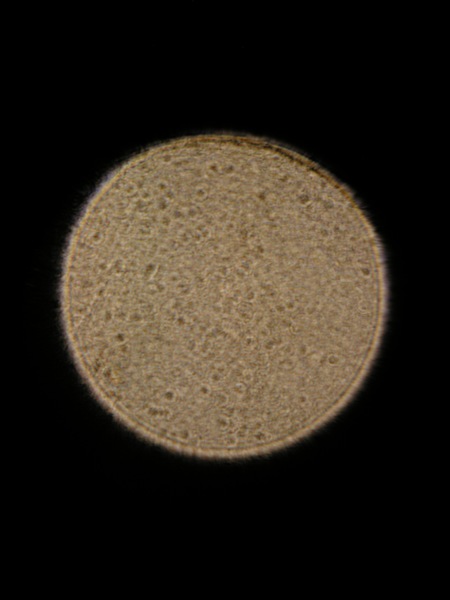

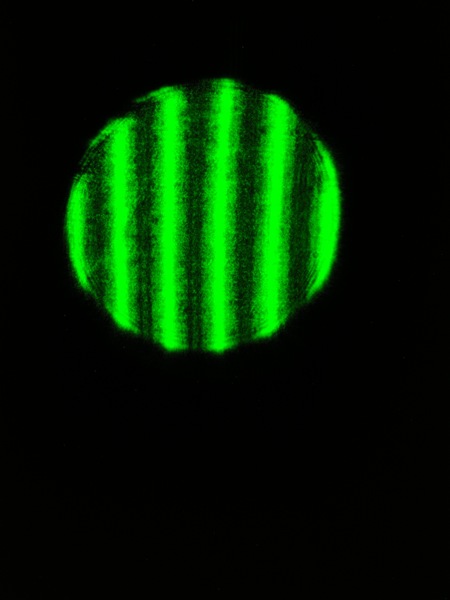

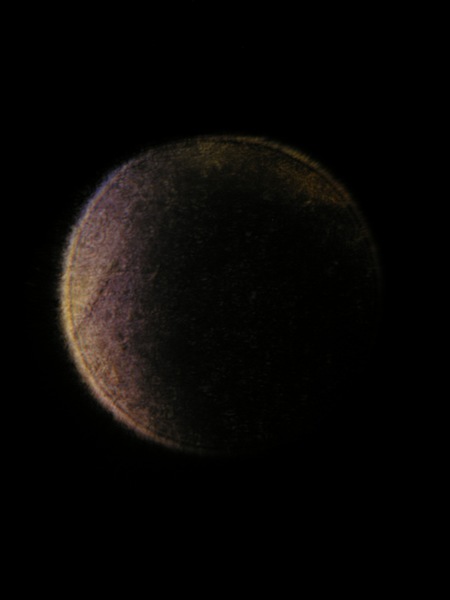

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1	0.75	5.02	0.00	646.10			47.00
Complete

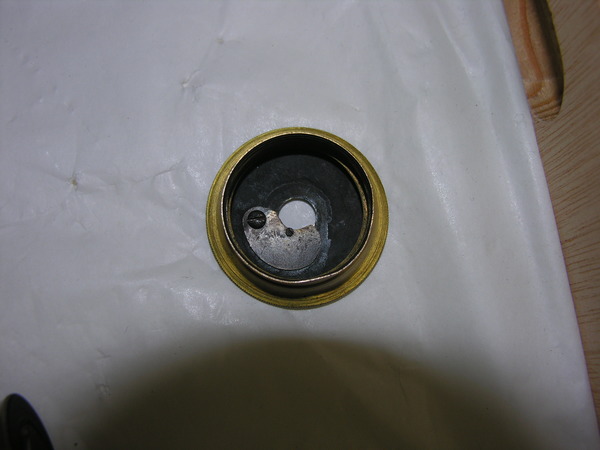

Eyepieces

Notes:

Eyepiece 1

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	26.35						24.52
Lens 2			19.00	67.00
Lens 3				95.00
Lens 4	51.52		26.00	63.00	27.54	9.41
Lens 5	38.50		14.00

Eyepiece 2

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	51.52		26.00		27.54	9.41

Eyepiece 3

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	38.50		14.00
