Vesdy, 1680 c.+20
Coll. Willach

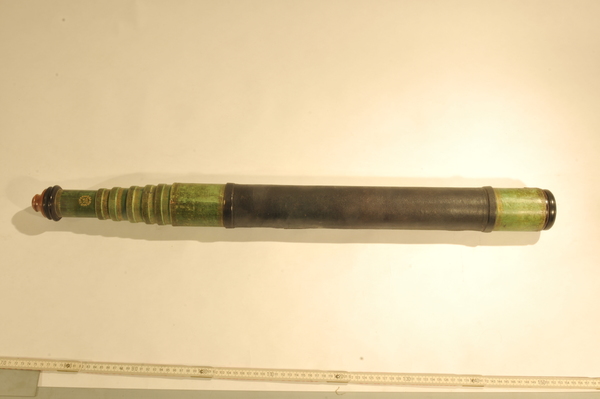

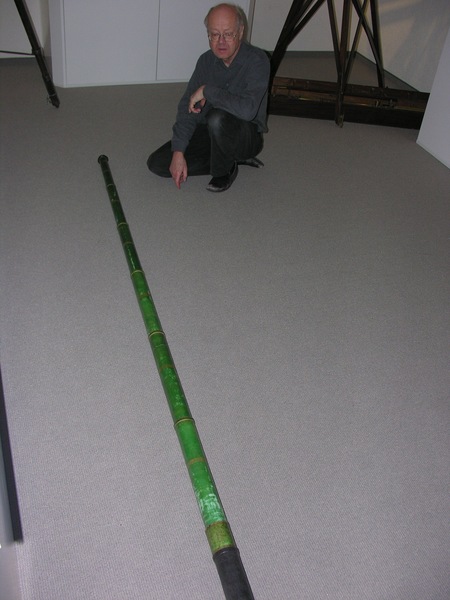

photo - whole telescope

Basic Info

Maker: Vesdy

Year: 1680 c.+20

Year Range: -

Year Notes:

Manufacturing Location: France

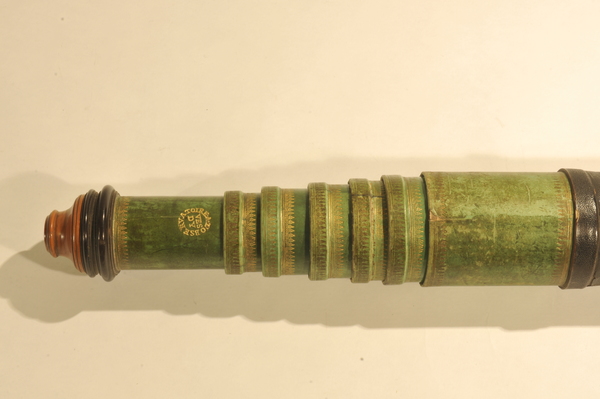

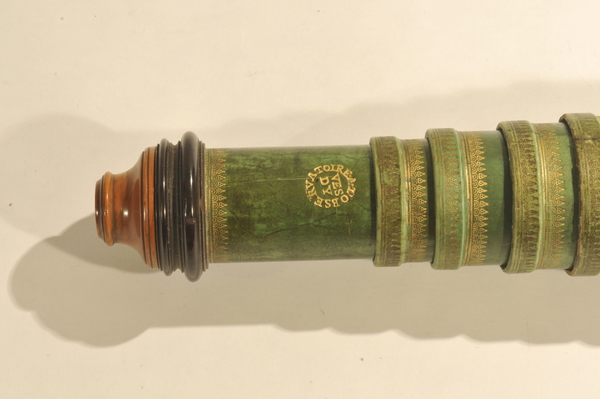

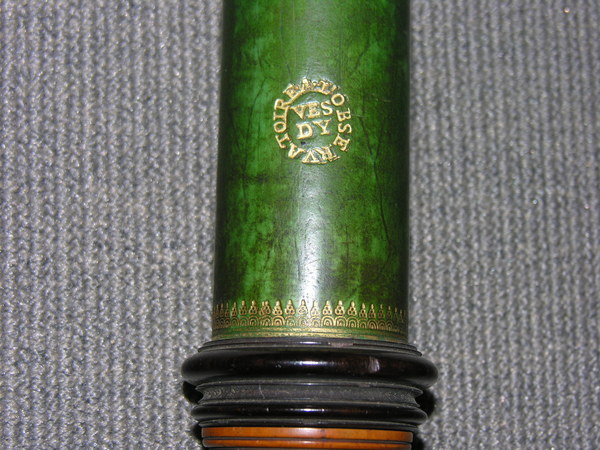

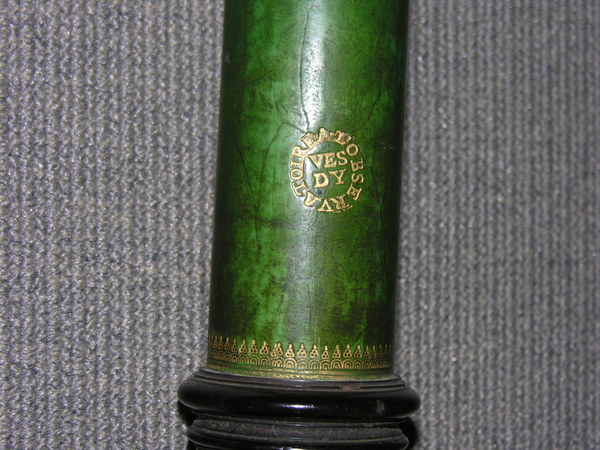

Signature: VES / DY / OBSERVATOIRE

Signature Notes:

Inscriptions:

No stand present.

Collection: Coll. Willach

Accession #: RW 057 [2657] [2013 12] [2023]

Sources:

Project investigation

Public Notes:

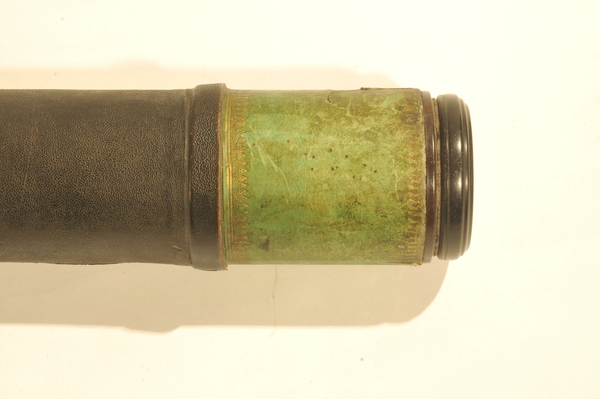

The tooling similar to Mesnard, late 1680s or 90s. Six wooden veneer draws, with artificial shagreen covered main tube. Aperture 29 mm.

Length (open): 3000

Length (closed):

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: unconfirmed

Optical style

Physical style

Functional style

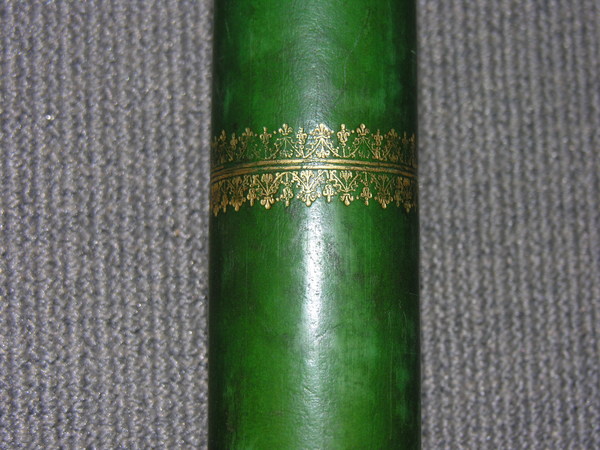

Materials: glass, leather, pasteboard, wood, gold tooling

Optical/Lab Data

Drawtube data:

Drawtube notes:

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1							29.00

Eyepieces

Notes:
