Dollond, 1810 c.
Adler Planetarium and Astronomy Museum

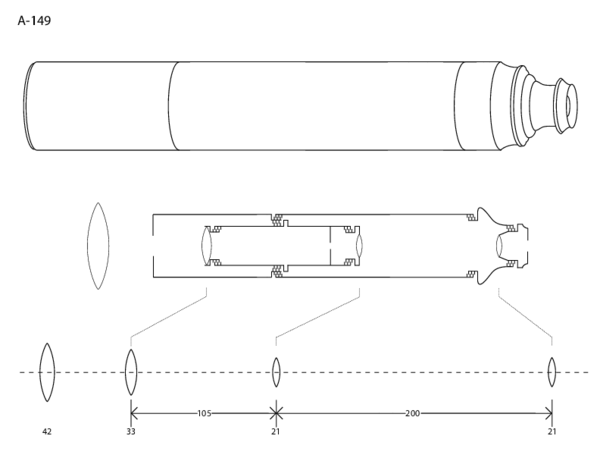

diagram

Basic Info

Maker: Dollond

Year: 1810 c.

Year Range: 1800-1825

Year Notes:

Manufacturing Location: England

Signature: Dollond London / Day or Night

Signature Notes:

Inscriptions:

No stand present.

Collection: Adler Planetarium and Astronomy Museum

Accession #: A-149

Sources:

Project investigation

Public Notes:

Main tube is 64 mm in diameter and made of wood, covered in plain cowhide in poor condition. Cowhide has stitched seam. Objective glass is almost certainly non-achromatic(possibly a replacement); glass has brass mount. Mount is covered by brass sleeve. Brass eyepiece cap has pivoting dust slide. Eyepiece lens has brass mount. Single draw tube divides for holding a tube with two positive lenses, one aperture disc. Draw tube has triple extension marks. Maker's signature on the draw tube.

Length (open): 800

Length (closed): 526

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: singlet

Optical style

Physical style spyglass

Functional style day or night

Materials: leather, wood, glass, brass

Optical/Lab Data

Drawtube data:

Drawtube notes:

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1	7.62	-3.79	6.34 ± 0.012	157.60 ± 0.3			39.70	1.56
Complete

Eyepieces

Notes:

Eyepiece 1

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	60.00

Eyepiece 2

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	79.40

Eyepiece 3

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	79.00
