Ramsden, Jesse, 1780 c.20
Adler Planetarium and Astronomy Museum

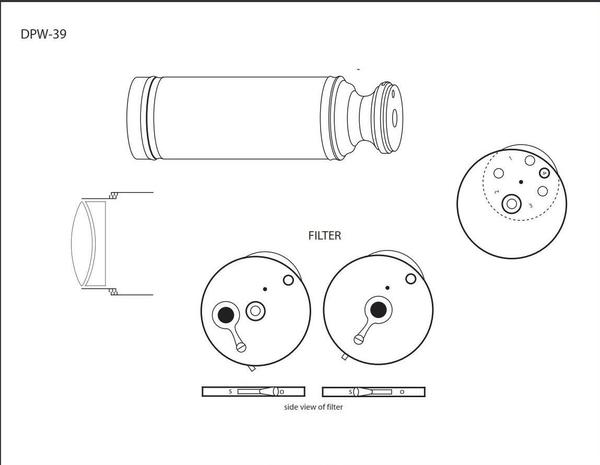

diagram

Basic Info

Maker: Ramsden, Jesse

Year: 1780 c.20

Year Range: 1760-1800

Year Notes:

Manufacturing Location: London, England

Signature: Ramsden London

Signature Notes:

Inscriptions:

No stand present.

Collection: Adler Planetarium and Astronomy Museum

Accession #: DPW-39

Sources:

Project investigation

Public Notes:

Length (open):

Length (closed): 114 mm by 42 mm diameter

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: singlet

Optical style

Physical style spyglass

Functional style

Materials: brass, glass

Optical/Lab Data

Drawtube data:

Drawtube notes:

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1			1.25 ± 0.0016	170.90 ± 0.2	9.70		31.50
Complete

Eyepieces

Notes:

Eyepiece 1

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	44.12						3.90

Eyepiece 2

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	21.69						7.90

Eyepiece 3

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	12.83						13.50

Eyepiece 4

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	8.23						20.80

Additional Photos/Documents

Back to results
