Dioptrice : pre-1775 refracting telescopes

pre-1775 refracting telescopes

e.g. “dollond”

advanced search options

Browse About

Unknown
Mathematisch-Physikalischer Salon / Staatliche Kunstsammlungen Dresden

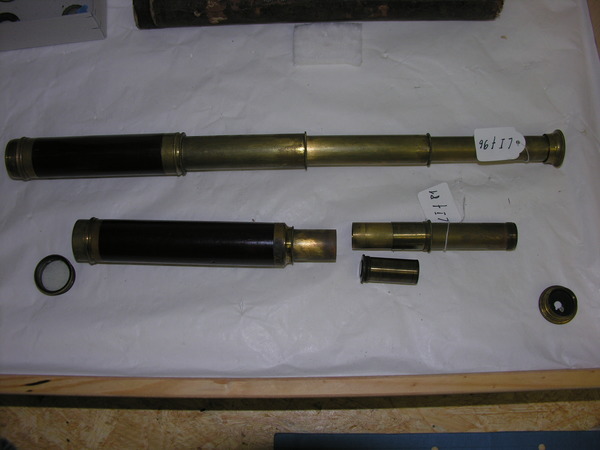

photo - whole telescope

Basic Info

Maker: Unknown

Year:

Year Range: -

Year Notes:

Manufacturing Location:

Signature:

Signature Notes:

Inscriptions:

No stand present.

Collection: Mathematisch-Physikalischer Salon / Staatliche Kunstsammlungen Dresden

Accession #: CIF 96

Sources:

Project field work.

Public Notes:

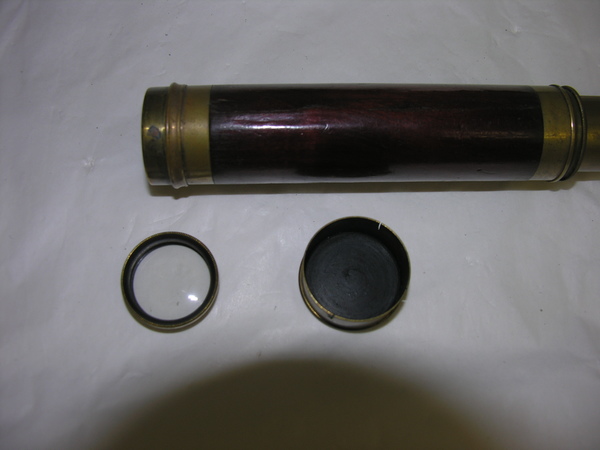

Main tube made of wood, with brass fittings. Unsigned; no markings or inscriptions anywhere. Appears well-make, with fittings unscrewing easily. Four lens eyepiece with first 2 screwing in, last 2 pressure fitting, with notch to allow for focusing.

Length (open):

Length (closed):

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: doublet (flint forward)

Optical style

Physical style

Functional style

Materials: wood, glass, brass

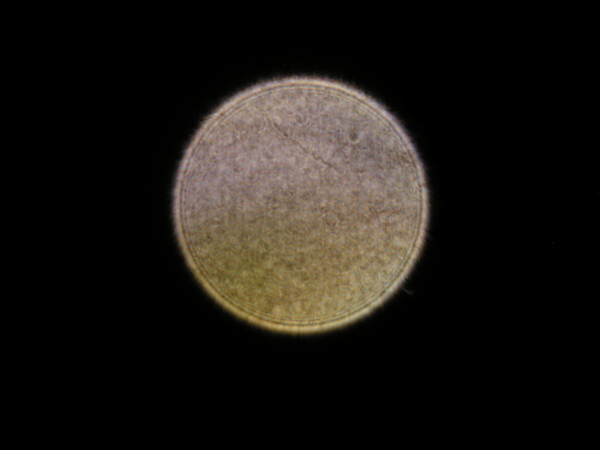

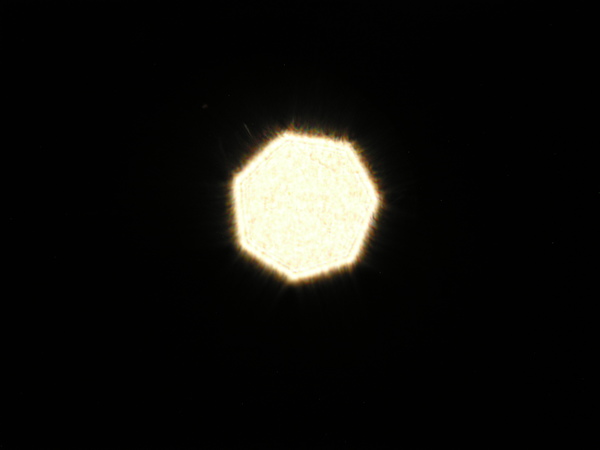

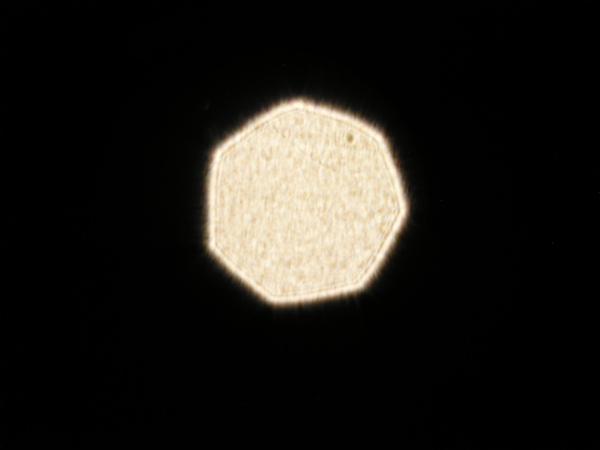

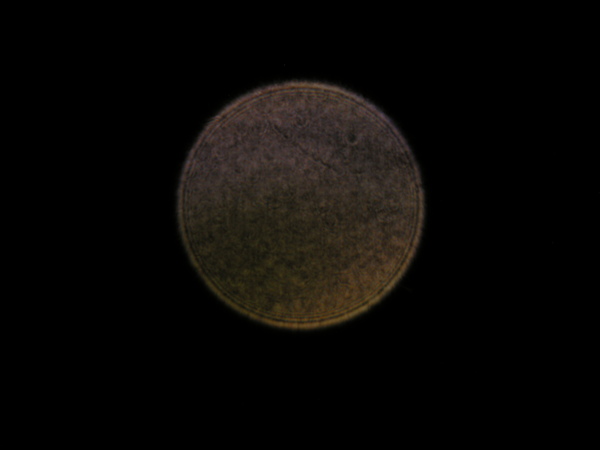

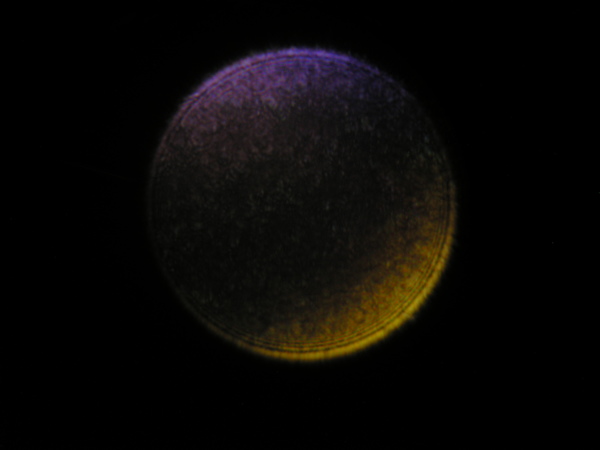

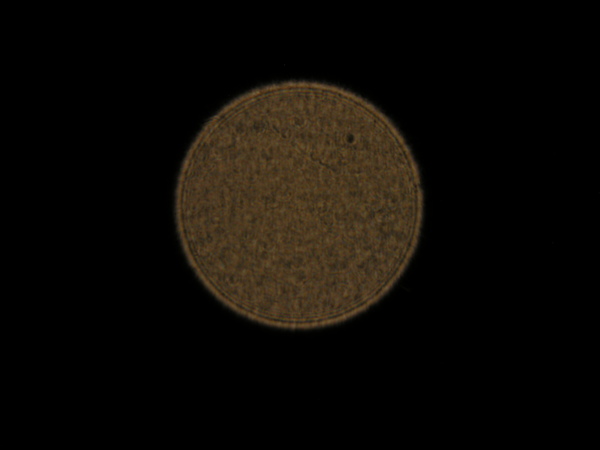

Optical/Lab Data

Drawtube data:

Drawtube notes:

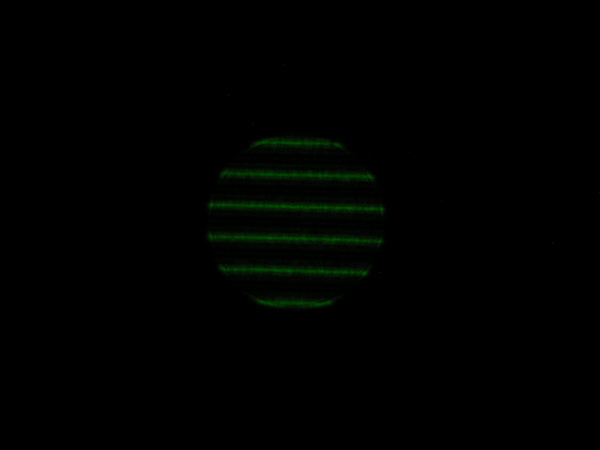

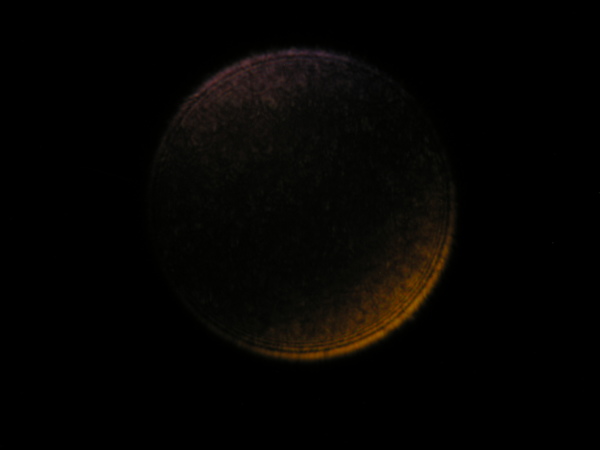

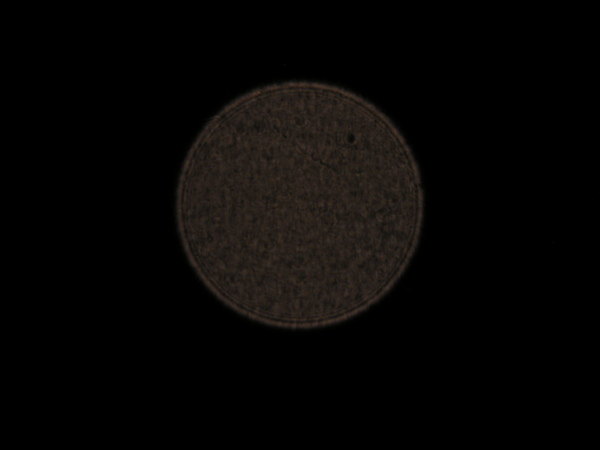

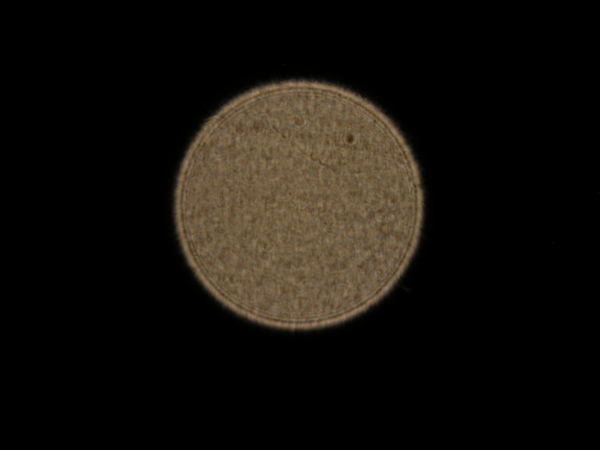

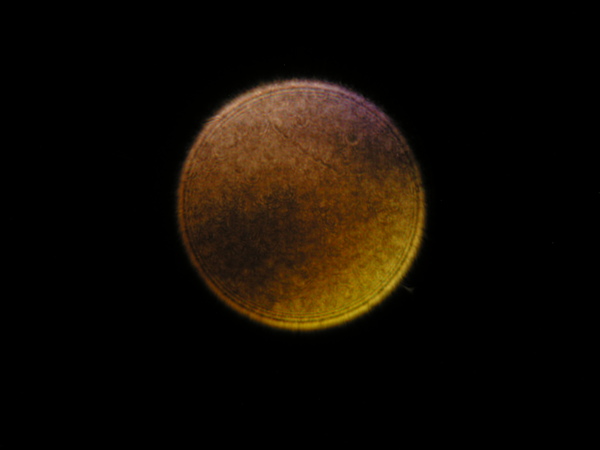

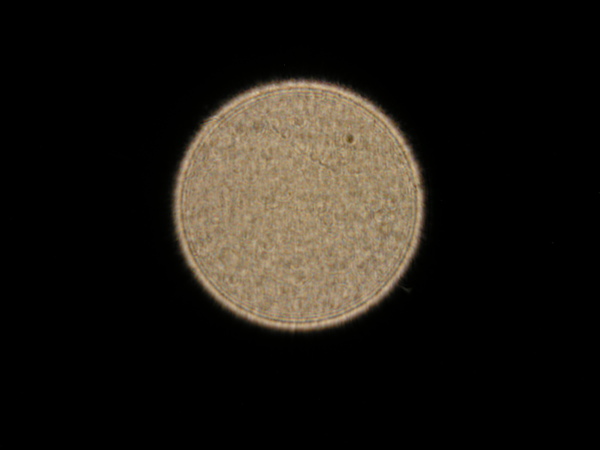

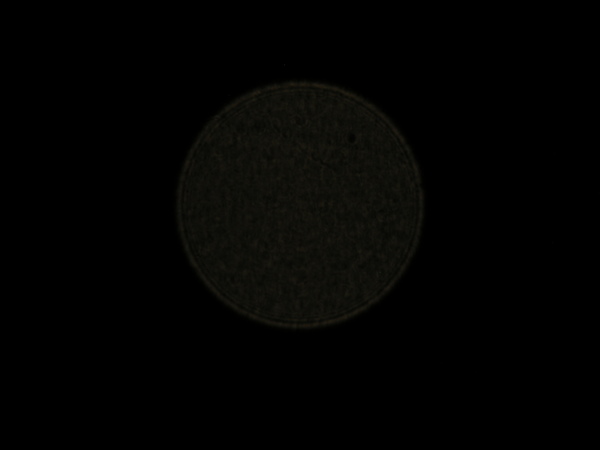

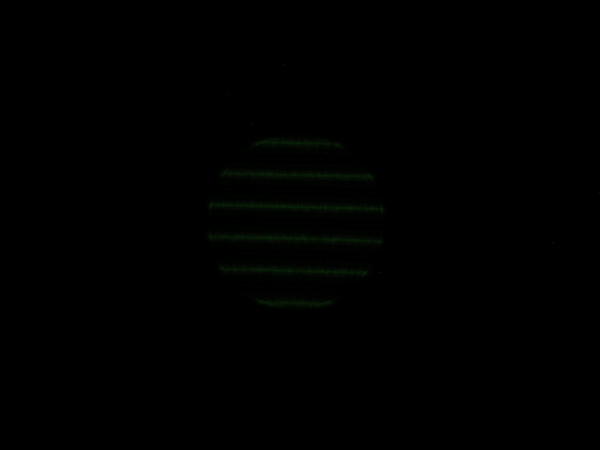

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1	0.75	11.92	0.00	237.75			25.00

Eyepieces

Notes:

Eyepiece 1

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	25.00						9.51
Lens 2	29.48		13.00	40.00	32.77	32.02
Lens 3	31.65		12.00	40.00	30.01	29.93
Lens 4	34.20		16.00	40.00	28.01	28.01
Lens 5	26.22		10.00
