Unknown
Mathematisch-Physikalischer Salon / Staatliche Kunstsammlungen Dresden

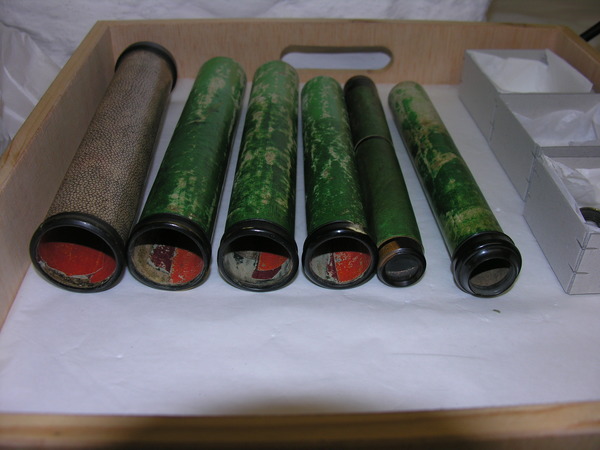

photo - whole telescope

Basic Info

Maker: Unknown

Year:

Year Range: 1725-1750

Year Notes:

Manufacturing Location:

Signature:

Signature Notes:

Inscriptions:

No stand present.

Collection: Mathematisch-Physikalischer Salon / Staatliche Kunstsammlungen Dresden

Accession #: CIF 112

Sources:

Field research.

Public Notes:

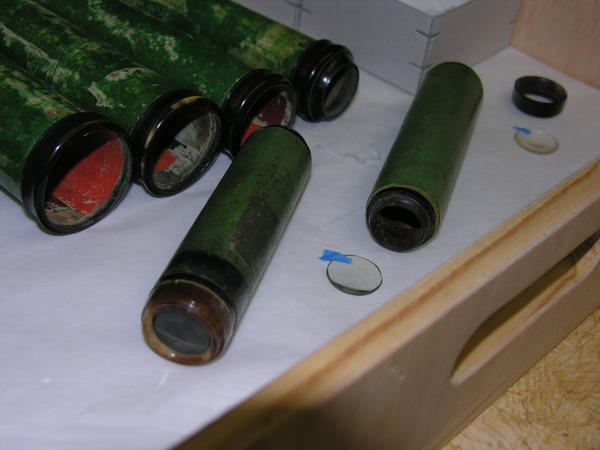

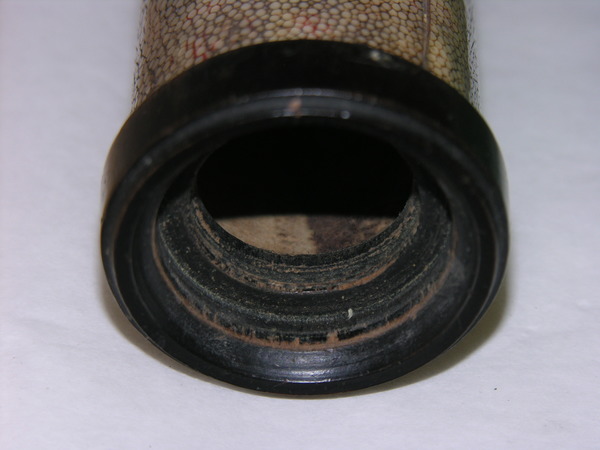

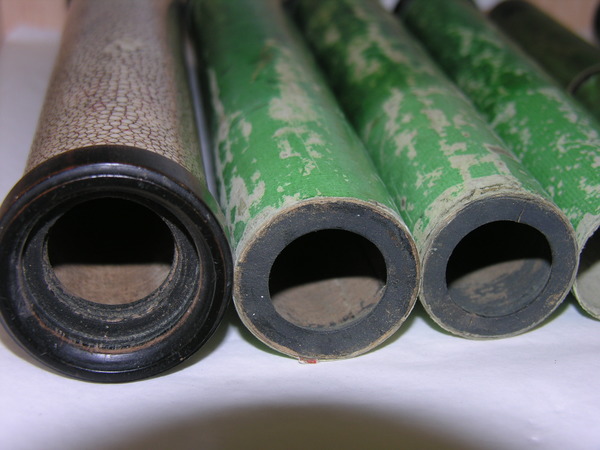

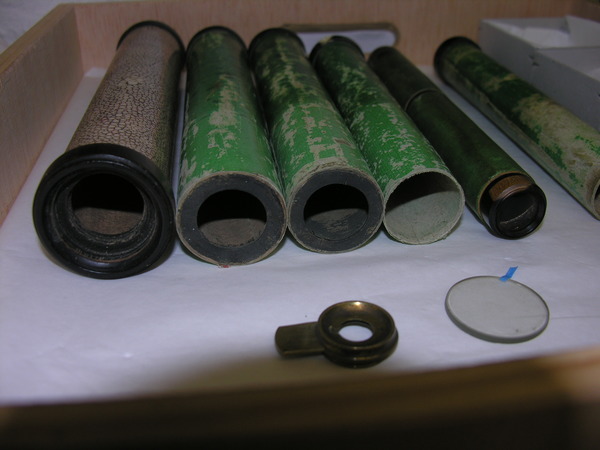

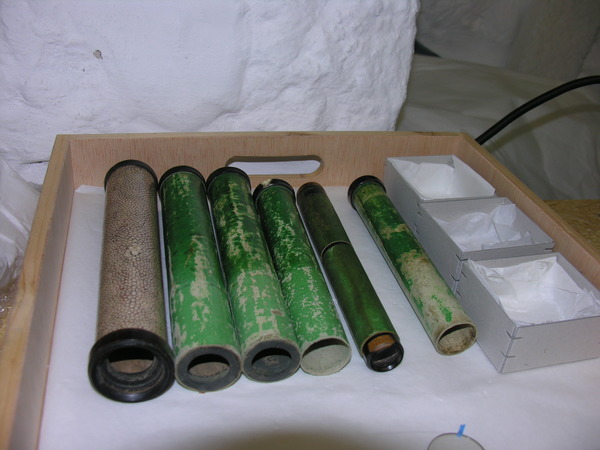

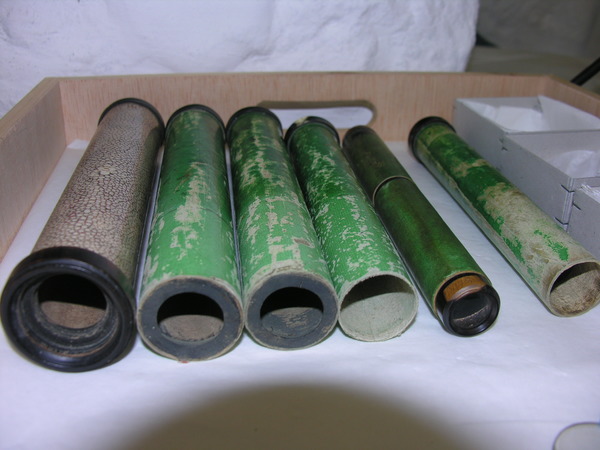

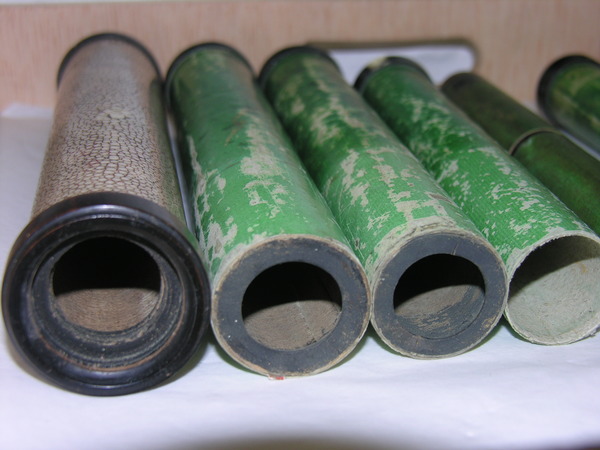

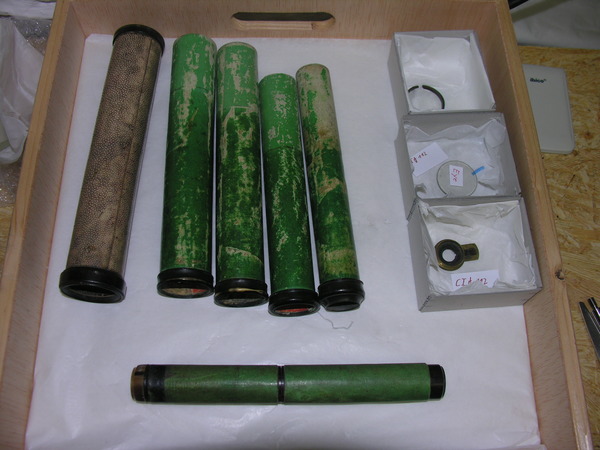

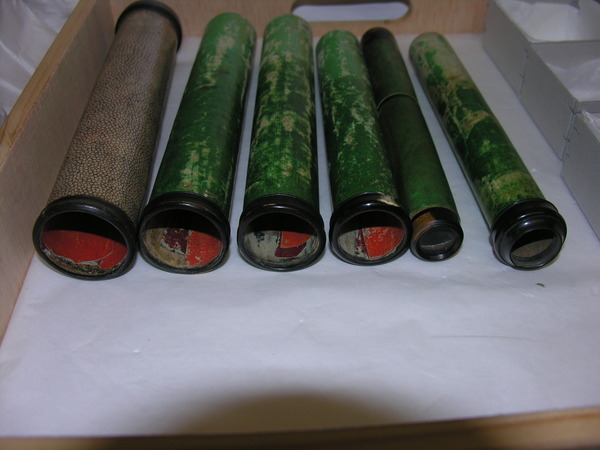

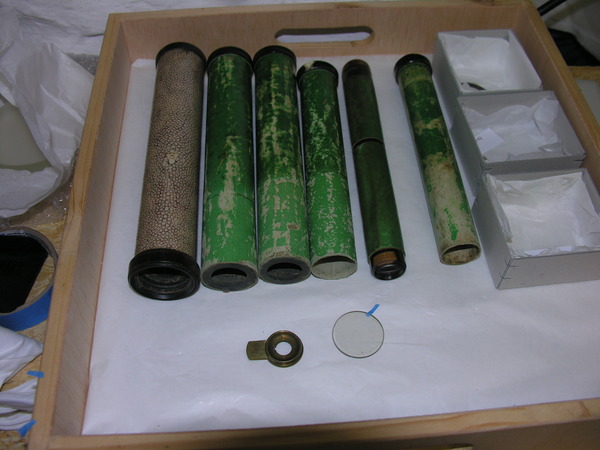

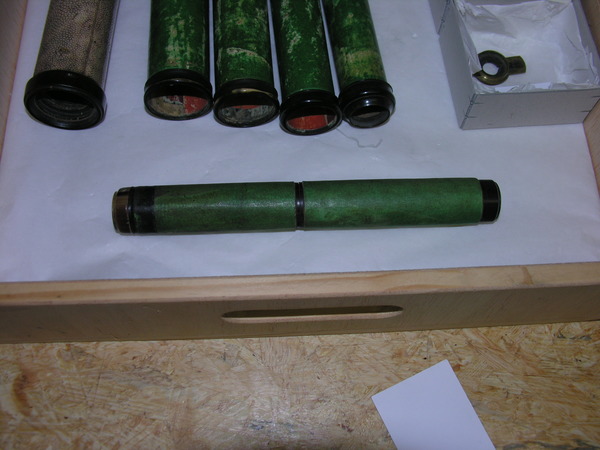

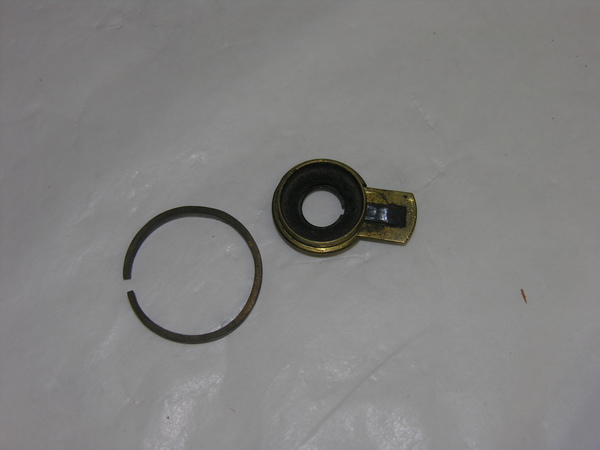

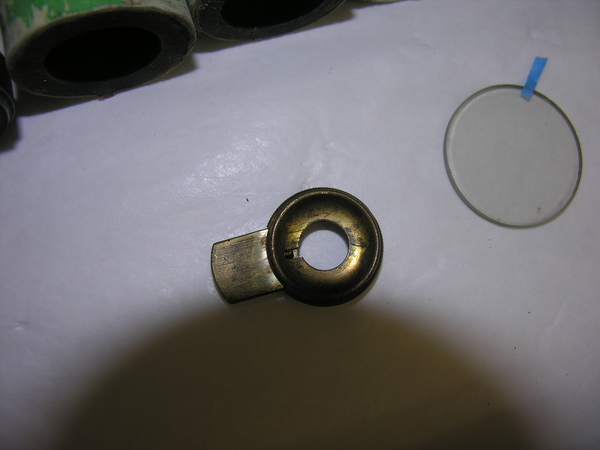

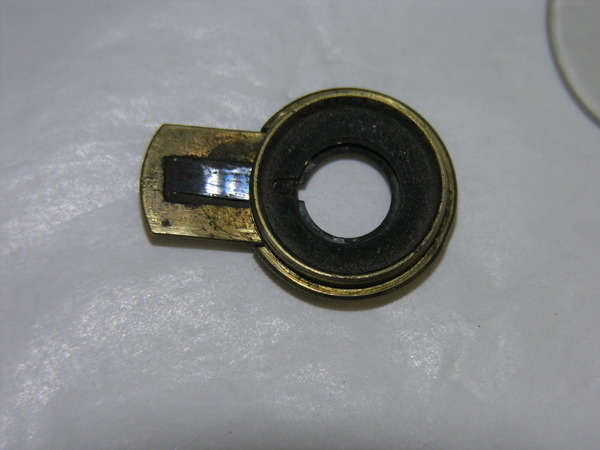

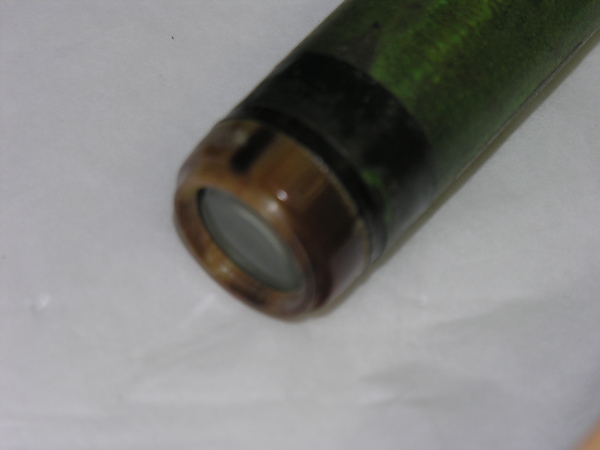

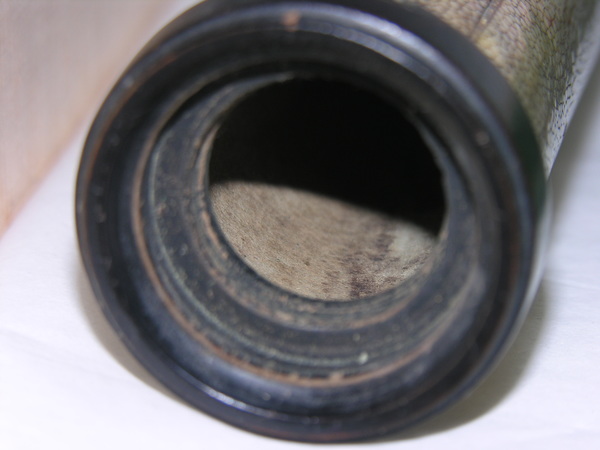

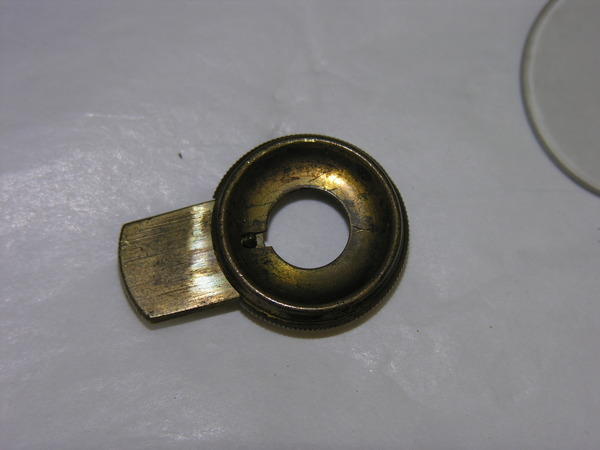

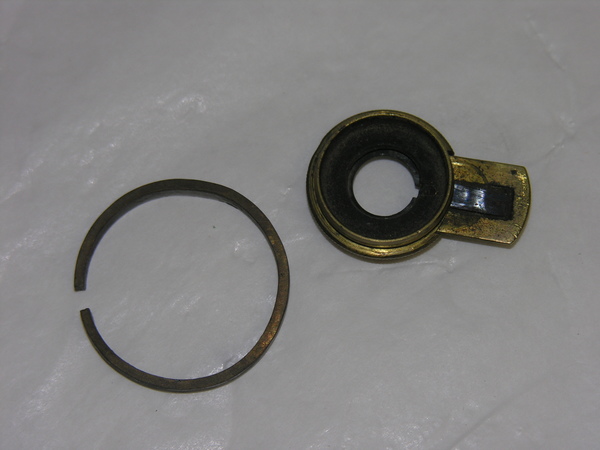

White, Galuchat style main tube. Draws covered in green vellum, with draws 1 and 2 ending in lignum vitae stops. Eyepiece may reverse, but is not so marked.

Length (open):

Length (closed):

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: singlet

Optical style

Physical style

Functional style

Materials: lignum vitae, vellum, glass

Optical/Lab Data

Drawtube data:

Drawtube notes:

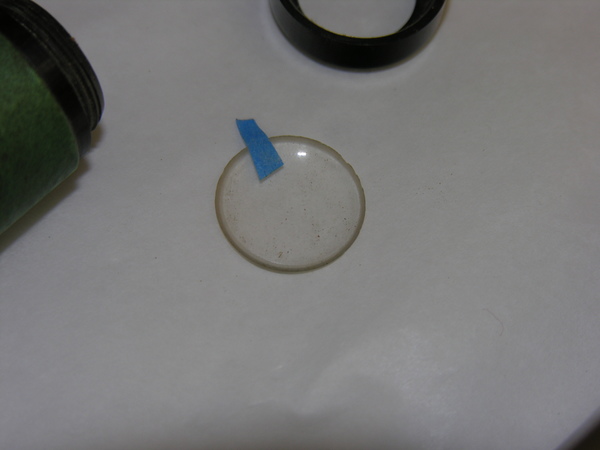

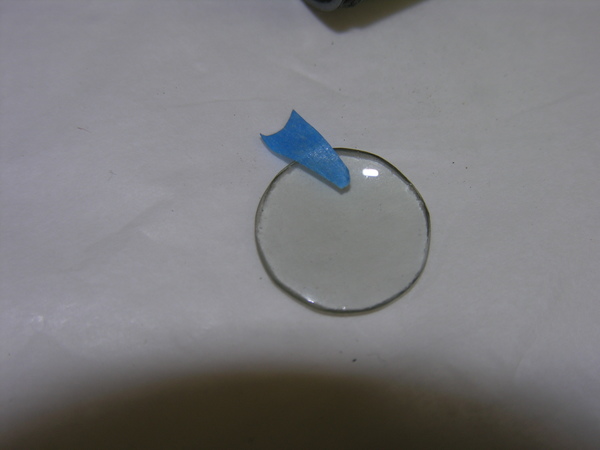

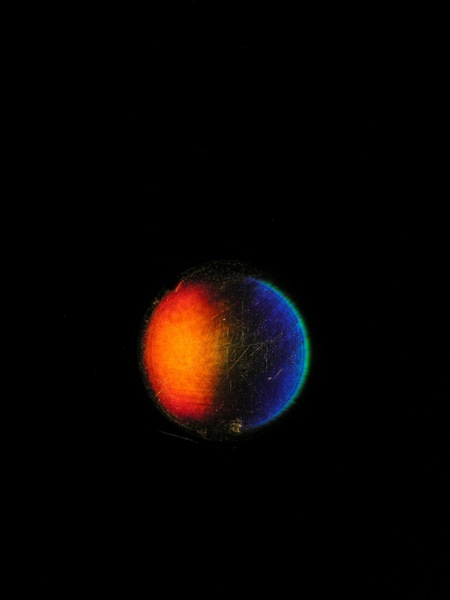

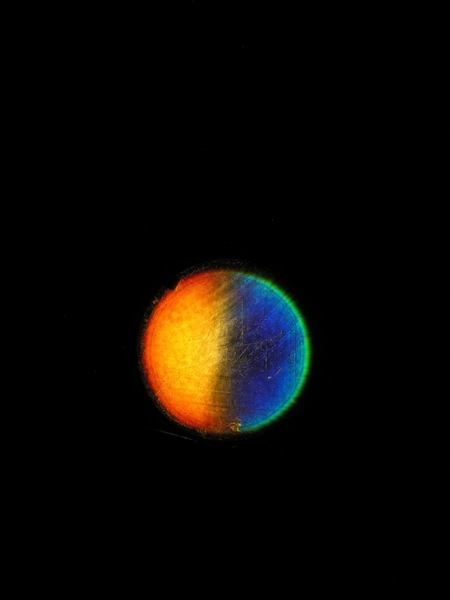

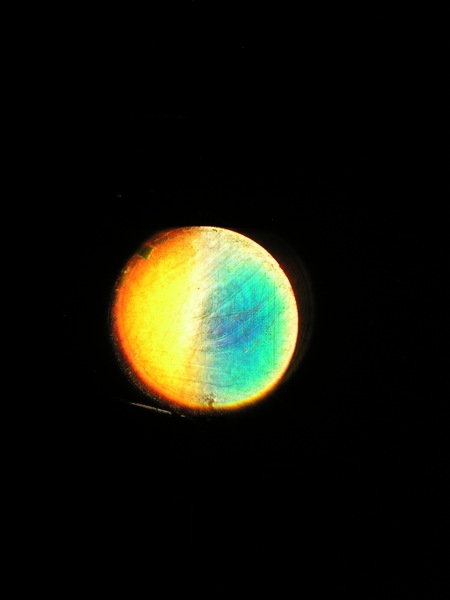

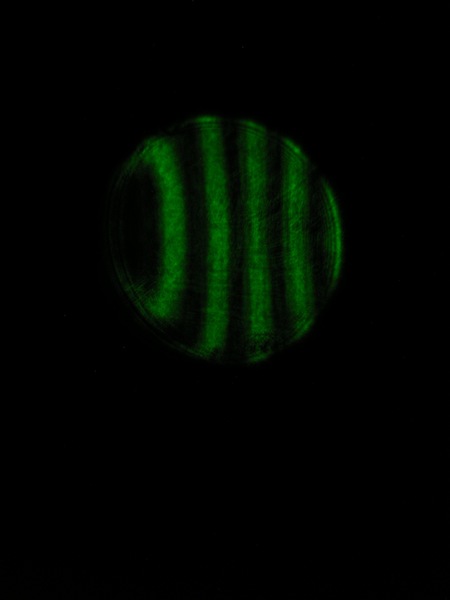

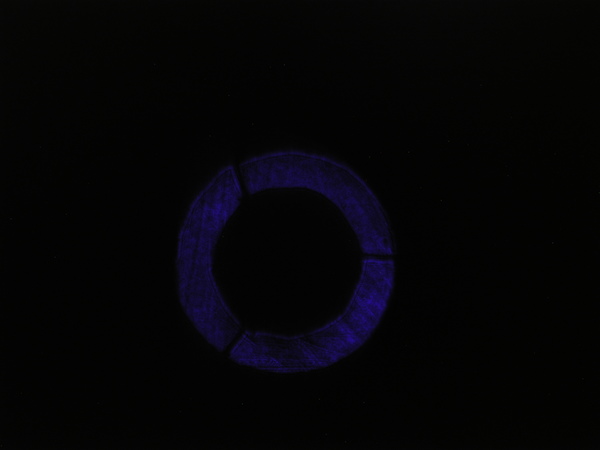

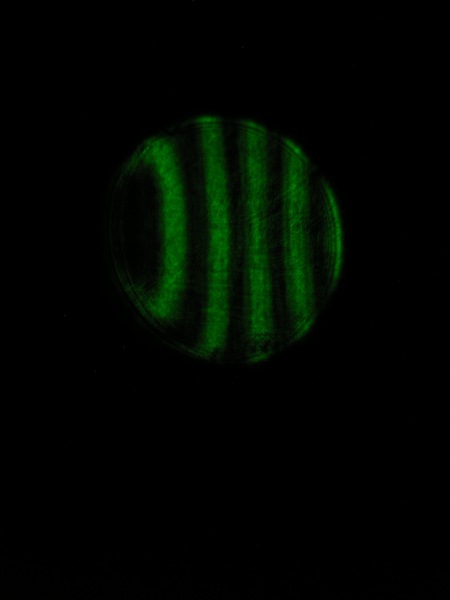

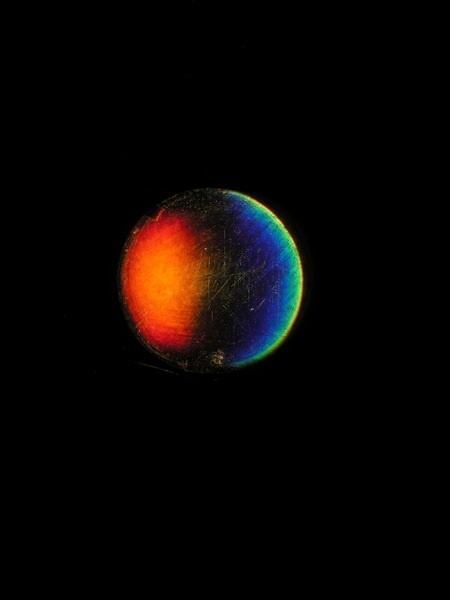

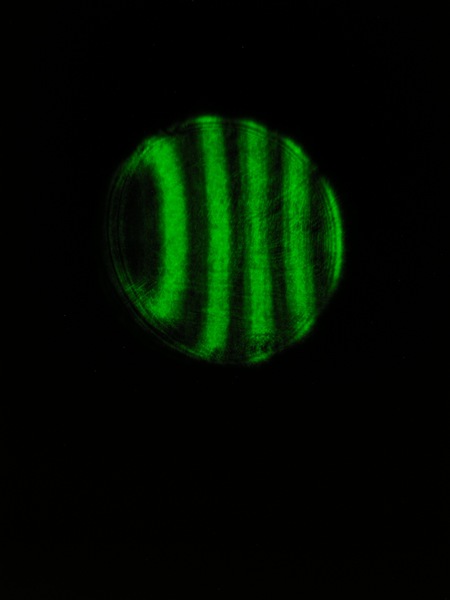

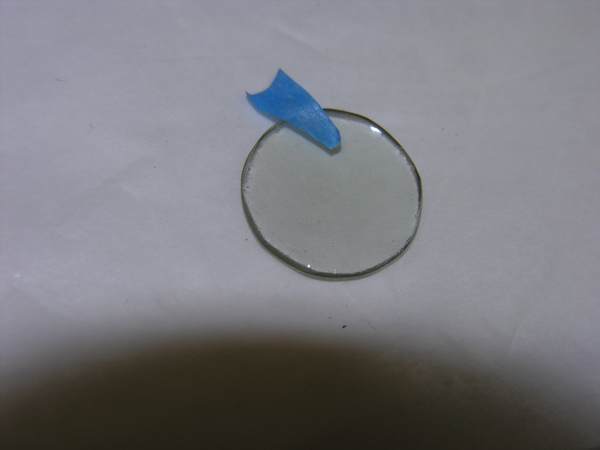

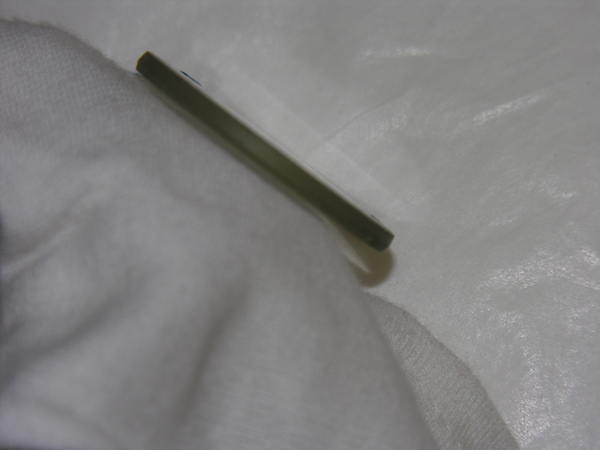

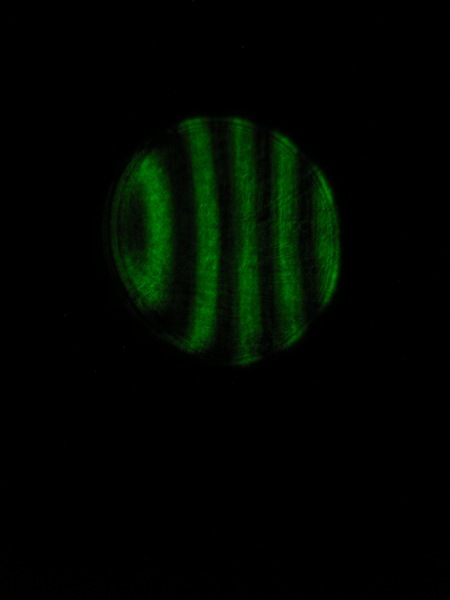

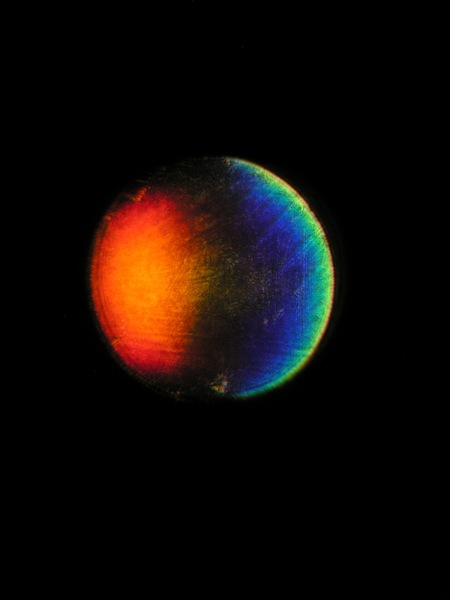

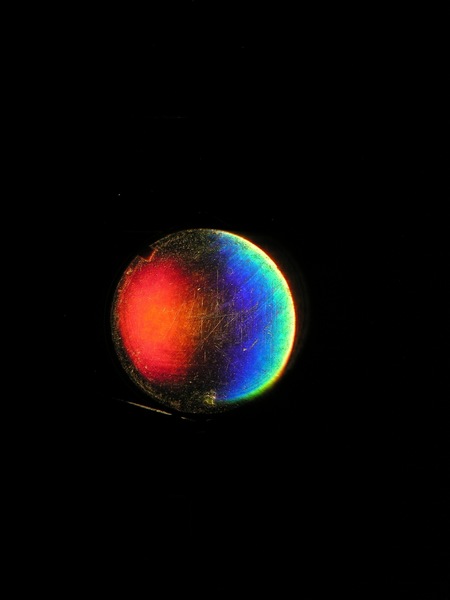

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1	1.65	1.68	1.74	575.12	3.00		26.00

Eyepieces

Notes:

Eyepiece 1

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	42.15						13.64
Lens 2	50.58		19.00	107.00	18.24
Lens 3	51.41		18.00	105.00	18.28	18.27
Lens 4	43.30		15.00		21.97	21.92
