Rudolph, J.G.
Mathematisch-Physikalischer Salon / Staatliche Kunstsammlungen Dresden

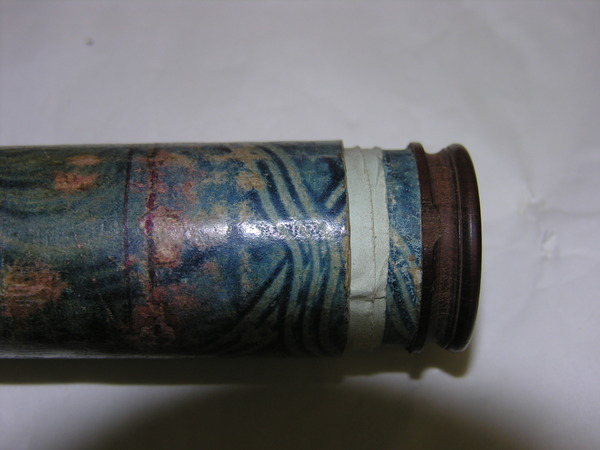

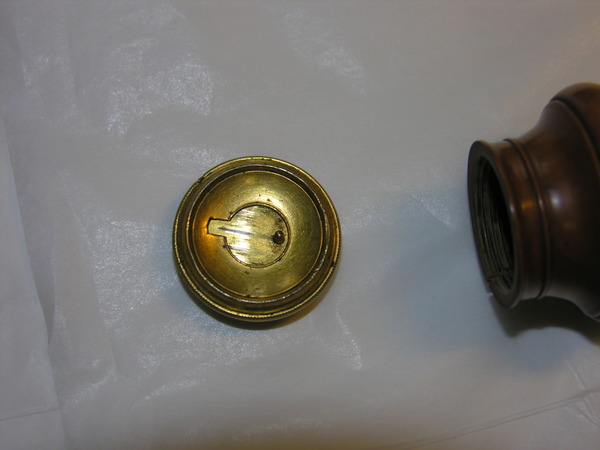

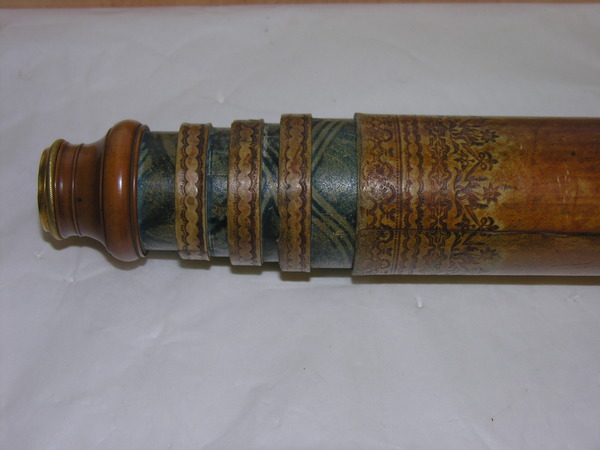

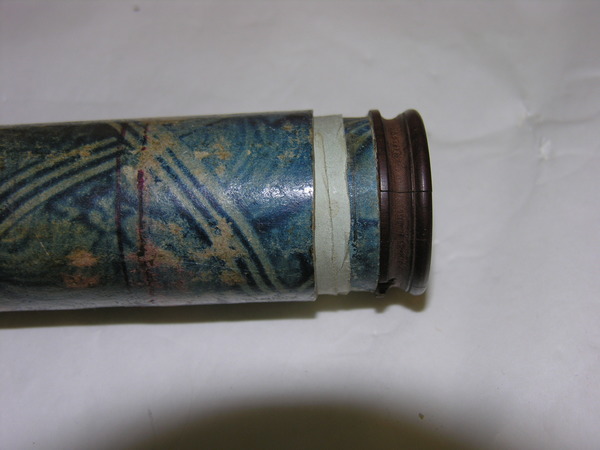

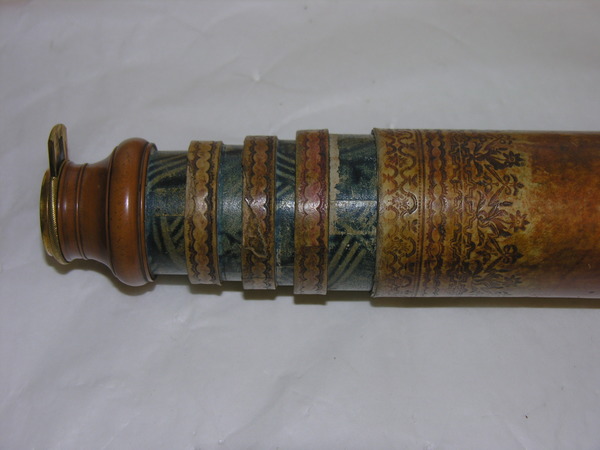

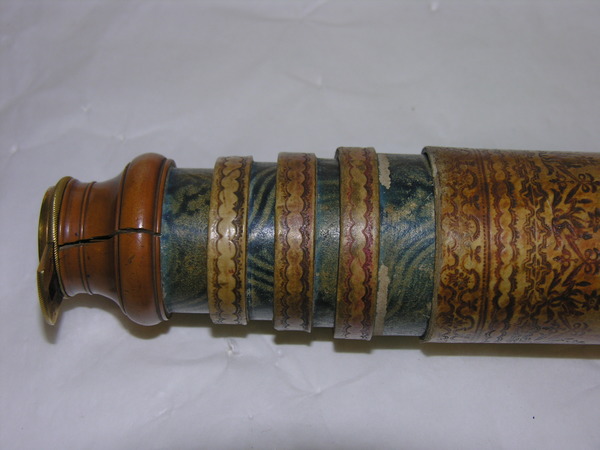

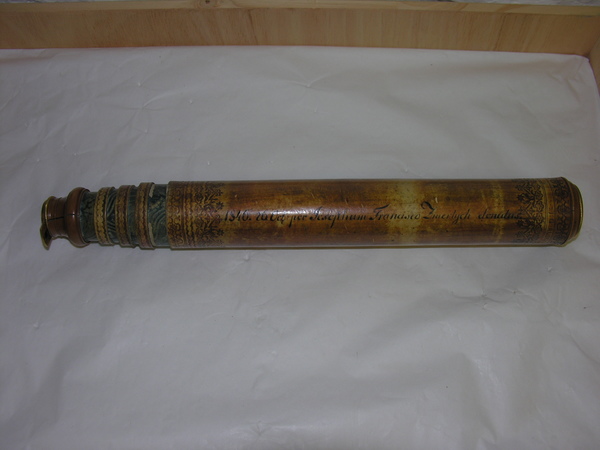

photo - whole telescope

Basic Info

Maker: Rudolph, J.G.

Year:

Year Range: -

Year Notes:

Manufacturing Location: Germany [unconfirmed]

Signature: Rudolph Dresdan 21 (lens).

Signature Notes:

Inscriptions:

No stand present.

Collection: Mathematisch-Physikalischer Salon / Staatliche Kunstsammlungen Dresden

Accession #: new 2006

Sources:

Field research.

Public Notes:

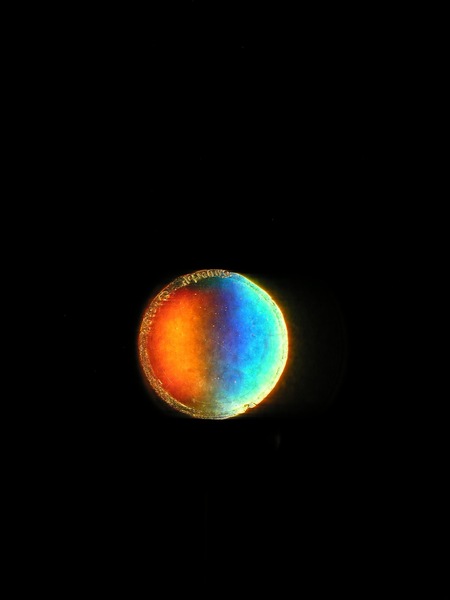

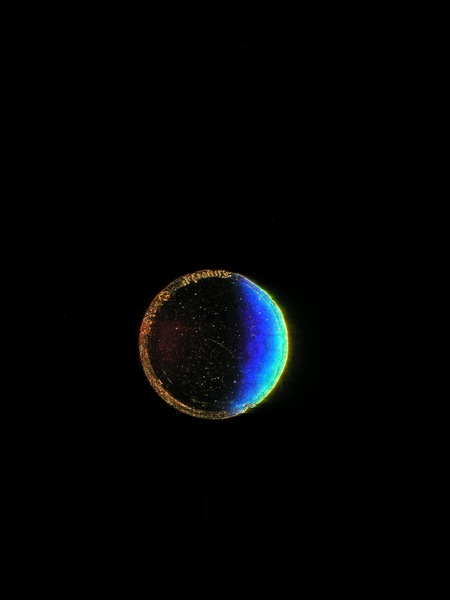

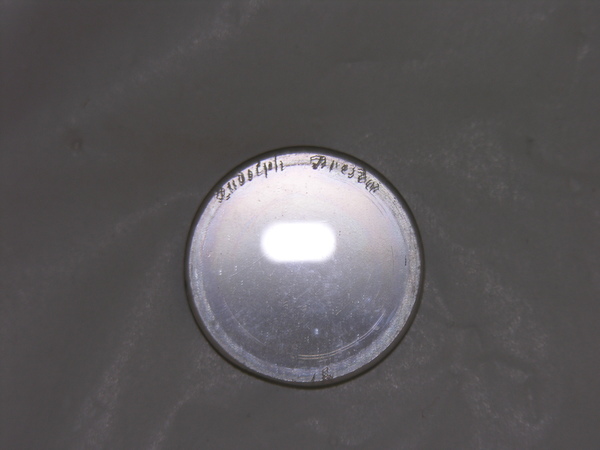

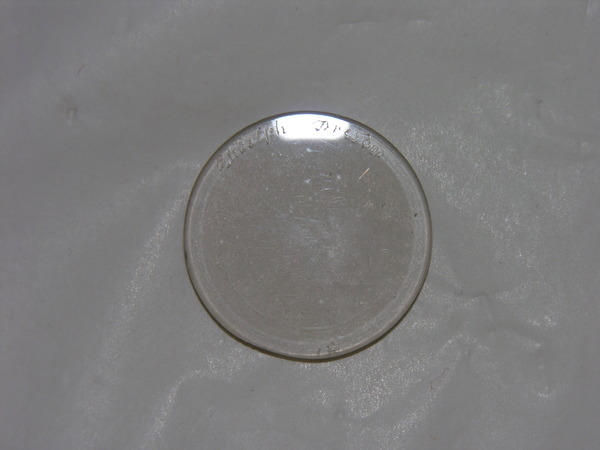

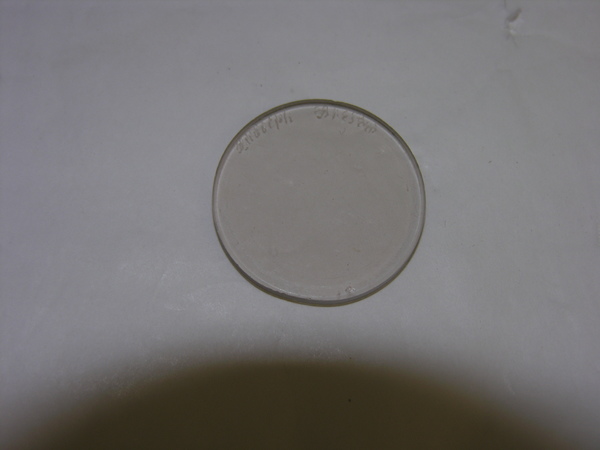

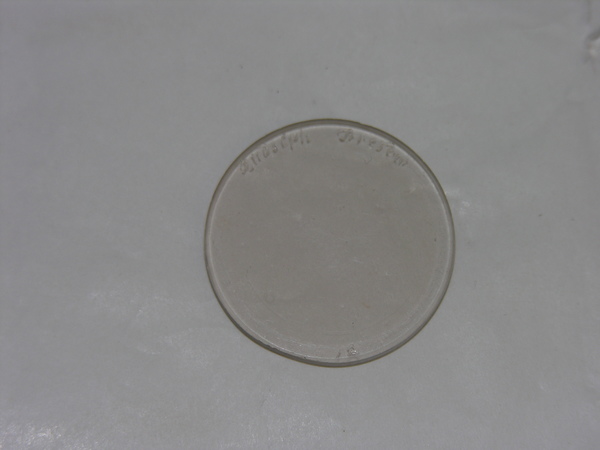

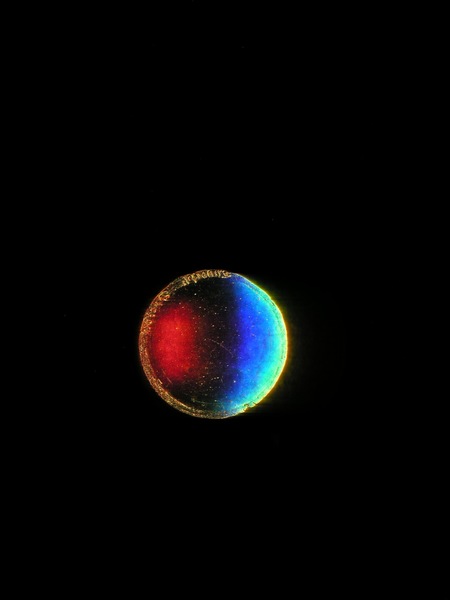

Signature on lens "Rudolph Dresdan 21"

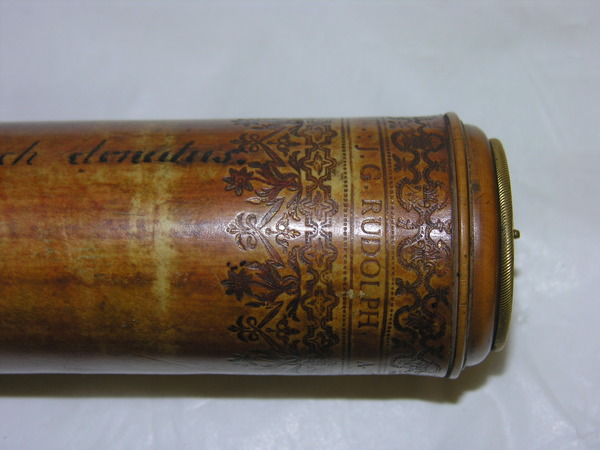

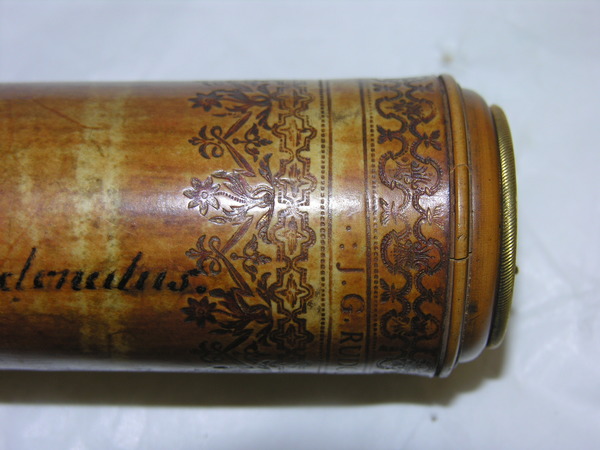

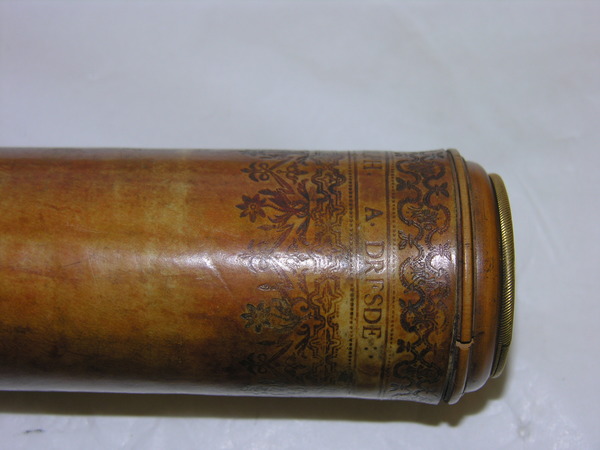

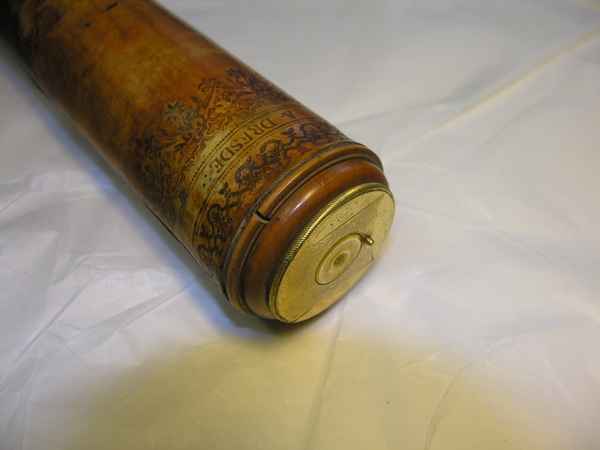

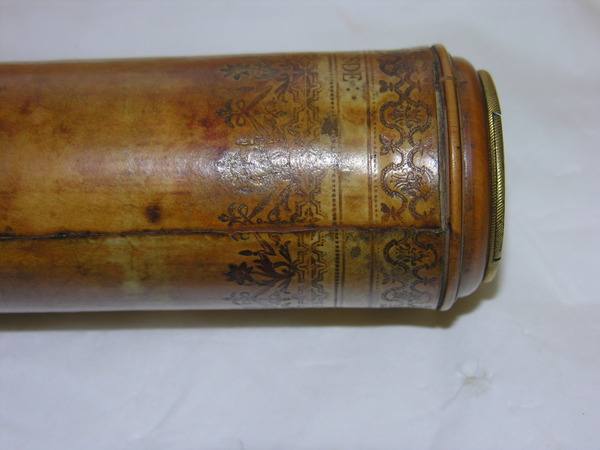

Around objective end "J.G. Rudolph. A. Dresde :."

Length (open):

Length (closed):

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: singlet

Optical style terrestrial

Physical style

Functional style

Materials:

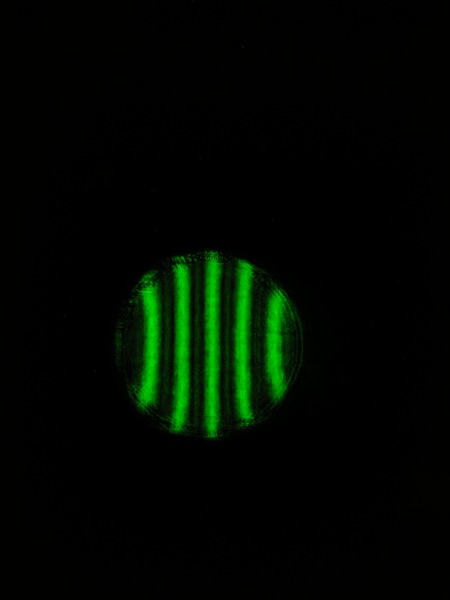

Optical/Lab Data

Drawtube data:

Drawtube notes:

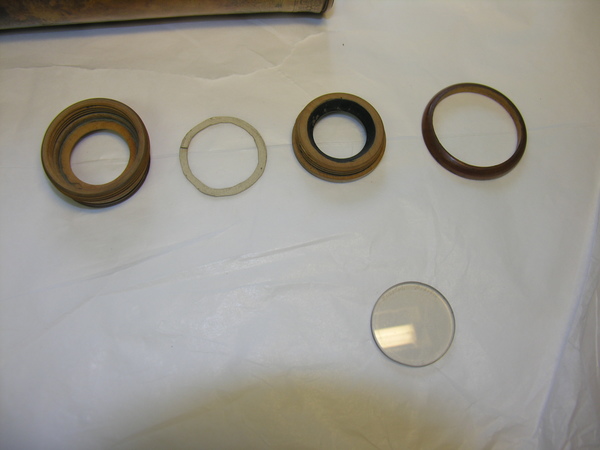

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1	1.15	1.14	1.21	824.42	3.50		25.00

Eyepieces

Notes:

Eyepiece 1

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	109.58						7.52
Lens 2					12.98
Lens 3
Lens 4
Lens 5
Lens 6

Additional Photos/Documents
