Ramsden
Mathematisch-Physikalischer Salon / Staatliche Kunstsammlungen Dresden

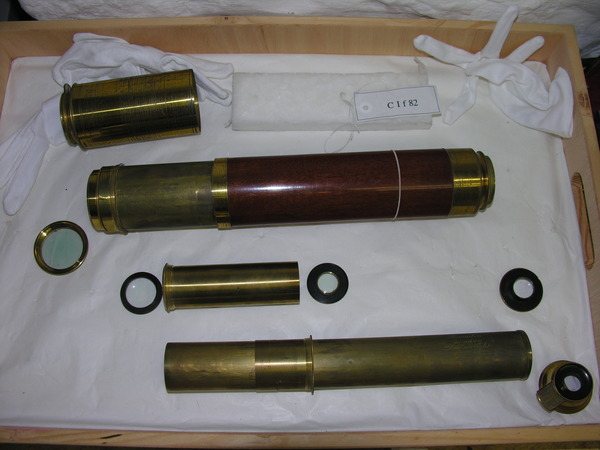

photo - whole telescope

Basic Info

Maker: Ramsden

Year:

Year Range: -

Year Notes:

Manufacturing Location: London, England

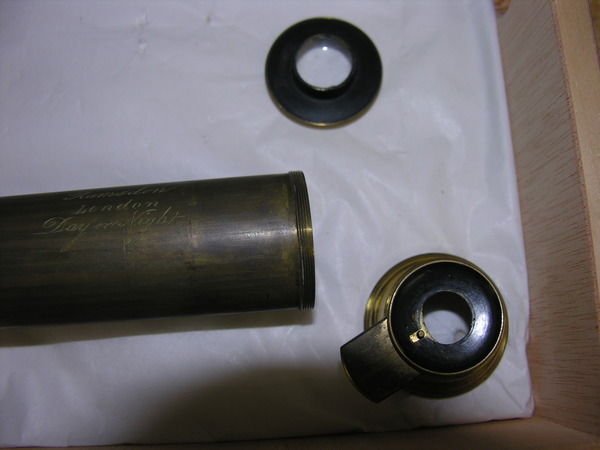

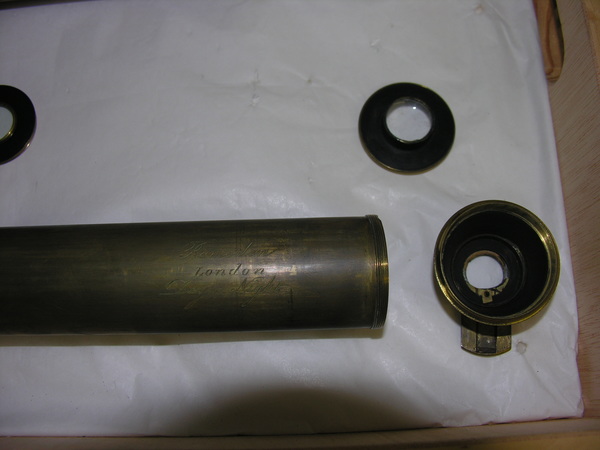

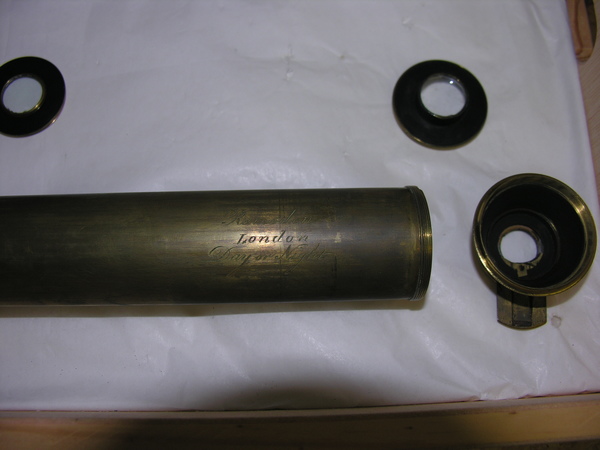

Signature: Ramsden / LONDON / Day or Night

Signature Notes:

Inscriptions:

No stand present.

Collection: Mathematisch-Physikalischer Salon / Staatliche Kunstsammlungen Dresden

Accession #: CIF 82

Sources:

Field research.

Public Notes:

Two draws. Says Day or Night but no indication of any changes needed to switch between use. Brass slider stops aperture to 29.

Length (open):

Length (closed):

F-ratio:

Exit pupil:

Object status:

Optical Basics

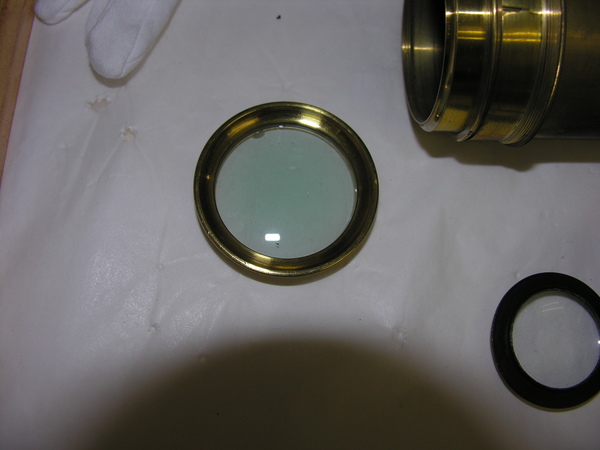

Objective type: doublet (crown forward)

Optical style

Physical style

Functional style

Materials:

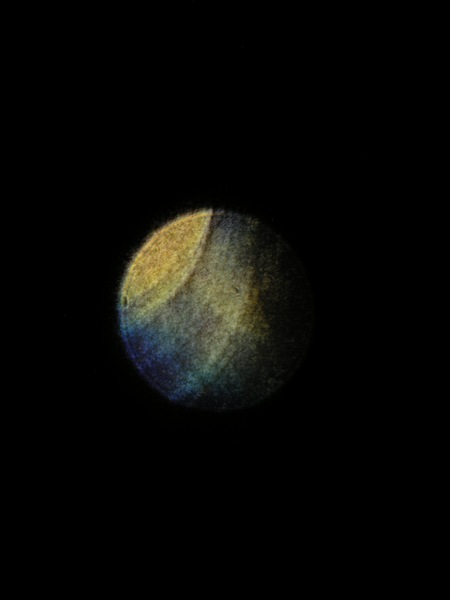

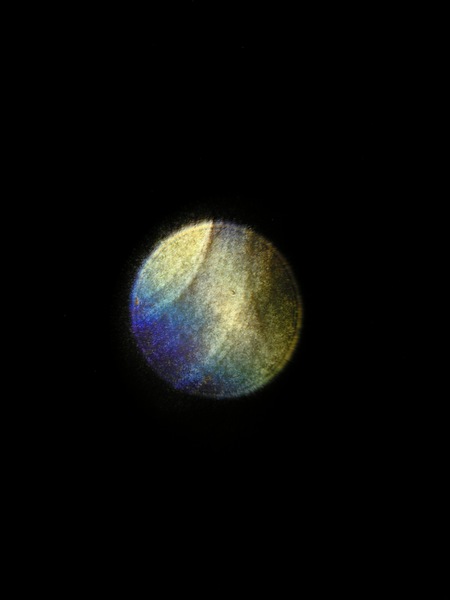

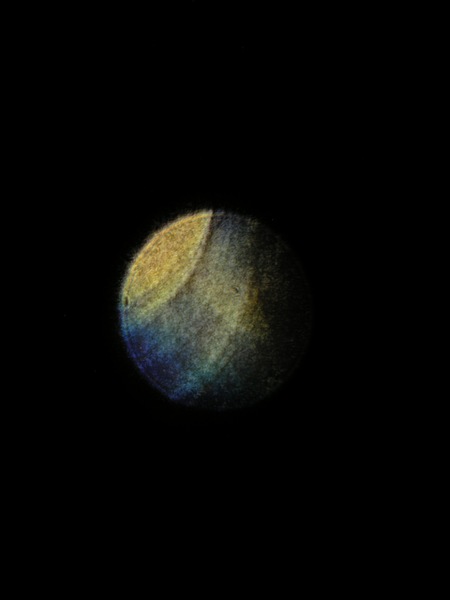

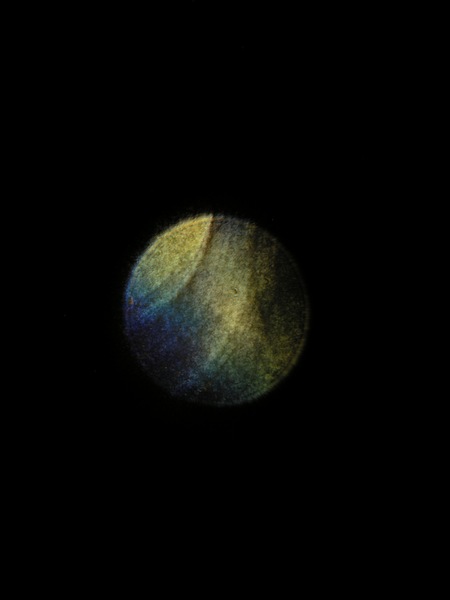

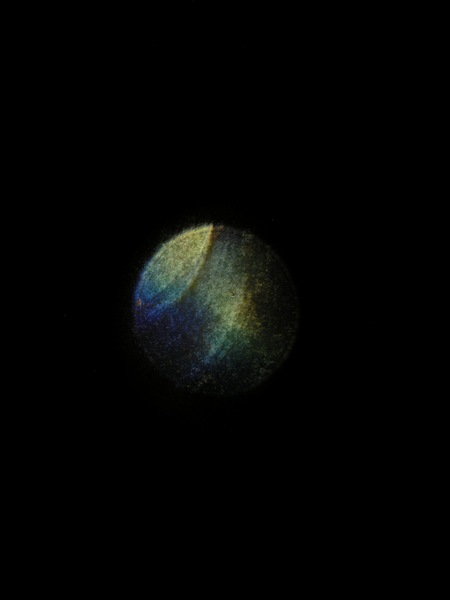

Optical/Lab Data

Drawtube data:

Drawtube notes:

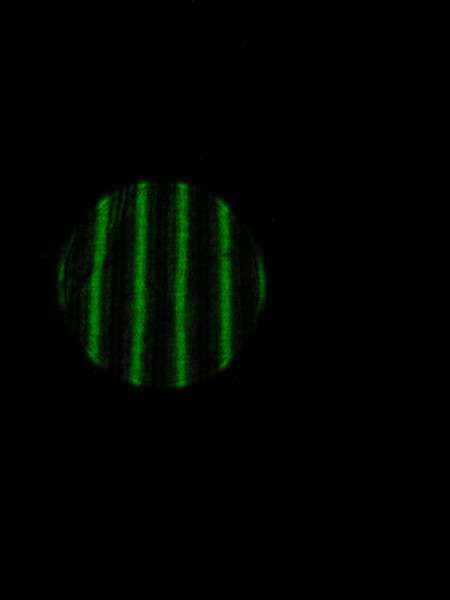

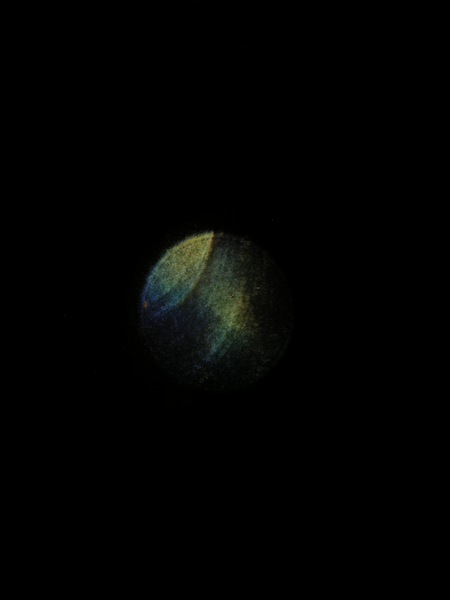

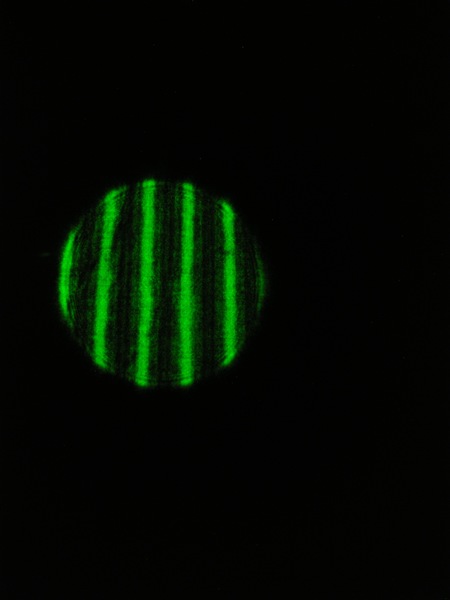

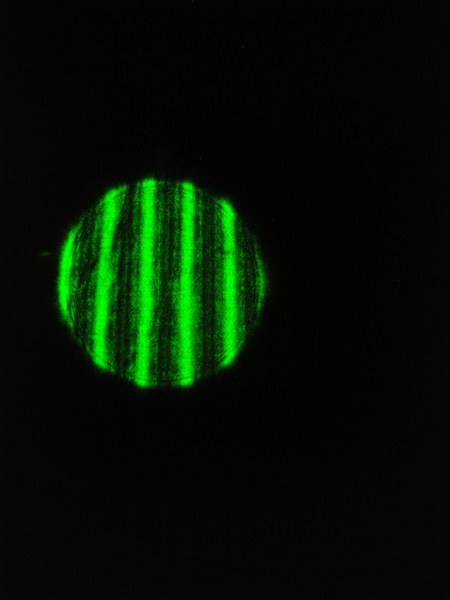

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1	7.69	-1.99	2.05	488.42	10.00		29.00

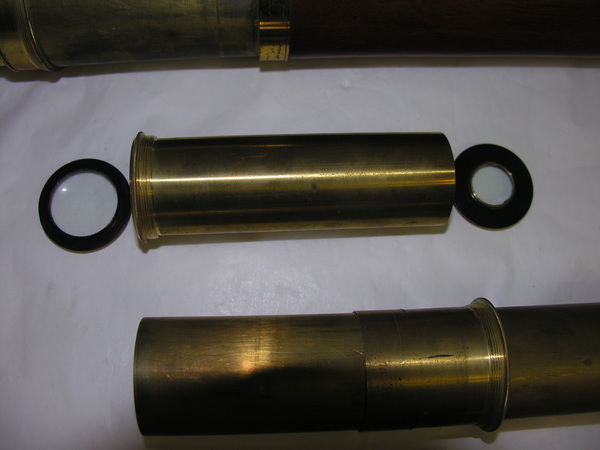

Eyepieces

Notes:

Eyepiece 1

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	112.55						6.83
Lens 2	71.47		29.00	120.00	56.34	17.35
Lens 3	76.42		18.50	120.00	2.86	43.56
Lens 4	77.85		25.00	80.00
Lens 5	47.62		19.00		31.19	4.49
