Unknown
Mathematisch-Physikalischer Salon / Staatliche Kunstsammlungen Dresden

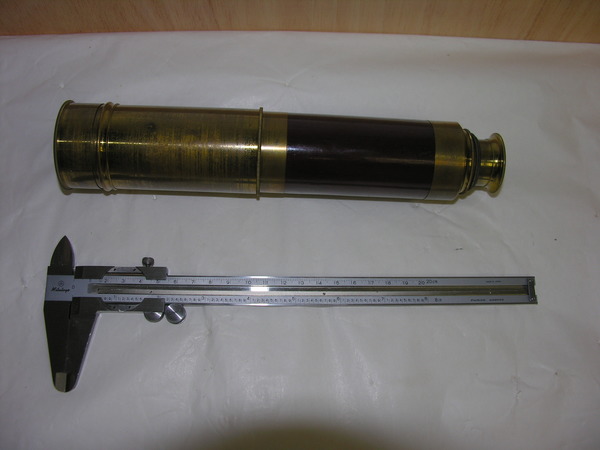

photo - whole telescope

Basic Info

Maker: Unknown

Year:

Year Range: -

Year Notes:

Manufacturing Location:

Signature:

Signature Notes:

Inscriptions:

No stand present.

Collection: Mathematisch-Physikalischer Salon / Staatliche Kunstsammlungen Dresden

Accession #:

Sources:

Field research.

Public Notes:

First eyepiece: "Umkehr"

Length (open): 750

Length (closed): 245

F-ratio:

Exit pupil:

Object status:

Optical Basics

Objective type: doublet (crown forward)

Optical style

Physical style

Functional style

Materials:

Optical/Lab Data

Drawtube data:

Drawtube notes:

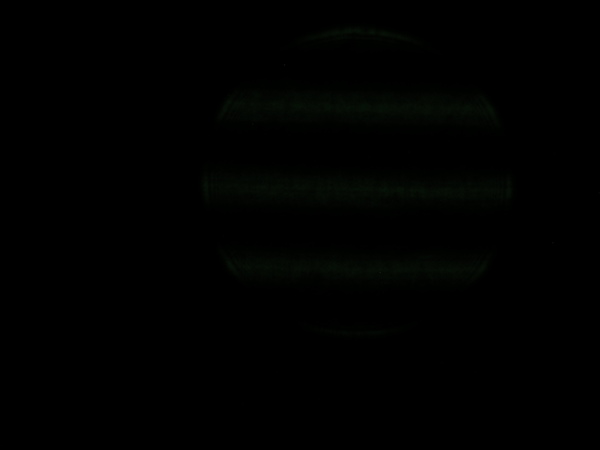

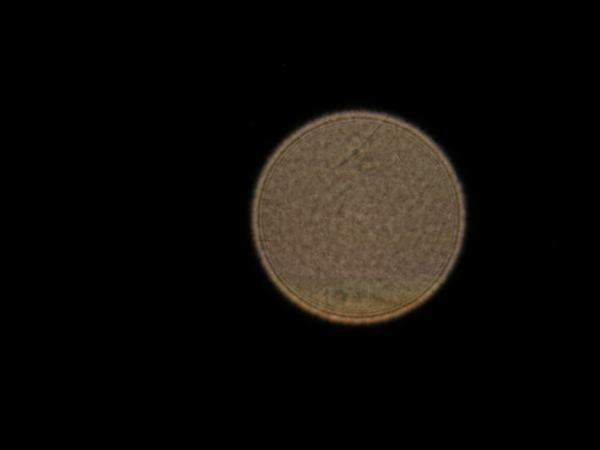

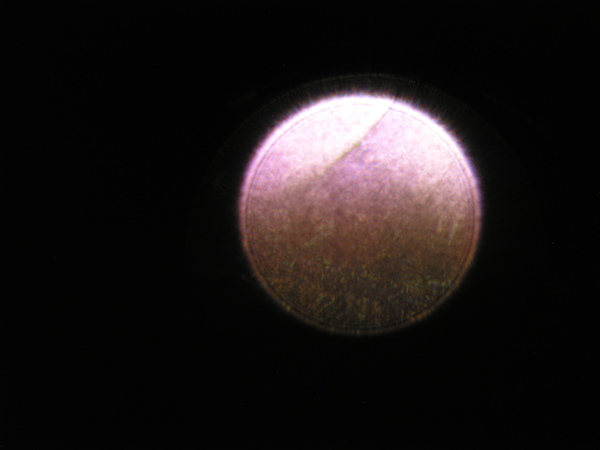

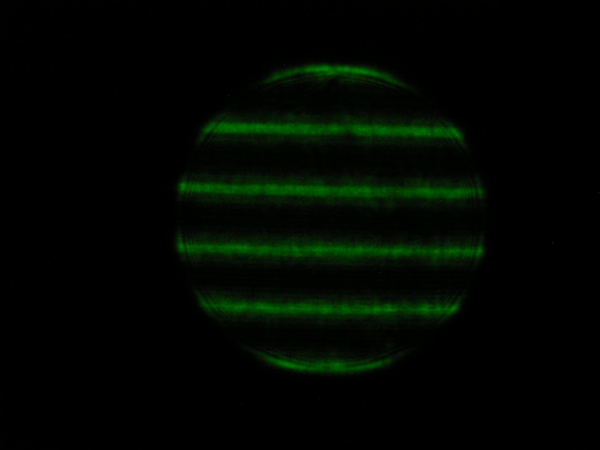

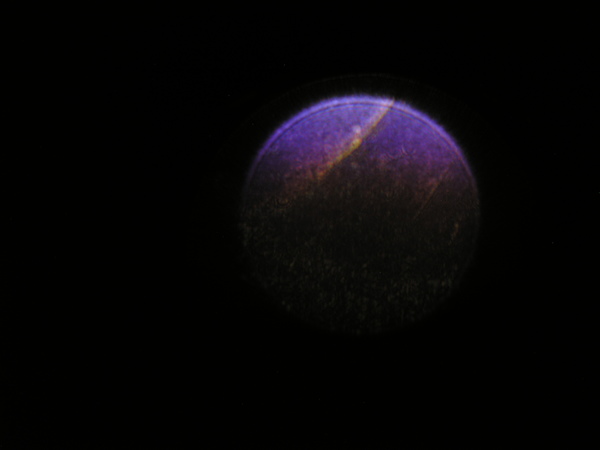

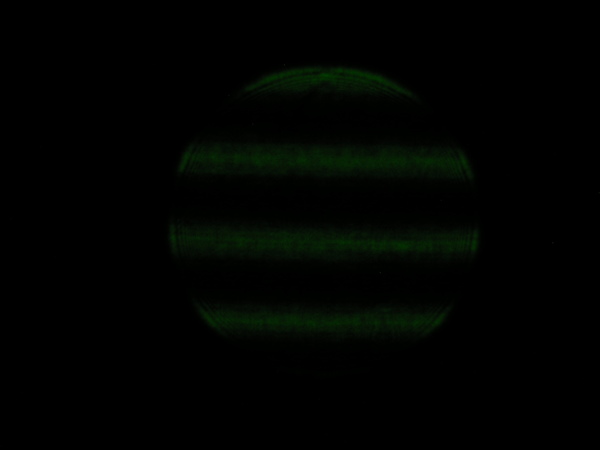

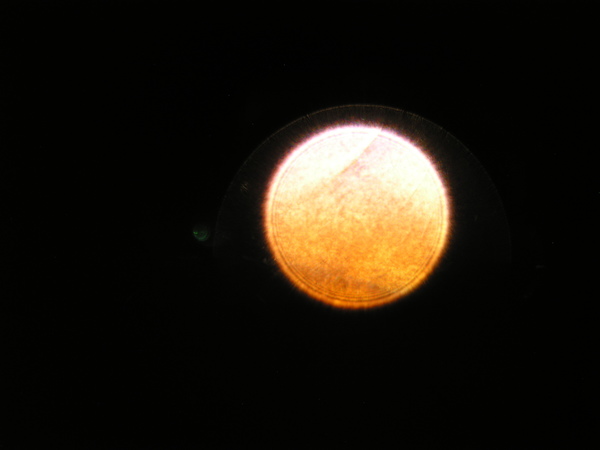

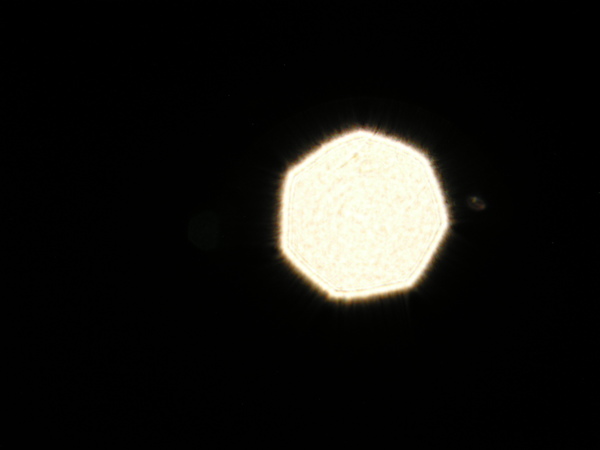

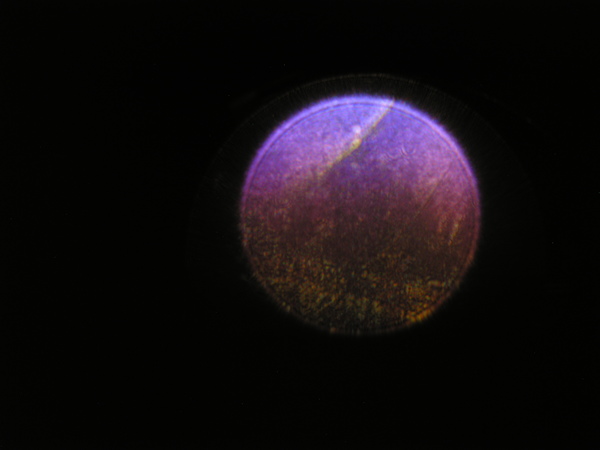

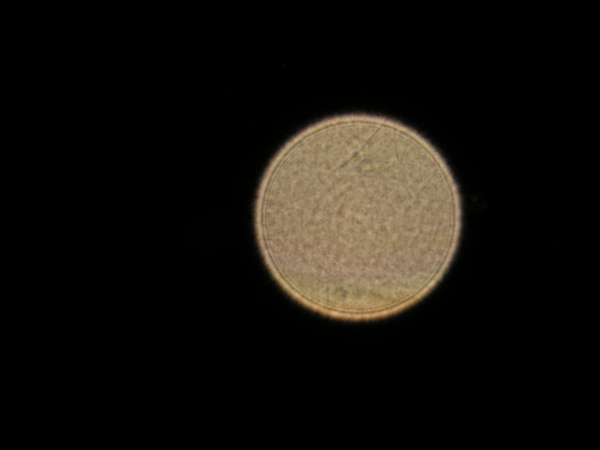

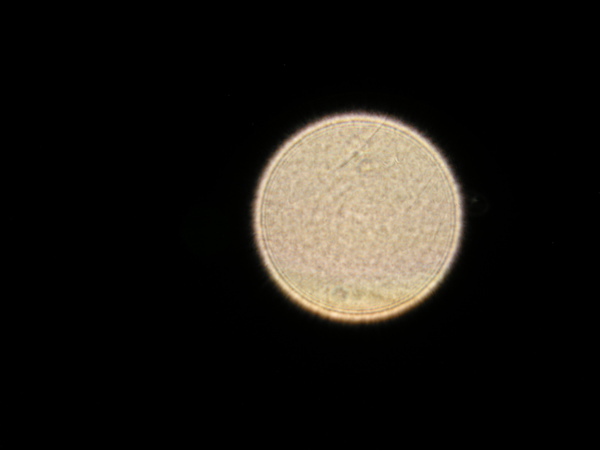

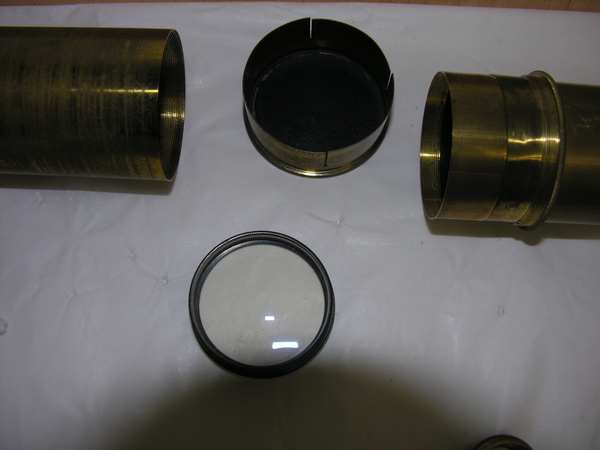

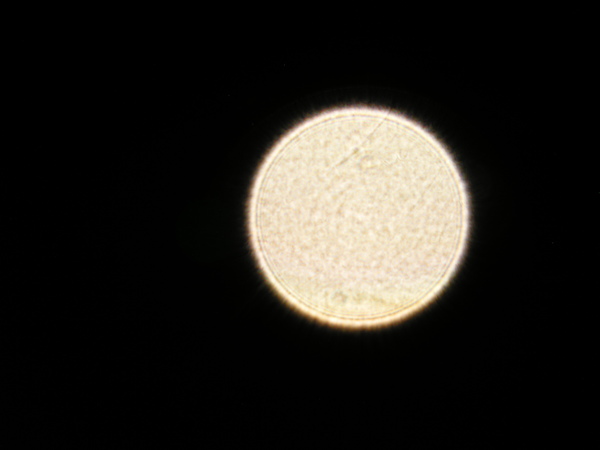

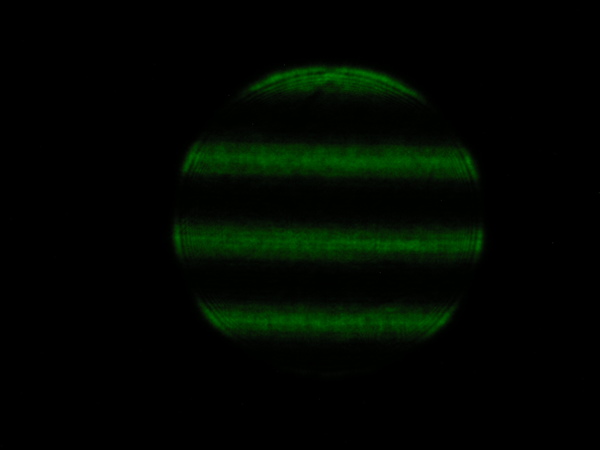

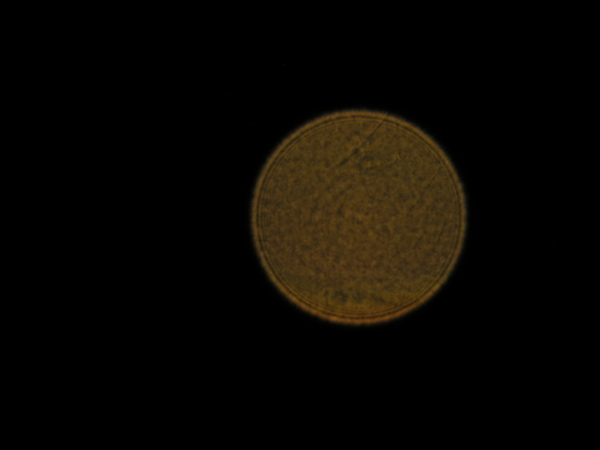

Objective Data

	C_A curvature (diopters):	C_B curvature (diopters):	P_D lens power (diopters):	f_D focal length (mm):	t thickness (mm):	free aperture (mm):	full aperture (mm):	nD refractive index:	ν Abbe No.:
Lens 1	46.07	0.89	2.25	444.67			40.00

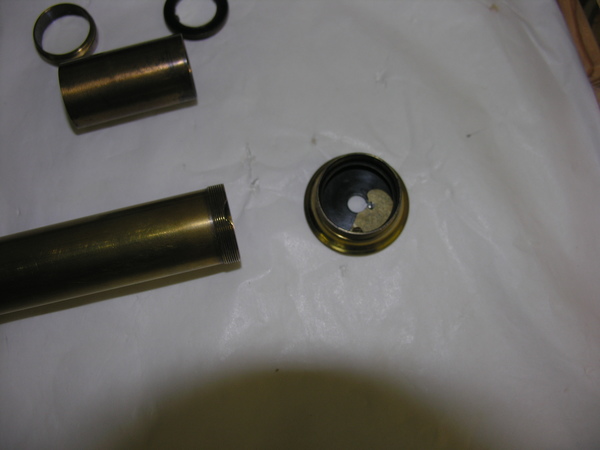

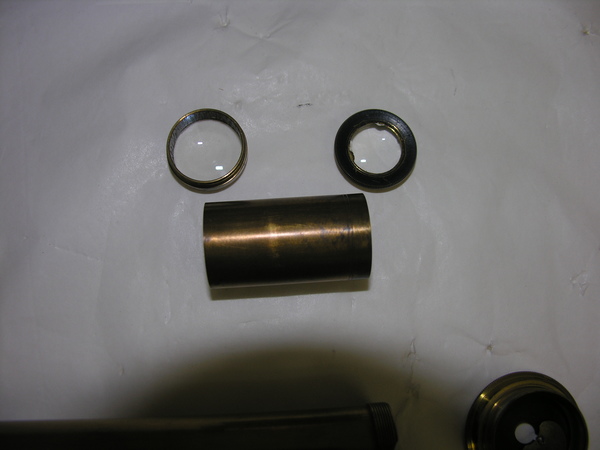

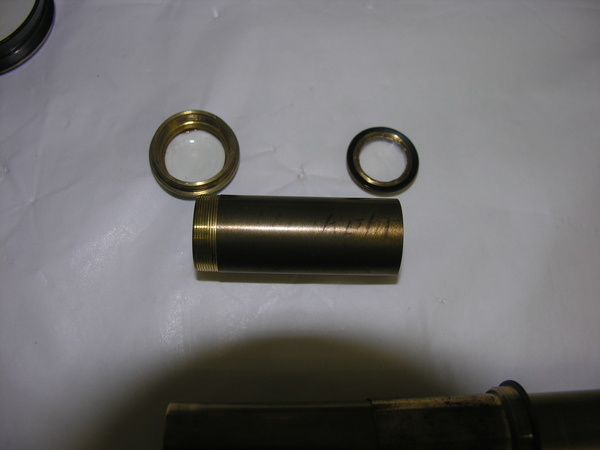

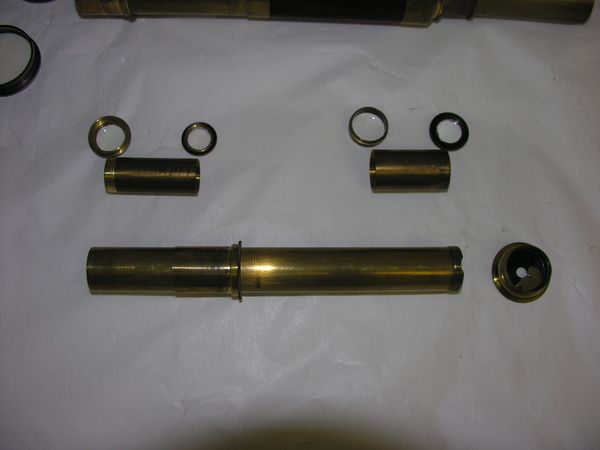

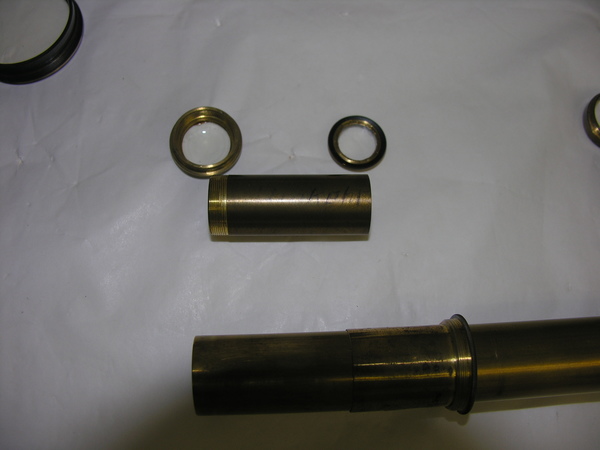

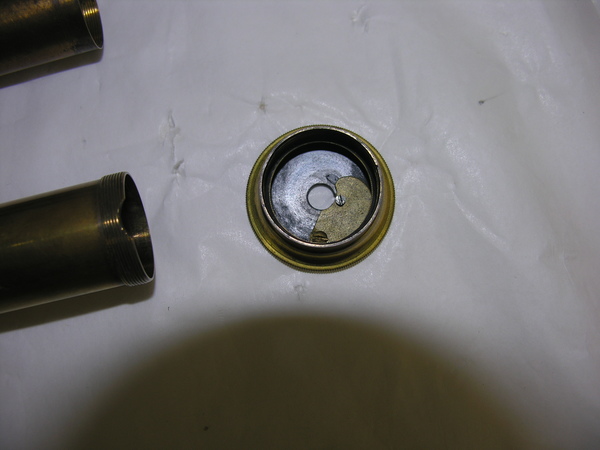

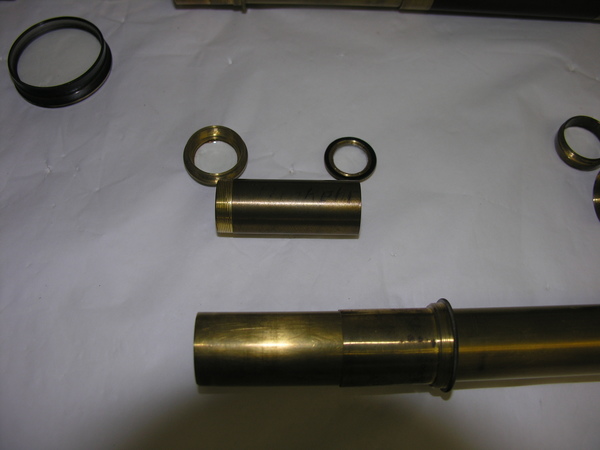

Eyepieces

Notes:

Eyepiece 1

	f_D focal length (mm):	free aperture (mm):	full aperture (mm):	s spacing (mm):	C_A curvature (diopters):	C_B curvature (diopters):	M magnification:	FOV field of view (degrees):	Thickness:
Lens 1	18.54						23.98
Lens 2			18.00	56.00	22.87	22.99
Lens 3			14.00	103.00	18.81	18.75
Lens 4			21.00	50.00	18.78	18.78
Lens 5			16.00		29.51	29.60
